[x3d-public] Mantis Issue 1265 Text Sizing Example for X3D meeting Jan 21 2022

[vmarchetti at kshell.com]

> On Jan 20, 2022, at 7:18 PM, Brutzman, Donald (Don) (CIV) <brutzman at nps.edu> wrote:
>
> The X3D Working Group meets each Friday at 0800-0900 pacific time.  Videoconference Connectivity:
>
> https://us02web.zoom.us/j/81634670698?pwd=a1VPeU5tN01rc21Oa3hScUlHK0Rxdz09 <https://us02web.zoom.us/j/81634670698?pwd=a1VPeU5tN01rc21Oa3hScUlHK0Rxdz09>
> https://zoom.us/j/148206572 <https://zoom.us/j/148206572>  Password 483805
> https://www.web3d.org/member/teleconference-information <https://www.web3d.org/member/teleconference-information>
>
> All inputs welcome.  Agenda follows.

> Request review of major issue by Nicholas:
> Mantis 1265: Text size clarification, relative to baseline
> https://www.web3d.org/member-only/mantis/view.php?id=1265 <https://www.web3d.org/member-only/mantis/view.php?id=1265>
>

For consideration of the Mantis 1265 issue. Attached to this email is a X3D file which shows a simple 2 line text block specified with spacing and size set to the defaults of 1.0.
Also drawn independently are lines at  Y=-1, Y=-2 which should be  considered the baselines for each line of text, the line at Y=0 help identify the global coordinate system origin:
The left sides of each baseline are at X=0

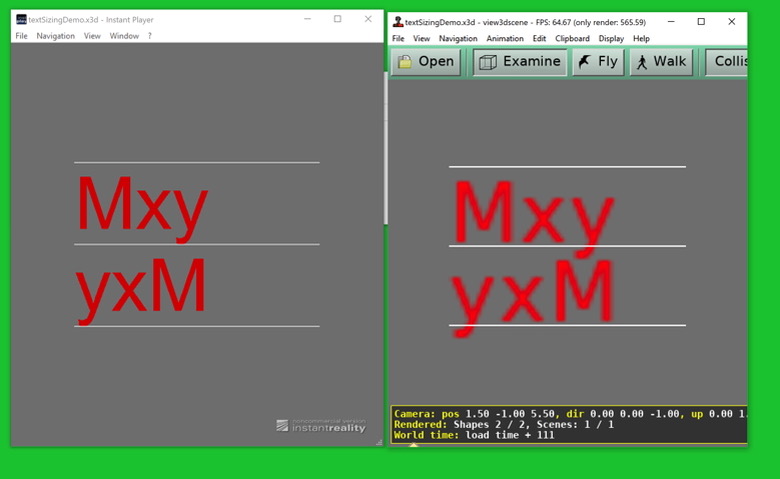

Also attached below is a screenshot of this file rendered in InstantPlayer 2.8 and view3dscene at version 3.19.0 ; both on Windows 10.

The link at https://www.kshell.com/pages/Mantis1265/ <https://www.kshell.com/pages/Mantis1265/> gives links to X3DOM and X-ITE rendering of this file as well.

Vince Marchetti
