[x3d-public] allowing full capabilities for X3D node reuse with Inline EXPORT/IMPORT AS/USE
Don Brutzman
don.brutzman at gmail.com
Sun Oct 19 13:20:36 PDT 2025
Holger this is super. Your support for *Inline/IMPORT AS providing a node
reference (similar to USE node references) works great. 👍*
Changing from a copy of JinLOA2 HAnimHumanoid to an Inline/IMPORT node
reference reduced file size from 346K to 22K. Of course it makes
maintaining a master copy providing best practices much easier too. *👍**👍*
*👍**👍*
I have updated several more HAnimHumanoid modes and successfully tested
Inline/IMPORT AS support for the HAnimPose node prototype with each of
them: JinLOA1, JinLOA2, JinLOA3, and JinLOA4. All good.
- X3D Example Archives: Humanoid Animation, Characters
- HAnim Characters are HAnim2 X3D4 models conforming to version 2 of the
Humanoid Animation (HAnim) International Standard, ISO—IEC 14774:2019.
- https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters
- <meta name='info' content='This scene includes an EXPORT statement to
simplfy reuse of a large, complex HAnimHumanoid model by other X3D scenes.
'/>
- Humanoid Animation X3D Examples Archive, Characters, Jin LOA 1
<https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA1Index.html>
- Humanoid Animation X3D Examples Archive, Characters, Jin LOA 2
<https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2Index.html>
- Humanoid Animation X3D Examples Archive, Characters, Jin LOA 3
<https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA3Index.html>
- Humanoid Animation X3D Examples Archive, Characters, Jin LOA 4
<https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA4Index.html>
- for instance, <EXPORT localDEF='hanim_JinLOA4
<https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA4.html#hanim_JinLOA4>
' AS='JinLOA4'/> on line 2671
<https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA4.html#2671>
Am further happy to report that the prototype for *HAnimPose node **appears
to be working fully*, tested online with X_ITE, online with Playground, and
locally using Sunrize for Windows. 😀
- X3D Example Archives: Humanoid Animation, Poses, HAnim Pose Prototype
- Define an experimental new node to simply capture a single pose for an
HAnimHumanoid model. Expected usage is to allow HAnimHumanoid to contain
multiple Pose nodes which can be activated and composed.
-
https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Poses/HAnimPosePrototypeIndex.html
- with console log at
https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Poses/HAnimPosePrototype.console.txt

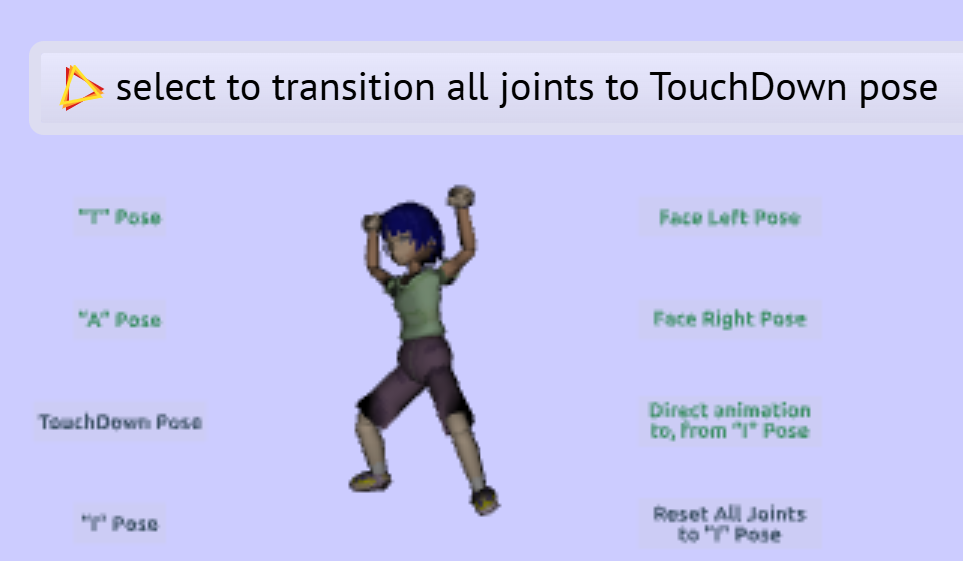

[image: image.png]

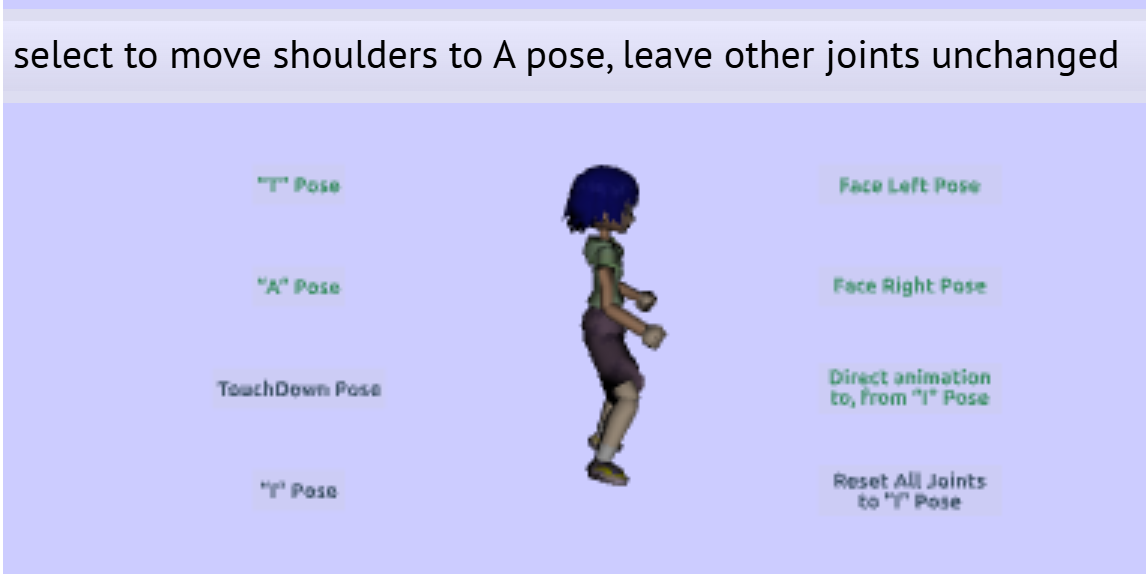

[image: image.png]
Big progress all coming together today, hooray! Thanks again to you and to
everyone contributing, all efforts have value.
Have fun with X3D and HAnim!
all the best, Don
--
X3D Graphics, Maritime Robotics, Distributed Simulation
Relative Motion Consulting https://RelativeMotion.info
On Sun, Oct 19, 2025 at 2:46 AM Holger Seelig <holger.seelig at yahoo.de>
wrote:
> Just released new versions of X_ITE and Sunrize, which will now include
> USE before DEF, which can be very useful when editing your files in a
> text editor.
>
> In addition, imported nodes can now be referenced with USE in the scene
> graph using their imported name. These are major changes that greatly
> expand the capabilities of X3D.
>
> All of this can be edited in Sunrize to make your life easier so you can
> enjoy X3D.
>
> Besides this, there are also other improvements and bug fixes.
>
> Best regards,
> Holger
> —
> Holger Seelig
> holger.seelig at yahoo.de
>
>
> Am 18.10.2025 um 21:59 schrieb Don Brutzman <don.brutzman at gmail.com>:
>
> Gee Doug, design sounds pretty thorough!
>
> Holger, the following HAnimPose prototype example + ProtoInstance nodes
> seem to be fully working now.
> -
>
> https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Pose/HAnimPosePrototypeIndex.html
>
> However I have not been able to get the IMPORT/Inline HAnimHumanoid
> replacement to work, as an alternative to copying the HAnimHumanoid
> completely…
>
> Wondering if my conversion stylesheets are not iinvoking your latest X_ITE
> correctly?
>
> all the best, Don
> --
> Don Brutzman
> X3D graphics, virtual worlds, Navy robotics
> https://faculty.nps.edu/brutzman
>
>
> On Fri, Oct 17, 2025 at 09:10 GPU Group <gpugroup at gmail.com> wrote:
>
>> Thanks again Holger, the proxy idea might work in freewrl.
>> -Doug
>> more..
>> Recursive Addressing and Node Status Table:
>> Use-Case: Inlines can inline and pass-through nodes via import + export.
>> - but each Inline can un-export or un-import a node
>> - script nodes can delete nodes in executionContext
>> Recursive Addressing:
>> When recursing from the main scene, a getNode(inode) funcion would check
>> current import, Inline.loaded, export, node deleted? and so on through
>> layers of inlines in what I'll call recursive addressing
>> - the recursive addressing would be applied when traversing the
>> scenegraph to draw a node, and when routing, would be applied at each end
>> of the route
>> - recursion bottoms out when a node is 'unresolved' or it gets to a
>> specific node (vs intermediary proxies)
>> NST node status table::
>> - MFNode and SFNode fields would hold integer indexes into a table of
>> (node or proxy address) aka NST node status table, which would be globally
>> available, and not garbage collected until the browser shuts down, and
>> putting a null for the entry when a node is deleted, but not re-using the
>> table entry for the life of the browser run. This would avoid the need for
>> hunting down references to a node that is being deleted. Any proxies
>> pointing to a node would go through the NST to get the address, and if null
>> would not draw/route.
>> - so when an Inline is unloaded, and all its nodes deleted, any
>> main-scene proxies pointing at imported nodes would go through the NST
>> IMPORT and EXPORT tables in each executionContext
>> - proxies would have an index into the table for themselves, and when
>> un-imported or un-exported (through SAI) a flag in the table would be set
>> Option: all nodes could be wrapped with a proxy, or just use proxies as
>> needed
>> During parsing, routes would not resolve to field ;memory address
>> end-points, but rather DEFname + fieldname.
>> - during routing, on the first pass, a long lookup getNodeB(string
>> DEFname) and getField(string fieldname) would be used, and subsequently if
>> nothing changed a shortcut would be used, while still recursing as needed
>> to check for deletion, import/export status, loaded status.
>>
>>
>>
>> On Thu, Oct 9, 2025 at 3:04 PM GPU Group <gpugroup at gmail.com> wrote:
>>
>>> Thanks Holger - I see something about proxy wrappers, and while smoke
>>> pours out of my ears, I'll incubate the implications.
>>> -Doug
>>> For example would routes carry the string field name, route to/from
>>> proxies, and proxy node would do string lookup on each routing loop? Would
>>> there be one type of route, and one type of proxy wrapper around all nodes,
>>> and the proxy would hold specific node pointer and a few other things like
>>> specific node type, or NULL if unloaded? Would the specific nodes have a
>>> pointer back to one specific proxy, or a list of proxies, so when being
>>> unloaded, it can refer back to it/ them all and empty all the proxies?
>>>
>>> On Thu, Oct 9, 2025 at 2:31 PM Holger Seelig <holger.seelig at yahoo.de>
>>> wrote:
>>>
>>>> Hello Doug,
>>>>
>>>> There is a special node internally X3DImportedNodeProxy which pretends
>>>> to be the exported node and then behaves accordingly. This class overloads
>>>> some basic functions. If this node is then inside an SFNode, you won't
>>>> notice any difference. If the Inline unloads, you should see a NULL node
>>>> maybe in the future.
>>>>
>>>>
>>>> https://github.com/create3000/x_ite/blob/feature/use-exported-node/src/x_ite/Components/Core/X3DImportedNodeProxy.js
>>>>
>>>> Best regards,
>>>> Holger
>>>>
>>>> —
>>>> Holger Seelig
>>>> holger.seelig at yahoo.de
>>>>
>>>>
>>>> Am 09.10.2025 um 22:09 schrieb GPU Group <gpugroup at gmail.com>:
>>>>
>>>> Holger, very interesting. I'd love to know how you did it, if it's not
>>>> too hard to explain.
>>>> -Doug
>>>>
>>>> On Thu, Oct 9, 2025 at 2:01 PM Holger Seelig <holger.seelig at yahoo.de>
>>>> wrote:
>>>>
>>>>> I have made an experimental implementation of this new feature. You
>>>>> can already use and play with it in the special preview playground:
>>>>>
>>>>>
>>>>> https://create3000.github.io/preview/playground/?url=https://create3000.github.io/Library/Tests/Components/Core/use-exported-node.x3dv
>>>>>
>>>>> This scene loads an inline file which exports a single green cube.
>>>>> This cube is imported into the scene and used a second time.
>>>>>
>>>>> There is also a experimental feature ‚USE before DEF‘ enabled in this
>>>>> preview playground. This feature seems important for me to get this all
>>>>> work in all cases.
>>>>>
>>>>> Best regards,
>>>>> Holger
>>>>>
>>>>> —
>>>>> Holger Seelig
>>>>> Leipzig, Germany
>>>>>
>>>>> holger.seelig at yahoo.de
>>>>> https://create3000.github.io/x_ite/
>>>>> https://patreon.com/X_ITE
>>>>>
>>>>>
>>>>>
>>>>> Am 09.10.2025 um 18:51 schrieb Don Brutzman via x3d-public <
>>>>> x3d-public at web3d.org>:
>>>>>
>>>>> Hi Doug. Thanks for looking this over.
>>>>>
>>>>> I meant to also note earlier that this proposed change in semantics
>>>>> has no effect on any existing EXPORT/IMPORT statements in any existing X3D
>>>>> models, versions 3.0 through 4.0.
>>>>>
>>>>> Am glad to see you describing how FreeWrl supports EXPORT/IMPORT to
>>>>> date.
>>>>>
>>>>> Certainly refactoring half a gazillion lines of code is likely not
>>>>> worthwhile for such an extensibility feature... don't want to risk
>>>>> provoking side-effect problems. Unless you want to, of course... :)
>>>>>
>>>>> I'm following your points. Seems sensible, but maybe any changes to
>>>>> the existing functionality you describe is pretty similar to other handling
>>>>> that is already in place. Please consider the following short reactions,
>>>>> and correct me if wrong:
>>>>>
>>>>> - Inline nodes exist and receive few ROUTE connections, there are
>>>>> not many fields there (url load etc.)
>>>>> - IMPORT creates a node reference that points somewhere in the
>>>>> scene subgraph loaded by Inline
>>>>> - That IMPORT reference can already send/receive events via ROUTE,
>>>>> as long defined in the spec.
>>>>> - In essence, the proposal says such a node reference might be
>>>>> treated in the same manner as other USE nodes, which are also node
>>>>> references.
>>>>>
>>>>> Again appreciate all consideration. Even if this is impractical for
>>>>> FreeWrl, your opinion on feasibility in general remains welcome. Am not
>>>>> trying to check boxes on a feature list, and am not trying to push a
>>>>> nontrivial architectural change. Rather am trying to enable significantly
>>>>> more scalable extensibility by removing a small existing constraint on
>>>>> usage.
>>>>>
>>>>> p.s. curiously, since the specification intentionally never mandates
>>>>> error responses, it seems like a browser implementation might
>>>>> satisfactorily permit IMPORT node references to behave similarly as USE
>>>>> node references, if it wants. hmmm...
>>>>>
>>>>> Have fun with X3D! 😀
>>>>>
>>>>> all the best, Don
>>>>> --
>>>>> X3D Graphics, Maritime Robotics, Distributed Simulation
>>>>> Relative Motion Consulting https://RelativeMotion.info
>>>>> <https://relativemotion.info/>
>>>>>
>>>>>
>>>>> On Thu, Oct 9, 2025 at 9:14 AM GPU Group <gpugroup at gmail.com> wrote:
>>>>>
>>>>>> Don,
>>>>>> "synchronization" I suspect the change would break (25 year old,
>>>>>> currently unmaintained) freewrl. I like the use-case you mention for the
>>>>>> change, seems well worth a big change. Final nail in freewrl coffin? Not
>>>>>> necessarily but would require insight and ambition to refactor 500,000
>>>>>> lines of code to allow a layer of abstraction / uncertainty around every
>>>>>> node and route in the scenegraph.
>>>>>> -Doug
>>>>>> more..
>>>>>> tests for new conformance would be
>>>>>> - if routes can dangle before an Inline is loaded, and after an
>>>>>> Inline is unloaded
>>>>>> - by dangle I mean point harmlessly TO nothing / unloaded node,
>>>>>> without being garbage collected
>>>>>> - no error or warning is issued when a route dangles
>>>>>> - if Inlined nodes are to be treated like regular scenegraph nodes,
>>>>>> would that mean all routes to regular scenegraph nodes should be able to
>>>>>> dangle?
>>>>>> - current specs: a test for deleting a regular scenegraph node: have
>>>>>> an active route to it, and see if something breaks when the node is deleted
>>>>>> -- would that need to change so instead of garbage collecting routes
>>>>>> to deleted nodes, they dangle, and (somehow) are allowed to hook back up to
>>>>>> new added nodes?
>>>>>> freewrl current Inline mechanism:
>>>>>> - Inlines are loaded, parsed in a separate thread, and can be loaded
>>>>>> and unloaded with true/false field on Inline
>>>>>> - on each rendering frame, when Inline node is
>>>>>> rendered/drawn/visited, it does a little work to check the load
>>>>>> progress/status, and makes any changes to IMPORT routes and AS nodes as
>>>>>> needed
>>>>>> - freewrl uses special routes to Inlined IMPORTed nodes, which can
>>>>>> 'dangle' (called weak routes in freewrl) while waiting for the inline to
>>>>>> load (rest of scene can be rendering).
>>>>>> - the special routes get an extra complex lookup to see if the TO
>>>>>> node is loaded
>>>>>> - versus deleting a regular scenegraph node would trigger a search
>>>>>> for routes to the deleted node, and the routes would be deleted/garbage
>>>>>> collected too
>>>>>> - and normal routes, freewrl uses memory addresses for start and end
>>>>>> node fields, and does a memory copy of field value during routing loop,
>>>>>> (versus weak/dangling route complex lookup in separate loop)
>>>>>> - when an Inline EXPORTed node is loaded it is allocated to a memory
>>>>>> address via malloc. when unloaded and free(), and reloaded and
>>>>>> reallocated, it would be loaded in a different memory address, so can't do
>>>>>> a simple memcpy with old address during routing, needs to check if node
>>>>>> loaded and what's the new memory address
>>>>>> SUMMARY: freewrl seems to be missing a layer of abstraction around or
>>>>>> flag for each node and route that would allow a USE of an Inlined AS node
>>>>>> and IMPORT route to enjoy equal status in the scenegraph. Not immediately
>>>>>> obvious how to fix / refactor.
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>> On Wed, Oct 8, 2025 at 1:27 PM Don Brutzman via x3d-public <
>>>>>> x3d-public at web3d.org> wrote:
>>>>>>
>>>>>>> [BLUF summary: proposed specification change to allow regular re-USE
>>>>>>> of imported node references.]
>>>>>>>
>>>>>>> Am trying to write a prototype for HAnim, and hoped that I might
>>>>>>> EXPORT a large model so that a smaller scene might IMPORT the HAnimHumanoid
>>>>>>> for further reuse (as a USE node in a prototype). Example EXPORT:
>>>>>>>
>>>>>>> - 3D Example Archives: Humanoid Animation, Characters, Jin LOA 2
>>>>>>> - Articulated 3D game character designed with a general graphics
>>>>>>> tool, then converted into an X3D HAnim model and available for IMPORT as
>>>>>>> JinLOA2.
>>>>>>> -
>>>>>>> https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2Index.html
>>>>>>> - <!-- This node has an EXPORT
>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#JinLOA2> connection
>>>>>>> that can exchange events with a parent X3D model. -->
>>>>>>> <HAnimHumanoid DEF='hanim_JinLOA2
>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#hanim_JinLOA2>
>>>>>>> ' loa='2' name='JinLOA2' scale='0.0225 0.0225 0.0225'> on line
>>>>>>> 30
>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#30>
>>>>>>>
>>>>>>> - <EXPORT localDEF='hanim_JinLOA2
>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#hanim_JinLOA2>
>>>>>>> ' AS='JinLOA2'/> on line 1319
>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#1319>
>>>>>>>
>>>>>>>
>>>>>>> Hmmm, please notice that medium-size HAnim model is (1319 - 30 =
>>>>>>> 1289) lines long... gee, wouldn't it be nice to Inline and IMPORT
>>>>>>> that model in ~3 lines instead, with added benefit of being able to reuse
>>>>>>> pose and motion animations with it also.
>>>>>>>
>>>>>>> However the current X3D Architecture appears to restrict the usage
>>>>>>> of imported nodes solely to receiving/sending events. That restriction
>>>>>>> permits writing ROUTE connections, but a blocker if trying to write a
>>>>>>> prototype or trying other node re-USE.
>>>>>>>
>>>>>>> EXPORT and IMPORT statements are rarely used, but have been around
>>>>>>> a long time... since X3D 3.0, about 25 years maybe. They have potential
>>>>>>> for great expressive power and extensibility (the X in X3D). However, am
>>>>>>> guessing that the reuse limitation of IMPORT nodes has likely inhibited our
>>>>>>> adoption. If I recall correctly, the primary objection (way back then) to
>>>>>>> allowing full access to an imported node reference was uncertainty about
>>>>>>> how it might all work, perhaps complicated by run-time synchronization
>>>>>>> concerns.
>>>>>>>
>>>>>>> We have come a long way since then. It seems pretty clear that an
>>>>>>> Inline node loads an external scene graph into the current scene graph.
>>>>>>> Further, the EXPORT statement identifies a specific node (sub graph) within
>>>>>>> that inlined scene graph.
>>>>>>>
>>>>>>> The straightforward way to think about this: Inline EXPORT/IMPORT
>>>>>>> provides a reference to a node in the currently loaded scene graph. Given
>>>>>>> that the author has a reference to an active node, they ought to be able to
>>>>>>> utilize that node reference just like any other DEF/USE node reference.
>>>>>>>
>>>>>>> I propose we relax the legacy (25-year) restriction and allow IMPORT
>>>>>>> node references to be treated the same as USE node references.
>>>>>>>
>>>>>>> Towards that end, have written out suggested changes in the draft
>>>>>>> v4.1 architecture, adding to a number of editorial improvements already
>>>>>>> accomplished as part of
>>>>>>>
>>>>>>> - Mantis 1470: add EXPORT/IMPORT field DESCRIPTION for X3D
>>>>>>> Architecture 4.1; also allow reuse
>>>>>>> - https://mantis.web3d.org/view.php?id=14701470: add
>>>>>>> EXPORT/IMPORT field DESCRIPTION for X3D Architecture 4.1
>>>>>>>
>>>>>>> Request review, considerations and reactions. The markup changes at
>>>>>>> first look complex but are essentially all geared towards the single
>>>>>>> objective of allowing re-use of IMPORT nodes. Lots of markup shows that
>>>>>>> there are few actual changes to existing prose, most of it is simply
>>>>>>> editorial re-organization for clarity.
>>>>>>>
>>>>>>> This is a good topic for this week's specification editors call on
>>>>>>> Friday (9 pacific).
>>>>>>> ______________________________
>>>>>>>
>>>>>>> For easy review, current markup follows. *First is Concepts.*
>>>>>>>
>>>>>>> - X3D Architecture v4.1, clause 4 Concepts, 4.4.6 EXPORT/IMPORT
>>>>>>> semantics
>>>>>>> -
>>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics
>>>>>>>
>>>>>>> 4.4.6 EXPORT/IMPORT semantics Import/Export semantics
>>>>>>>
>>>>>>> Editors note: there are few actual changes here, most are simply
>>>>>>> switching the order of EXPORT and IMPORT. Added functionality: imported
>>>>>>> node reuse.
>>>>>>>
>>>>>>> The EXPORT feature allows authors to identify specific parts of an
>>>>>>> X3D model which might be safely shared and reused by other X3D models. The
>>>>>>> IMPORT feature allows authors to incorporate content defined within Inline
>>>>>>> nodes or created programmatically into the namespace of the containing file
>>>>>>> for the purposes of event routing and reusing scene subgraphs on a
>>>>>>> per-node basis. In contrast with external prototyping (see 4.4.5
>>>>>>> External prototype semantics
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#Externalprototypesemantics>),
>>>>>>> which allows access to individual fields of nodes defined as prototypes in
>>>>>>> external files, IMPORT provides access to all the fields of an externally
>>>>>>> defined node with a single statement (see 9.2.6 IMPORT statement
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#IMPORTStatement>
>>>>>>> ).
>>>>>>>
>>>>>>> Importing nodes from an Inlined file is accomplished with two
>>>>>>> statements: EXPORT and IMPORT. IMPORT and EXPORT. The IMPORT
>>>>>>> statement is used in the containing file to define which nodes of an Inline
>>>>>>> are to be incorporated into the containing file's namespace. The
>>>>>>> EXPORT statement is used in the file being Inlined, to control access over
>>>>>>> which nodes within a file are visible to other files (see 9.2.5
>>>>>>> EXPORT statement
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#EXPORTStatement>).
>>>>>>> EXPORT statements are not allowed in prototype declarations. The
>>>>>>> IMPORT statement is used in the containing file to define which nodes of an
>>>>>>> Inline are to be incorporated into the containing file's namespace.
>>>>>>>
>>>>>>> In contrast with external prototyping (see 4.4.5 External prototype
>>>>>>> semantics
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#Externalprototypesemantics>),
>>>>>>> which allows access to individual fields of nodes defined as prototypes in
>>>>>>> external files, IMPORT provides access to all the fields of an externally
>>>>>>> defined node with a single statement (see 9.2.6 IMPORT statement
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#IMPORTStatement>
>>>>>>> ).
>>>>>>>
>>>>>>> ______________________________
>>>>>>>
>>>>>>> *Next is the EXPORT statement.*
>>>>>>>
>>>>>>> - X3D Architecture v4.1, clause 9 Networking component, 9.2.5
>>>>>>> EXPORT statement
>>>>>>> -
>>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#EXPORTStatement
>>>>>>>
>>>>>>> 9.2.5 EXPORT statement
>>>>>>>
>>>>>>> The EXPORT statement is used within an X3D file to specify nodes
>>>>>>> that may be imported into other scenes when Inlining that file. Only named
>>>>>>> nodes exported with an EXPORT statement are eligible to be imported into
>>>>>>> another scene. file. DEF names are used to identify exported nodes.
>>>>>>> See 4.4.6 EXPORT/IMPORT semantics
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics> for
>>>>>>> further details.
>>>>>>>
>>>>>>> EXPORT statements may appear anywhere in the file and have the
>>>>>>> following form:
>>>>>>>
>>>>>>> EXPORT <NodeDEFName> [ AS <ExportedNodeDEFName> ]
>>>>>>> [DESCRIPTION "a simple description of intended EXPORT
>>>>>>> purpose"]
>>>>>>>
>>>>>>> EXPORT <NodeName> [ AS <ExportedNodeName> ]
>>>>>>>
>>>>>>> The EXPORT statement has the following components:
>>>>>>>
>>>>>>> 1. The local DEF name of the node to be exported if the current
>>>>>>> scene is retrieved externally via Inline,
>>>>>>> 2. An optional alternative DEF name that is used AS a default as
>>>>>>> an alias for the exported node when importing it into other
>>>>>>> scenes, files,
>>>>>>> 3. An optional simple DESCRIPTION of intended purpose for the
>>>>>>> node provided via EXPORT.
>>>>>>>
>>>>>>> The EXPORT statement has the following semantics:
>>>>>>>
>>>>>>> 4. Once imported into a containing scene, events may be routed
>>>>>>> to or from the fields of an exported node in exactly the same
>>>>>>> manner as any node defined with DEF.
>>>>>>> 5. Exported nodes imported into a containing scene may be
>>>>>>> referenced via a USE statement in the importing scene. may not
>>>>>>> be instanced via the USE statement.
>>>>>>> 6. Exportation may not be propagated across multiple files; that
>>>>>>> is, a node imported into one scene using the IMPORT statement may not then
>>>>>>> be further exported into another scene using the EXPORT statement.
>>>>>>> 7. Nodes shall not be exported from within the body of a PROTO
>>>>>>> declaration.
>>>>>>> 8. Any scene with an EXPORT statement shall apply UNIT statement
>>>>>>> adjustments as needed to the fields of any exported nodes and child nodes.
>>>>>>> 9. The EXPORT statement can appear wherever a ROUTE statement is
>>>>>>> allowed, and shall be contained within the Inline node to which it refers.
>>>>>>>
>>>>>>> The following example illustrates the use of the EXPORT statement
>>>>>>> (Classic VRML encoding):
>>>>>>>
>>>>>>> EXAMPLE
>>>>>>>
>>>>>>> DEF T1 Transform {
>>>>>>> # additional nodes and fields...
>>>>>>> }# additional nodes and fields...
>>>>>>>
>>>>>>> EXPORT T1 AS rootTransform
>>>>>>>
>>>>>>> In the above example, node T1 is exported for use by other X3D
>>>>>>> scenes. The optional AS keyword defines the exported name of *T1*
>>>>>>> as *rootTransform* (*i.e.*, other scenes may import the node only
>>>>>>> using the name rootTransform). All defined alias AS names shall
>>>>>>> also meet appropriate uniqueness requirements in the local DEF namespace of
>>>>>>> the parent scene.
>>>>>>>
>>>>>>> ______________________________
>>>>>>> *Next is the IMPORT statement.*
>>>>>>>
>>>>>>> - X3D Architecture v4.1, clause 9 Networking component, 9.2.6
>>>>>>> IMPORT statement
>>>>>>> -
>>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#IMPORTStatement
>>>>>>>
>>>>>>> 9.2.6 IMPORT statement
>>>>>>>
>>>>>>> The IMPORT statement is used within an X3D file to specify nodes,
>>>>>>> which are defined within Inline files or programmatically created content,
>>>>>>> that are to be brought into the namespace of the containing file for the
>>>>>>> purposes of event routing. Once a node is imported, events may be sent to
>>>>>>> its fields via ROUTEs, or routed from any fields of the node which have
>>>>>>> output events. DEF names are used to identify nodes. See 4.4.6
>>>>>>> EXPORT/IMPORT semantics
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics> for
>>>>>>> further details.
>>>>>>>
>>>>>>> IMPORT statements may appear anywhere in the file and have the
>>>>>>> following form:
>>>>>>>
>>>>>>> IMPORT <InlineNodeDEFName>*.*<ExportedNameFromInlinedFile> [ AS
>>>>>>> <NewLocalNodeDEFName> ]
>>>>>>> [DESCRIPTION "a simple description of intended IMPORT
>>>>>>> purpose"]
>>>>>>>
>>>>>>> IMPORT <InlineNodeName>*.*<ExportedNameFromInlinedFile> [ AS
>>>>>>> <NewLocalNodeName> ]
>>>>>>>
>>>>>>> The IMPORT statement has the following components:
>>>>>>>
>>>>>>> 1. The DEF name of the Inline node that contains the node to be
>>>>>>> imported,
>>>>>>> 2. The DEF name of the node to import,
>>>>>>> 3. An optional alternative DEF name that is used AS as an alias
>>>>>>> for the imported node within the run-time name scope, to help
>>>>>>> prevent avoid potential DEF name clashes within the parent scene
>>>>>>> containing the IMPORT statement,
>>>>>>> 4. An optional simple DESCRIPTION of intended purpose for the
>>>>>>> node provided via IMPORT.
>>>>>>>
>>>>>>> The IMPORT statement has the following semantics:
>>>>>>>
>>>>>>> 5. Once imported, events may be routed to or from the fields of
>>>>>>> an imported node in the Inline scene, in exactly the same manner
>>>>>>> as any node defined locally with DEF.
>>>>>>> 6. Editors note: the following is an important change, otherwise
>>>>>>> an imported node cannot be utilized other than by receiving ROUTEd events
>>>>>>> (as shown by the InlineImport.x3d
>>>>>>> <https://www.web3d.org/x3d/content/examples/Basic/X3dSpecifications/InlineImportIndex.html>
>>>>>>> example).
>>>>>>> Nodes imported into an X3D scene using the IMPORT statement may be
>>>>>>> referenced not be instanced via the USE statement.
>>>>>>> 7. Only nodes that are exported from within the Inline scene via
>>>>>>> an EXPORT statement may be imported using a corresponding IMPORT statement.
>>>>>>> 8. The IMPORT statement can appear wherever a ROUTE statement is
>>>>>>> allowed, and shall follow the Inline node to which it refers.
>>>>>>>
>>>>>>> Any node reference that is obtained via IMPORT from an exporting
>>>>>>> scene is also available as a USE node in the importing scene. This
>>>>>>> requirement is necessary for the node reference retrieved by IMPORT to have
>>>>>>> full capabilities in the importing scene. Nevertheless, important
>>>>>>> synchronization considerations arise when one or more Inline models are
>>>>>>> loaded as part of the current scene graph.
>>>>>>>
>>>>>>> 9. A single Inline node is allowed to have multiple IMPORT
>>>>>>> statements. The state of nodes within that currently loaded Inline model
>>>>>>> are consistently maintained as part of the current scene.
>>>>>>> 10. Multiple Inline nodes with separate IMPORT statements are
>>>>>>> completely independent, even if each independent Inline is retrieving a
>>>>>>> copy of the same original model.
>>>>>>>
>>>>>>> The following example illustrates the use of the IMPORT statement
>>>>>>> (Classic VRML encoding syntax):
>>>>>>>
>>>>>>> EXAMPLE
>>>>>>>
>>>>>>> DEF MyInline I1 Inline {
>>>>>>> url "someurl.x3d"
>>>>>>> }
>>>>>>> IMPORT MyInline.rootTransform AS ImportedTransform I1.rootTransform AS I1Root ...
>>>>>>> # ROUTE events into the imported node, which is now a part of an Inline scene subgraph
>>>>>>> DEF PI PositionInterpolator { } { ... }
>>>>>>> ROUTE PI.value_changed TO ImportedTransform.set_translation I1Root.set_translation
>>>>>>>
>>>>>>> # also USE the imported node (and associated scene subgraph) elsewhere in the parent scene
>>>>>>> Group {
>>>>>>> USE ImportedTransform
>>>>>>> }
>>>>>>>
>>>>>>> # also USE the imported node when defining an instance of a MyNewTransform prototype
>>>>>>> MyNewTransform {
>>>>>>> children USE ImportedTransform
>>>>>>> }
>>>>>>>
>>>>>>> In the above example,
>>>>>>>
>>>>>>> - rootTransform is externally defined as a Transform node in the
>>>>>>> file someurl.x3d and exported via an EXPORT statement. (see 4.4.6
>>>>>>> Import/Export semantics
>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics>
>>>>>>> ).
>>>>>>> - The optional AS keyword in the IMPORT statement defines an
>>>>>>> alias for the MyInline.rootTransform rootTransform DEF. , so that
>>>>>>> - Within the containing scene, the node is referenced using the AS
>>>>>>> alias name ImportedTransform. DEF name I1Root.
>>>>>>>
>>>>>>> All defined alias AS names shall also meet appropriate uniqueness
>>>>>>> requirements in the local DEF namespace of the parent scene.
>>>>>>>
>>>>>>> ______________________________
>>>>>>> Additional thanks to Joe Williams, Holger Seelig, and Nicholas Polys
>>>>>>> for contributing to this analysis and potential improvement.
>>>>>>>
>>>>>>> All feedback welcome! This simple functional refinement has
>>>>>>> potential for much X3D scalability and extensibility.
>>>>>>>
>>>>>>> Thanks in advance for considering the possibilities.
>>>>>>>
>>>>>>> all the best, Don
>>>>>>> --
>>>>>>> X3D Graphics, Maritime Robotics, Distributed Simulation
>>>>>>> Relative Motion Consulting https://RelativeMotion.info
>>>>>>> <https://relativemotion.info/>
>>>>>>> _______________________________________________
>>>>>>> x3d-public mailing list
>>>>>>> x3d-public at web3d.org
>>>>>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>>>>>
>>>>>> _______________________________________________
>>>>> x3d-public mailing list
>>>>> x3d-public at web3d.org
>>>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>>>
>>>>>
>>>>>
>>>>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20251019/660e0a3c/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 92627 bytes
Desc: not available
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20251019/660e0a3c/attachment-0003.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 86603 bytes
Desc: not available
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20251019/660e0a3c/attachment-0004.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: HAnimPoseExample.png
Type: image/png
Size: 92627 bytes
Desc: not available
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20251019/660e0a3c/attachment-0005.png>
More information about the x3d-public
mailing list
