[x3d-public] allowing full capabilities for X3D node reuse with Inline EXPORT/IMPORT AS/USE
John Carlson
yottzumm at gmail.com
Sun Oct 19 18:53:37 PDT 2025
IMPORT/USE may also be a good model for FACS, maybe focusing on a MenuItem
prototype, which could be used across multiple projects.
Once MenuItem prototype working extensibly, focus on building a reusable
Menu prototype?
My intention was to do build a menu system for X3D. Leftover code is here:
https://github.com/coderextreme/ci2had/
Given a little push by interested parties, I could work on Menu/MenuItem,
possibly based on Layering/Layout components.
I have a use for this for 3D asset management filters, it just is not at
the top of my list right now.
Maybe eventually, the whole X3D archive can be rendered in X3D, including
encoding text.
But yeah, working on TOC/Menu may be a first step.
If we view the X3D archive like a 3D asset management system in 3D, maybe
the MSF can just adopt the X3D archive. I’m fairly sure glTF can slide
right in, OpenUSD is next.
The next thing I will do is build a Menu/MenuItem for HAnimUtilityKit, as a
second PoC.
I will start with the MenuItem prototype, declared here, or in a similar
file:
https://github.com/coderextreme/ci2had/blob/e6008aafdc6af9b857cf785b6f640b41db6fdc7e/resources/ManyClocks.x3d#L3293
Ideally, the size of the ProtoInstances could be reduced, maybe using the
IMPORT/USE methodology.
John
On Sun, Oct 19, 2025 at 3:21 PM Don Brutzman via x3d-public <
x3d-public at web3d.org> wrote:
> Holger this is super. Your support for *Inline/IMPORT AS providing a
> node reference (similar to USE node references) works great. 👍*
>
> Changing from a copy of JinLOA2 HAnimHumanoid to an Inline/IMPORT node
> reference reduced file size from 346K to 22K. Of course it makes
> maintaining a master copy providing best practices much easier too. *👍*
> *👍**👍**👍*
>
> I have updated several more HAnimHumanoid modes and successfully tested
> Inline/IMPORT AS support for the HAnimPose node prototype with each of
> them: JinLOA1, JinLOA2, JinLOA3, and JinLOA4. All good.
>
> - X3D Example Archives: Humanoid Animation, Characters
> - HAnim Characters are HAnim2 X3D4 models conforming to version 2 of
> the Humanoid Animation (HAnim) International Standard, ISO—IEC 14774:2019.
> -
> https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters
> - <meta name='info' content='This scene includes an EXPORT statement
> to simplfy reuse of a large, complex HAnimHumanoid model by other X3D
> scenes.'/>
> - Humanoid Animation X3D Examples Archive, Characters, Jin LOA 1
> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA1Index.html>
> - Humanoid Animation X3D Examples Archive, Characters, Jin LOA 2
> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2Index.html>
> - Humanoid Animation X3D Examples Archive, Characters, Jin LOA 3
> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA3Index.html>
> - Humanoid Animation X3D Examples Archive, Characters, Jin LOA 4
> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA4Index.html>
> - for instance, <EXPORT localDEF='hanim_JinLOA4
> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA4.html#hanim_JinLOA4>
> ' AS='JinLOA4'/> on line 2671
> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA4.html#2671>
>
>

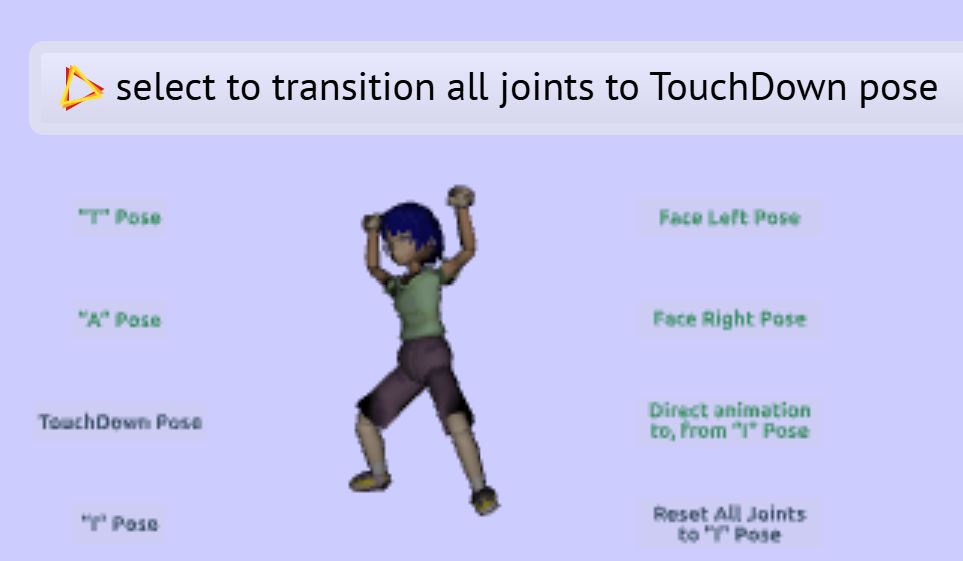

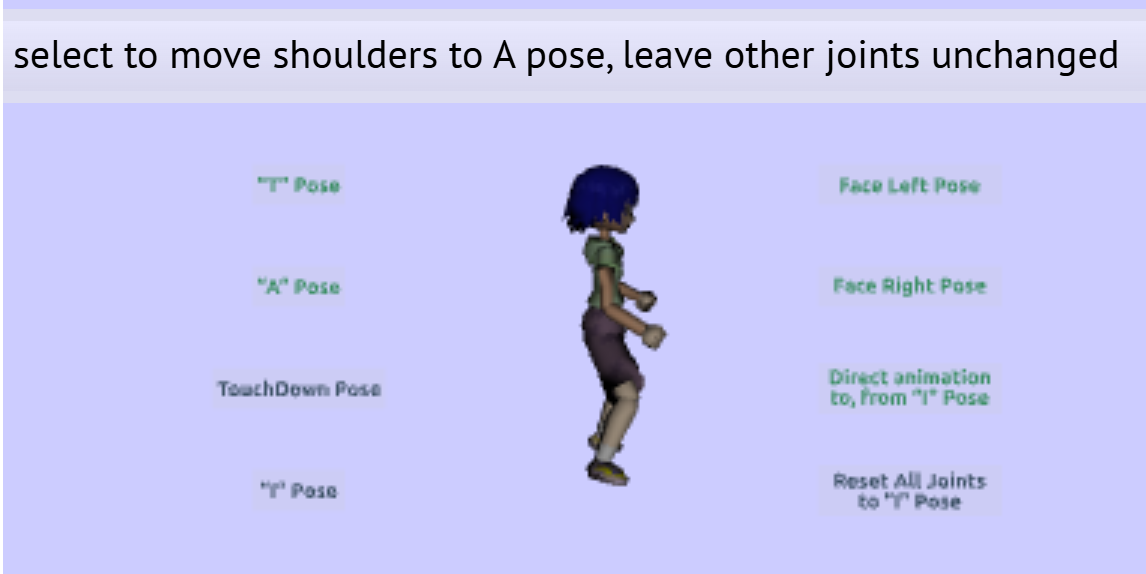

> Am further happy to report that the prototype for *HAnimPose node **appears
> to be working fully*, tested online with X_ITE, online with Playground,
> and locally using Sunrize for Windows. 😀
>
> - X3D Example Archives: Humanoid Animation, Poses, HAnim Pose Prototype
> - Define an experimental new node to simply capture a single pose for
> an HAnimHumanoid model. Expected usage is to allow HAnimHumanoid to contain
> multiple Pose nodes which can be activated and composed.
> -
> https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Poses/HAnimPosePrototypeIndex.html
>
> - with console log at
> https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Poses/HAnimPosePrototype.console.txt
>
> [image: image.png]
> [image: image.png]
>
> Big progress all coming together today, hooray! Thanks again to you and
> to everyone contributing, all efforts have value.
>
> Have fun with X3D and HAnim!
>
> all the best, Don
> --
> X3D Graphics, Maritime Robotics, Distributed Simulation
> Relative Motion Consulting https://RelativeMotion.info
>
>
> On Sun, Oct 19, 2025 at 2:46 AM Holger Seelig <holger.seelig at yahoo.de>
> wrote:
>
>> Just released new versions of X_ITE and Sunrize, which will now include
>> USE before DEF, which can be very useful when editing your files in a
>> text editor.
>>
>> In addition, imported nodes can now be referenced with USE in the scene
>> graph using their imported name. These are major changes that greatly
>> expand the capabilities of X3D.
>>
>> All of this can be edited in Sunrize to make your life easier so you can
>> enjoy X3D.
>>
>> Besides this, there are also other improvements and bug fixes.
>>
>> Best regards,
>> Holger
>> —
>> Holger Seelig
>> holger.seelig at yahoo.de
>>
>>
>> Am 18.10.2025 um 21:59 schrieb Don Brutzman <don.brutzman at gmail.com>:
>>
>> Gee Doug, design sounds pretty thorough!
>>
>> Holger, the following HAnimPose prototype example + ProtoInstance nodes
>> seem to be fully working now.
>> -
>>
>> https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Pose/HAnimPosePrototypeIndex.html
>>
>> However I have not been able to get the IMPORT/Inline HAnimHumanoid
>> replacement to work, as an alternative to copying the HAnimHumanoid
>> completely…
>>
>> Wondering if my conversion stylesheets are not iinvoking your latest
>> X_ITE correctly?
>>
>> all the best, Don
>> --
>> Don Brutzman
>> X3D graphics, virtual worlds, Navy robotics
>> https://faculty.nps.edu/brutzman
>>
>>
>> On Fri, Oct 17, 2025 at 09:10 GPU Group <gpugroup at gmail.com> wrote:
>>
>>> Thanks again Holger, the proxy idea might work in freewrl.
>>> -Doug
>>> more..
>>> Recursive Addressing and Node Status Table:
>>> Use-Case: Inlines can inline and pass-through nodes via import + export.
>>> - but each Inline can un-export or un-import a node
>>> - script nodes can delete nodes in executionContext
>>> Recursive Addressing:
>>> When recursing from the main scene, a getNode(inode) funcion would check
>>> current import, Inline.loaded, export, node deleted? and so on through
>>> layers of inlines in what I'll call recursive addressing
>>> - the recursive addressing would be applied when traversing the
>>> scenegraph to draw a node, and when routing, would be applied at each end
>>> of the route
>>> - recursion bottoms out when a node is 'unresolved' or it gets to a
>>> specific node (vs intermediary proxies)
>>> NST node status table::
>>> - MFNode and SFNode fields would hold integer indexes into a table of
>>> (node or proxy address) aka NST node status table, which would be globally
>>> available, and not garbage collected until the browser shuts down, and
>>> putting a null for the entry when a node is deleted, but not re-using the
>>> table entry for the life of the browser run. This would avoid the need for
>>> hunting down references to a node that is being deleted. Any proxies
>>> pointing to a node would go through the NST to get the address, and if null
>>> would not draw/route.
>>> - so when an Inline is unloaded, and all its nodes deleted, any
>>> main-scene proxies pointing at imported nodes would go through the NST
>>> IMPORT and EXPORT tables in each executionContext
>>> - proxies would have an index into the table for themselves, and when
>>> un-imported or un-exported (through SAI) a flag in the table would be set
>>> Option: all nodes could be wrapped with a proxy, or just use proxies as
>>> needed
>>> During parsing, routes would not resolve to field ;memory address
>>> end-points, but rather DEFname + fieldname.
>>> - during routing, on the first pass, a long lookup getNodeB(string
>>> DEFname) and getField(string fieldname) would be used, and subsequently if
>>> nothing changed a shortcut would be used, while still recursing as needed
>>> to check for deletion, import/export status, loaded status.
>>>
>>>
>>>
>>> On Thu, Oct 9, 2025 at 3:04 PM GPU Group <gpugroup at gmail.com> wrote:
>>>
>>>> Thanks Holger - I see something about proxy wrappers, and while smoke
>>>> pours out of my ears, I'll incubate the implications.
>>>> -Doug
>>>> For example would routes carry the string field name, route to/from
>>>> proxies, and proxy node would do string lookup on each routing loop? Would
>>>> there be one type of route, and one type of proxy wrapper around all nodes,
>>>> and the proxy would hold specific node pointer and a few other things like
>>>> specific node type, or NULL if unloaded? Would the specific nodes have a
>>>> pointer back to one specific proxy, or a list of proxies, so when being
>>>> unloaded, it can refer back to it/ them all and empty all the proxies?
>>>>
>>>> On Thu, Oct 9, 2025 at 2:31 PM Holger Seelig <holger.seelig at yahoo.de>
>>>> wrote:
>>>>
>>>>> Hello Doug,
>>>>>
>>>>> There is a special node internally X3DImportedNodeProxy which pretends
>>>>> to be the exported node and then behaves accordingly. This class overloads
>>>>> some basic functions. If this node is then inside an SFNode, you
>>>>> won't notice any difference. If the Inline unloads, you should see a NULL
>>>>> node maybe in the future.
>>>>>
>>>>>
>>>>> https://github.com/create3000/x_ite/blob/feature/use-exported-node/src/x_ite/Components/Core/X3DImportedNodeProxy.js
>>>>>
>>>>> Best regards,
>>>>> Holger
>>>>>
>>>>> —
>>>>> Holger Seelig
>>>>> holger.seelig at yahoo.de
>>>>>
>>>>>
>>>>> Am 09.10.2025 um 22:09 schrieb GPU Group <gpugroup at gmail.com>:
>>>>>
>>>>> Holger, very interesting. I'd love to know how you did it, if it's not
>>>>> too hard to explain.
>>>>> -Doug
>>>>>
>>>>> On Thu, Oct 9, 2025 at 2:01 PM Holger Seelig <holger.seelig at yahoo.de>
>>>>> wrote:
>>>>>
>>>>>> I have made an experimental implementation of this new feature. You
>>>>>> can already use and play with it in the special preview playground:
>>>>>>
>>>>>>
>>>>>> https://create3000.github.io/preview/playground/?url=https://create3000.github.io/Library/Tests/Components/Core/use-exported-node.x3dv
>>>>>>
>>>>>> This scene loads an inline file which exports a single green cube.
>>>>>> This cube is imported into the scene and used a second time.
>>>>>>
>>>>>> There is also a experimental feature ‚USE before DEF‘ enabled in this
>>>>>> preview playground. This feature seems important for me to get this all
>>>>>> work in all cases.
>>>>>>
>>>>>> Best regards,
>>>>>> Holger
>>>>>>
>>>>>> —
>>>>>> Holger Seelig
>>>>>> Leipzig, Germany
>>>>>>
>>>>>> holger.seelig at yahoo.de
>>>>>> https://create3000.github.io/x_ite/
>>>>>> https://patreon.com/X_ITE
>>>>>>
>>>>>>
>>>>>>
>>>>>> Am 09.10.2025 um 18:51 schrieb Don Brutzman via x3d-public <
>>>>>> x3d-public at web3d.org>:
>>>>>>
>>>>>> Hi Doug. Thanks for looking this over.
>>>>>>
>>>>>> I meant to also note earlier that this proposed change in semantics
>>>>>> has no effect on any existing EXPORT/IMPORT statements in any existing X3D
>>>>>> models, versions 3.0 through 4.0.
>>>>>>
>>>>>> Am glad to see you describing how FreeWrl supports EXPORT/IMPORT to
>>>>>> date.
>>>>>>
>>>>>> Certainly refactoring half a gazillion lines of code is likely not
>>>>>> worthwhile for such an extensibility feature... don't want to risk
>>>>>> provoking side-effect problems. Unless you want to, of course... :)
>>>>>>
>>>>>> I'm following your points. Seems sensible, but maybe any changes to
>>>>>> the existing functionality you describe is pretty similar to other handling
>>>>>> that is already in place. Please consider the following short reactions,
>>>>>> and correct me if wrong:
>>>>>>
>>>>>> - Inline nodes exist and receive few ROUTE connections, there are
>>>>>> not many fields there (url load etc.)
>>>>>> - IMPORT creates a node reference that points somewhere in the
>>>>>> scene subgraph loaded by Inline
>>>>>> - That IMPORT reference can already send/receive events via
>>>>>> ROUTE, as long defined in the spec.
>>>>>> - In essence, the proposal says such a node reference might be
>>>>>> treated in the same manner as other USE nodes, which are also node
>>>>>> references.
>>>>>>
>>>>>> Again appreciate all consideration. Even if this is impractical for
>>>>>> FreeWrl, your opinion on feasibility in general remains welcome. Am not
>>>>>> trying to check boxes on a feature list, and am not trying to push a
>>>>>> nontrivial architectural change. Rather am trying to enable significantly
>>>>>> more scalable extensibility by removing a small existing constraint on
>>>>>> usage.
>>>>>>
>>>>>> p.s. curiously, since the specification intentionally never mandates
>>>>>> error responses, it seems like a browser implementation might
>>>>>> satisfactorily permit IMPORT node references to behave similarly as USE
>>>>>> node references, if it wants. hmmm...
>>>>>>
>>>>>> Have fun with X3D! 😀
>>>>>>
>>>>>> all the best, Don
>>>>>> --
>>>>>> X3D Graphics, Maritime Robotics, Distributed Simulation
>>>>>> Relative Motion Consulting https://RelativeMotion.info
>>>>>> <https://relativemotion.info/>
>>>>>>
>>>>>>
>>>>>> On Thu, Oct 9, 2025 at 9:14 AM GPU Group <gpugroup at gmail.com> wrote:
>>>>>>
>>>>>>> Don,
>>>>>>> "synchronization" I suspect the change would break (25 year old,
>>>>>>> currently unmaintained) freewrl. I like the use-case you mention for the
>>>>>>> change, seems well worth a big change. Final nail in freewrl coffin? Not
>>>>>>> necessarily but would require insight and ambition to refactor 500,000
>>>>>>> lines of code to allow a layer of abstraction / uncertainty around every
>>>>>>> node and route in the scenegraph.
>>>>>>> -Doug
>>>>>>> more..
>>>>>>> tests for new conformance would be
>>>>>>> - if routes can dangle before an Inline is loaded, and after an
>>>>>>> Inline is unloaded
>>>>>>> - by dangle I mean point harmlessly TO nothing / unloaded node,
>>>>>>> without being garbage collected
>>>>>>> - no error or warning is issued when a route dangles
>>>>>>> - if Inlined nodes are to be treated like regular scenegraph nodes,
>>>>>>> would that mean all routes to regular scenegraph nodes should be able to
>>>>>>> dangle?
>>>>>>> - current specs: a test for deleting a regular scenegraph node: have
>>>>>>> an active route to it, and see if something breaks when the node is deleted
>>>>>>> -- would that need to change so instead of garbage collecting routes
>>>>>>> to deleted nodes, they dangle, and (somehow) are allowed to hook back up to
>>>>>>> new added nodes?
>>>>>>> freewrl current Inline mechanism:
>>>>>>> - Inlines are loaded, parsed in a separate thread, and can be loaded
>>>>>>> and unloaded with true/false field on Inline
>>>>>>> - on each rendering frame, when Inline node is
>>>>>>> rendered/drawn/visited, it does a little work to check the load
>>>>>>> progress/status, and makes any changes to IMPORT routes and AS nodes as
>>>>>>> needed
>>>>>>> - freewrl uses special routes to Inlined IMPORTed nodes, which can
>>>>>>> 'dangle' (called weak routes in freewrl) while waiting for the inline to
>>>>>>> load (rest of scene can be rendering).
>>>>>>> - the special routes get an extra complex lookup to see if the TO
>>>>>>> node is loaded
>>>>>>> - versus deleting a regular scenegraph node would trigger a search
>>>>>>> for routes to the deleted node, and the routes would be deleted/garbage
>>>>>>> collected too
>>>>>>> - and normal routes, freewrl uses memory addresses for start and end
>>>>>>> node fields, and does a memory copy of field value during routing loop,
>>>>>>> (versus weak/dangling route complex lookup in separate loop)
>>>>>>> - when an Inline EXPORTed node is loaded it is allocated to a memory
>>>>>>> address via malloc. when unloaded and free(), and reloaded and
>>>>>>> reallocated, it would be loaded in a different memory address, so can't do
>>>>>>> a simple memcpy with old address during routing, needs to check if node
>>>>>>> loaded and what's the new memory address
>>>>>>> SUMMARY: freewrl seems to be missing a layer of abstraction around
>>>>>>> or flag for each node and route that would allow a USE of an Inlined AS
>>>>>>> node and IMPORT route to enjoy equal status in the scenegraph. Not
>>>>>>> immediately obvious how to fix / refactor.
>>>>>>>
>>>>>>>
>>>>>>>
>>>>>>>
>>>>>>>
>>>>>>> On Wed, Oct 8, 2025 at 1:27 PM Don Brutzman via x3d-public <
>>>>>>> x3d-public at web3d.org> wrote:
>>>>>>>
>>>>>>>> [BLUF summary: proposed specification change to allow regular
>>>>>>>> re-USE of imported node references.]
>>>>>>>>
>>>>>>>> Am trying to write a prototype for HAnim, and hoped that I might
>>>>>>>> EXPORT a large model so that a smaller scene might IMPORT the HAnimHumanoid
>>>>>>>> for further reuse (as a USE node in a prototype). Example EXPORT:
>>>>>>>>
>>>>>>>> - 3D Example Archives: Humanoid Animation, Characters, Jin LOA 2
>>>>>>>> - Articulated 3D game character designed with a general
>>>>>>>> graphics tool, then converted into an X3D HAnim model and available for
>>>>>>>> IMPORT as JinLOA2.
>>>>>>>> -
>>>>>>>> https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2Index.html
>>>>>>>> - <!-- This node has an EXPORT
>>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#JinLOA2> connection
>>>>>>>> that can exchange events with a parent X3D model. -->
>>>>>>>> <HAnimHumanoid DEF='hanim_JinLOA2
>>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#hanim_JinLOA2>
>>>>>>>> ' loa='2' name='JinLOA2' scale='0.0225 0.0225 0.0225'> on line
>>>>>>>> 30
>>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#30>
>>>>>>>>
>>>>>>>> - <EXPORT localDEF='hanim_JinLOA2
>>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#hanim_JinLOA2>
>>>>>>>> ' AS='JinLOA2'/> on line 1319
>>>>>>>> <https://www.web3d.org/x3d/content/examples/HumanoidAnimation/Characters/JinLOA2.html#1319>
>>>>>>>>
>>>>>>>>
>>>>>>>> Hmmm, please notice that medium-size HAnim model is (1319 - 30 =
>>>>>>>> 1289) lines long... gee, wouldn't it be nice to Inline and IMPORT
>>>>>>>> that model in ~3 lines instead, with added benefit of being able to reuse
>>>>>>>> pose and motion animations with it also.
>>>>>>>>
>>>>>>>> However the current X3D Architecture appears to restrict the usage
>>>>>>>> of imported nodes solely to receiving/sending events. That restriction
>>>>>>>> permits writing ROUTE connections, but a blocker if trying to write a
>>>>>>>> prototype or trying other node re-USE.
>>>>>>>>
>>>>>>>> EXPORT and IMPORT statements are rarely used, but have been around
>>>>>>>> a long time... since X3D 3.0, about 25 years maybe. They have potential
>>>>>>>> for great expressive power and extensibility (the X in X3D). However, am
>>>>>>>> guessing that the reuse limitation of IMPORT nodes has likely inhibited our
>>>>>>>> adoption. If I recall correctly, the primary objection (way back then) to
>>>>>>>> allowing full access to an imported node reference was uncertainty about
>>>>>>>> how it might all work, perhaps complicated by run-time synchronization
>>>>>>>> concerns.
>>>>>>>>
>>>>>>>> We have come a long way since then. It seems pretty clear that an
>>>>>>>> Inline node loads an external scene graph into the current scene graph.
>>>>>>>> Further, the EXPORT statement identifies a specific node (sub graph) within
>>>>>>>> that inlined scene graph.
>>>>>>>>
>>>>>>>> The straightforward way to think about this: Inline EXPORT/IMPORT
>>>>>>>> provides a reference to a node in the currently loaded scene graph. Given
>>>>>>>> that the author has a reference to an active node, they ought to be able to
>>>>>>>> utilize that node reference just like any other DEF/USE node reference.
>>>>>>>>
>>>>>>>> I propose we relax the legacy (25-year) restriction and allow
>>>>>>>> IMPORT node references to be treated the same as USE node references.
>>>>>>>>
>>>>>>>> Towards that end, have written out suggested changes in the draft
>>>>>>>> v4.1 architecture, adding to a number of editorial improvements already
>>>>>>>> accomplished as part of
>>>>>>>>
>>>>>>>> - Mantis 1470: add EXPORT/IMPORT field DESCRIPTION for X3D
>>>>>>>> Architecture 4.1; also allow reuse
>>>>>>>> - https://mantis.web3d.org/view.php?id=14701470: add
>>>>>>>> EXPORT/IMPORT field DESCRIPTION for X3D Architecture 4.1
>>>>>>>>
>>>>>>>> Request review, considerations and reactions. The markup changes
>>>>>>>> at first look complex but are essentially all geared towards the single
>>>>>>>> objective of allowing re-use of IMPORT nodes. Lots of markup shows that
>>>>>>>> there are few actual changes to existing prose, most of it is simply
>>>>>>>> editorial re-organization for clarity.
>>>>>>>>
>>>>>>>> This is a good topic for this week's specification editors call on
>>>>>>>> Friday (9 pacific).
>>>>>>>> ______________________________
>>>>>>>>
>>>>>>>> For easy review, current markup follows. *First is Concepts.*
>>>>>>>>
>>>>>>>> - X3D Architecture v4.1, clause 4 Concepts, 4.4.6 EXPORT/IMPORT
>>>>>>>> semantics
>>>>>>>> -
>>>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics
>>>>>>>>
>>>>>>>> 4.4.6 EXPORT/IMPORT semantics Import/Export semantics
>>>>>>>>
>>>>>>>> Editors note: there are few actual changes here, most are simply
>>>>>>>> switching the order of EXPORT and IMPORT. Added functionality: imported
>>>>>>>> node reuse.
>>>>>>>>
>>>>>>>> The EXPORT feature allows authors to identify specific parts of an
>>>>>>>> X3D model which might be safely shared and reused by other X3D models. The
>>>>>>>> IMPORT feature allows authors to incorporate content defined within Inline
>>>>>>>> nodes or created programmatically into the namespace of the containing file
>>>>>>>> for the purposes of event routing and reusing scene subgraphs on a
>>>>>>>> per-node basis. In contrast with external prototyping (see 4.4.5
>>>>>>>> External prototype semantics
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#Externalprototypesemantics>),
>>>>>>>> which allows access to individual fields of nodes defined as prototypes in
>>>>>>>> external files, IMPORT provides access to all the fields of an externally
>>>>>>>> defined node with a single statement (see 9.2.6 IMPORT statement
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#IMPORTStatement>
>>>>>>>> ).
>>>>>>>>
>>>>>>>> Importing nodes from an Inlined file is accomplished with two
>>>>>>>> statements: EXPORT and IMPORT. IMPORT and EXPORT. The IMPORT
>>>>>>>> statement is used in the containing file to define which nodes of an Inline
>>>>>>>> are to be incorporated into the containing file's namespace. The
>>>>>>>> EXPORT statement is used in the file being Inlined, to control access over
>>>>>>>> which nodes within a file are visible to other files (see 9.2.5
>>>>>>>> EXPORT statement
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#EXPORTStatement>).
>>>>>>>> EXPORT statements are not allowed in prototype declarations. The
>>>>>>>> IMPORT statement is used in the containing file to define which nodes of an
>>>>>>>> Inline are to be incorporated into the containing file's namespace.
>>>>>>>>
>>>>>>>> In contrast with external prototyping (see 4.4.5 External
>>>>>>>> prototype semantics
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#Externalprototypesemantics>),
>>>>>>>> which allows access to individual fields of nodes defined as prototypes in
>>>>>>>> external files, IMPORT provides access to all the fields of an externally
>>>>>>>> defined node with a single statement (see 9.2.6 IMPORT statement
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#IMPORTStatement>
>>>>>>>> ).
>>>>>>>>
>>>>>>>> ______________________________
>>>>>>>>
>>>>>>>> *Next is the EXPORT statement.*
>>>>>>>>
>>>>>>>> - X3D Architecture v4.1, clause 9 Networking component, 9.2.5
>>>>>>>> EXPORT statement
>>>>>>>> -
>>>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#EXPORTStatement
>>>>>>>>
>>>>>>>> 9.2.5 EXPORT statement
>>>>>>>>
>>>>>>>> The EXPORT statement is used within an X3D file to specify nodes
>>>>>>>> that may be imported into other scenes when Inlining that file. Only named
>>>>>>>> nodes exported with an EXPORT statement are eligible to be imported into
>>>>>>>> another scene. file. DEF names are used to identify exported nodes.
>>>>>>>> See 4.4.6 EXPORT/IMPORT semantics
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics> for
>>>>>>>> further details.
>>>>>>>>
>>>>>>>> EXPORT statements may appear anywhere in the file and have the
>>>>>>>> following form:
>>>>>>>>
>>>>>>>> EXPORT <NodeDEFName> [ AS <ExportedNodeDEFName> ]
>>>>>>>> [DESCRIPTION "a simple description of intended EXPORT
>>>>>>>> purpose"]
>>>>>>>>
>>>>>>>> EXPORT <NodeName> [ AS <ExportedNodeName> ]
>>>>>>>>
>>>>>>>> The EXPORT statement has the following components:
>>>>>>>>
>>>>>>>> 1. The local DEF name of the node to be exported if the current
>>>>>>>> scene is retrieved externally via Inline,
>>>>>>>> 2. An optional alternative DEF name that is used AS a default as
>>>>>>>> an alias for the exported node when importing it into other
>>>>>>>> scenes, files,
>>>>>>>> 3. An optional simple DESCRIPTION of intended purpose for the
>>>>>>>> node provided via EXPORT.
>>>>>>>>
>>>>>>>> The EXPORT statement has the following semantics:
>>>>>>>>
>>>>>>>> 4. Once imported into a containing scene, events may be routed
>>>>>>>> to or from the fields of an exported node in exactly the same
>>>>>>>> manner as any node defined with DEF.
>>>>>>>> 5. Exported nodes imported into a containing scene may be
>>>>>>>> referenced via a USE statement in the importing scene. may not
>>>>>>>> be instanced via the USE statement.
>>>>>>>> 6. Exportation may not be propagated across multiple files;
>>>>>>>> that is, a node imported into one scene using the IMPORT statement may not
>>>>>>>> then be further exported into another scene using the EXPORT statement.
>>>>>>>> 7. Nodes shall not be exported from within the body of a PROTO
>>>>>>>> declaration.
>>>>>>>> 8. Any scene with an EXPORT statement shall apply UNIT
>>>>>>>> statement adjustments as needed to the fields of any exported nodes and
>>>>>>>> child nodes.
>>>>>>>> 9. The EXPORT statement can appear wherever a ROUTE statement
>>>>>>>> is allowed, and shall be contained within the Inline node to which it
>>>>>>>> refers.
>>>>>>>>
>>>>>>>> The following example illustrates the use of the EXPORT statement
>>>>>>>> (Classic VRML encoding):
>>>>>>>>
>>>>>>>> EXAMPLE
>>>>>>>>
>>>>>>>> DEF T1 Transform {
>>>>>>>> # additional nodes and fields...
>>>>>>>> }# additional nodes and fields...
>>>>>>>>
>>>>>>>> EXPORT T1 AS rootTransform
>>>>>>>>
>>>>>>>> In the above example, node T1 is exported for use by other X3D
>>>>>>>> scenes. The optional AS keyword defines the exported name of *T1*
>>>>>>>> as *rootTransform* (*i.e.*, other scenes may import the node only
>>>>>>>> using the name rootTransform). All defined alias AS names shall
>>>>>>>> also meet appropriate uniqueness requirements in the local DEF namespace of
>>>>>>>> the parent scene.
>>>>>>>>
>>>>>>>> ______________________________
>>>>>>>> *Next is the IMPORT statement.*
>>>>>>>>
>>>>>>>> - X3D Architecture v4.1, clause 9 Networking component, 9.2.6
>>>>>>>> IMPORT statement
>>>>>>>> -
>>>>>>>> https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/components/networking.html#IMPORTStatement
>>>>>>>>
>>>>>>>> 9.2.6 IMPORT statement
>>>>>>>>
>>>>>>>> The IMPORT statement is used within an X3D file to specify nodes,
>>>>>>>> which are defined within Inline files or programmatically created content,
>>>>>>>> that are to be brought into the namespace of the containing file for the
>>>>>>>> purposes of event routing. Once a node is imported, events may be sent to
>>>>>>>> its fields via ROUTEs, or routed from any fields of the node which have
>>>>>>>> output events. DEF names are used to identify nodes. See 4.4.6
>>>>>>>> EXPORT/IMPORT semantics
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics> for
>>>>>>>> further details.
>>>>>>>>
>>>>>>>> IMPORT statements may appear anywhere in the file and have the
>>>>>>>> following form:
>>>>>>>>
>>>>>>>> IMPORT <InlineNodeDEFName>*.*<ExportedNameFromInlinedFile> [ AS
>>>>>>>> <NewLocalNodeDEFName> ]
>>>>>>>> [DESCRIPTION "a simple description of intended IMPORT
>>>>>>>> purpose"]
>>>>>>>>
>>>>>>>> IMPORT <InlineNodeName>*.*<ExportedNameFromInlinedFile> [ AS
>>>>>>>> <NewLocalNodeName> ]
>>>>>>>>
>>>>>>>> The IMPORT statement has the following components:
>>>>>>>>
>>>>>>>> 1. The DEF name of the Inline node that contains the node to be
>>>>>>>> imported,
>>>>>>>> 2. The DEF name of the node to import,
>>>>>>>> 3. An optional alternative DEF name that is used AS as an alias
>>>>>>>> for the imported node within the run-time name scope, to help
>>>>>>>> prevent avoid potential DEF name clashes within the parent
>>>>>>>> scene containing the IMPORT statement,
>>>>>>>> 4. An optional simple DESCRIPTION of intended purpose for the
>>>>>>>> node provided via IMPORT.
>>>>>>>>
>>>>>>>> The IMPORT statement has the following semantics:
>>>>>>>>
>>>>>>>> 5. Once imported, events may be routed to or from the fields of
>>>>>>>> an imported node in the Inline scene, in exactly the same
>>>>>>>> manner as any node defined locally with DEF.
>>>>>>>> 6. Editors note: the following is an important change,
>>>>>>>> otherwise an imported node cannot be utilized other than by receiving
>>>>>>>> ROUTEd events (as shown by the InlineImport.x3d
>>>>>>>> <https://www.web3d.org/x3d/content/examples/Basic/X3dSpecifications/InlineImportIndex.html>
>>>>>>>> example).
>>>>>>>> Nodes imported into an X3D scene using the IMPORT statement may be
>>>>>>>> referenced not be instanced via the USE statement.
>>>>>>>> 7. Only nodes that are exported from within the Inline scene via
>>>>>>>> an EXPORT statement may be imported using a corresponding IMPORT statement.
>>>>>>>> 8. The IMPORT statement can appear wherever a ROUTE statement
>>>>>>>> is allowed, and shall follow the Inline node to which it refers.
>>>>>>>>
>>>>>>>> Any node reference that is obtained via IMPORT from an exporting
>>>>>>>> scene is also available as a USE node in the importing scene. This
>>>>>>>> requirement is necessary for the node reference retrieved by IMPORT to have
>>>>>>>> full capabilities in the importing scene. Nevertheless, important
>>>>>>>> synchronization considerations arise when one or more Inline models are
>>>>>>>> loaded as part of the current scene graph.
>>>>>>>>
>>>>>>>> 9. A single Inline node is allowed to have multiple IMPORT
>>>>>>>> statements. The state of nodes within that currently loaded Inline model
>>>>>>>> are consistently maintained as part of the current scene.
>>>>>>>> 10. Multiple Inline nodes with separate IMPORT statements are
>>>>>>>> completely independent, even if each independent Inline is retrieving a
>>>>>>>> copy of the same original model.
>>>>>>>>
>>>>>>>> The following example illustrates the use of the IMPORT statement
>>>>>>>> (Classic VRML encoding syntax):
>>>>>>>>
>>>>>>>> EXAMPLE
>>>>>>>>
>>>>>>>> DEF MyInline I1 Inline {
>>>>>>>> url "someurl.x3d"
>>>>>>>> }
>>>>>>>> IMPORT MyInline.rootTransform AS ImportedTransform I1.rootTransform AS I1Root ...
>>>>>>>> # ROUTE events into the imported node, which is now a part of an Inline scene subgraph
>>>>>>>> DEF PI PositionInterpolator { } { ... }
>>>>>>>> ROUTE PI.value_changed TO ImportedTransform.set_translation I1Root.set_translation
>>>>>>>>
>>>>>>>> # also USE the imported node (and associated scene subgraph) elsewhere in the parent scene
>>>>>>>> Group {
>>>>>>>> USE ImportedTransform
>>>>>>>> }
>>>>>>>>
>>>>>>>> # also USE the imported node when defining an instance of a MyNewTransform prototype
>>>>>>>> MyNewTransform {
>>>>>>>> children USE ImportedTransform
>>>>>>>> }
>>>>>>>>
>>>>>>>> In the above example,
>>>>>>>>
>>>>>>>> - rootTransform is externally defined as a Transform node in
>>>>>>>> the file someurl.x3d and exported via an EXPORT statement. (see 4.4.6
>>>>>>>> Import/Export semantics
>>>>>>>> <https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD/Part01/concepts.html#ExportImportSemantics>
>>>>>>>> ).
>>>>>>>> - The optional AS keyword in the IMPORT statement defines an
>>>>>>>> alias for the MyInline.rootTransform rootTransform DEF. , so
>>>>>>>> that
>>>>>>>> - Within the containing scene, the node is referenced using the AS
>>>>>>>> alias name ImportedTransform. DEF name I1Root.
>>>>>>>>
>>>>>>>> All defined alias AS names shall also meet appropriate uniqueness
>>>>>>>> requirements in the local DEF namespace of the parent scene.
>>>>>>>>
>>>>>>>> ______________________________
>>>>>>>> Additional thanks to Joe Williams, Holger Seelig, and Nicholas
>>>>>>>> Polys for contributing to this analysis and potential improvement.
>>>>>>>>
>>>>>>>> All feedback welcome! This simple functional refinement has
>>>>>>>> potential for much X3D scalability and extensibility.
>>>>>>>>
>>>>>>>> Thanks in advance for considering the possibilities.
>>>>>>>>
>>>>>>>> all the best, Don
>>>>>>>> --
>>>>>>>> X3D Graphics, Maritime Robotics, Distributed Simulation
>>>>>>>> Relative Motion Consulting https://RelativeMotion.info
>>>>>>>> <https://relativemotion.info/>
>>>>>>>> _______________________________________________
>>>>>>>> x3d-public mailing list
>>>>>>>> x3d-public at web3d.org
>>>>>>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>>>>>>
>>>>>>> _______________________________________________
>>>>>> x3d-public mailing list
>>>>>> x3d-public at web3d.org
>>>>>> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>>>>>>
>>>>>>
>>>>>>
>>>>>
>> _______________________________________________
> x3d-public mailing list
> x3d-public at web3d.org
> http://web3d.org/mailman/listinfo/x3d-public_web3d.org
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20251019/e068c5d2/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 92627 bytes
Desc: not available
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20251019/e068c5d2/attachment-0002.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 86603 bytes
Desc: not available
URL: <http://web3d.org/pipermail/x3d-public_web3d.org/attachments/20251019/e068c5d2/attachment-0003.png>
More information about the x3d-public
mailing list
