Nodes of the following types may be specified in the backMaterial field of the Appearance node:

• Material
• PhysicalMaterial
• UnlitMaterial

This set may be extended by creating new nodes derived from the X3DOneSidedMaterialNode abstract base type.

The solid field, described in the 11.2.3 Common geometry fields, controls whether the geometry is visible from the back side.

• When solid is TRUE, the back faces are not visible at all.
• When solid is FALSE, the back faces of the geometry are lit, using an inverted normal vector than the corresponding front faces.

Using the Appearance field backMaterial allows rendering the front and back sides of the polygon with different material properties. It is meaningful only when solid is FALSE, since otherwise the back faces are never rendered. When the solid is TRUE, the value of backMaterial has no effect on rendering.

TwoSidedMaterial (deprecated) provides a similar functionality (through its separateBackColor field) but limited only to the Phong lighting model.

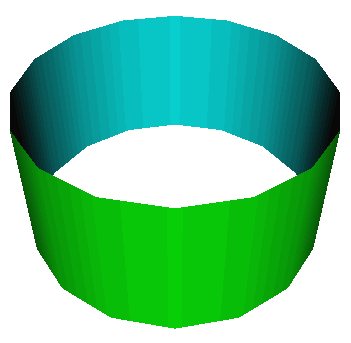

Figure 12.1 depicts the effects of the Appearance field backMaterial node.

Several constraints pertain to the backMaterial field value, to make the definition reasonable and easy to implement by the browsers.

• The backMaterial field can have a value different than NULL only when the material field also has a value different than NULL.
• It is not allowed to provide a backMaterial when the material specifies a TwoSidedMaterial (deprecated).
• When both the material and backMaterial are provided (not NULL), it is required that they:
  1. Specify the same node class. In other words, both of them should be Material, or both should be PhysicalMaterial, or both should be UnlitMaterial.
  2. Use the same textures with the same mapping. In other words, the values of the fields xxxTexture and xxxTextureMapping documented in 12.2.4 Texture mapping specified in material nodes shall be equal for both front and back materials. The author should use the DEF / USE mechanism to have the same references to texture nodes.

In effect, the front and back material parameters may differ only in their scalar or vector values. For example, front side may have a different diffuseColor than the back side.

To summarize, the following combinations are allowed:

• Both material and backMaterial are NULL. In this case we have an unlit (pure white) material, when viewed from both the front and back side.

  This case is exactly equivalent to using an UnlitMaterial with default emissiveColor white for both material and backMaterial.

• material is a TwoSidedMaterial node, backMaterial is NULL.

  This case is only provided for compatibility. The TwoSidedMaterial is deprecated since X3D 4.0. Whether the rendering parameters are the same, or different, for front and back sides is determined by the separateBackColor field of the relevant TwoSidedMaterial node.

• material contains a Material, PhysicalMaterial or UnlitMaterial node, and backMaterial is NULL.

  In this case, both front and back sides will be rendered with the same parameters. This case is exactly equivalent to reusing the same material node (through DEF / USE mechanism) for both material and backMaterial fields.

• material contains a Material, PhysicalMaterial or UnlitMaterial node, and backMaterial also contains a node of the same type.

  In this case, some front and back material parameters may differ.

12.2.4 Texture mapping specified in material nodes

The X3DOneSidedMaterialNode and descendants (Material, PhysicalMaterial, UnlitMaterial) introduce a number of fields to modify material parameters using textures. They are consistently defined by a pair of fields like this:

  SFNode   [in,out] xxxTexture        NULL
  SFString [in,out] xxxTextureMapping ""

The field xxxTexture indicates a texture node.

The xxxTextureMapping determines the texture coordinates and texture coordinates transformation for given texture xxxTexture.

The corresponding texture coordinate and texture coordinate transformation nodes have a field mapping that will match the value of the xxxTextureMapping field. See the X3DSingleTextureCoordinateNode and X3DSingleTextureTransformNode definitions.

Multiple textures may use the same texture coordinates and their transformations. For example, it is common that both normalTextureMapping and diffuseTextureMapping are equal, if the graphic artist prepared both normalTexture and diffuseTexture simultaneously, assuming the same mapping.

12.2.4.1 Texture coordinates

Let's define a list of texture coordinates for each geometry node like this:

• If the geometry field doesn't have a texCoord field then this list is empty.

  Most geometric objects with a predefined geometry (e.g. Sphere) don't have texCoord field. Most geometric objects with geometry defined by the author (e.g. all the nodes derived from X3DComposedGeometryNode) have texCoord field.

• Otherwise, if the value of the texCoord field is NULL, then this list is again empty.
• Otherwise, if the value of the texCoord field is a single node derived from X3DSingleTextureCoordinateNode, then place this one node on the list.

  X3DSingleTextureCoordinateNode includes all texture coordinate nodes (like TextureCoordinate or TextureCoordinateGenerator) except MultiTextureCoordinate.

• Otherwise, the value of this field must be MultiTextureCoordinate node. Then use the MultiTextureCoordinate.texCoord contents list as our list of texture coordinates.

Note: The above definition means that using a MultiTextureCoordinate with exactly one child is equivalent to using this child directly. This is a general rule in X3D 4.0, see also the MultiTextureCoordinate specification for details and an example.

All the X3DSingleTextureCoordinateNode nodes on the list of texture coordinates defined above must have a different mapping value. An exception is the empty mapping value, which may occur many times.

If the xxxTextureMapping field is not empty, it must refer to a corresponding X3DSingleTextureCoordinateNode node on a list of texture coordinates.

If the xxxTextureMapping field is empty, then the first item on a list of texture coordinates is used (regardless of it's mapping value). Only if no such texture coordinate exists (the list is empty), then then default texture coordinates for the specific geometry node are used.

The algorithm to perform the default texture coordinate calculation is described at each geometry node. For example IndexedFaceSet determines the coordinates based on the local bounding box sizes, Box has the texture applied 6 times on 6 faces etc.

Hint for implementations: This section makes an important guarantee. Generating default texture coordinates only needs to be done when the texCoord field of the geometry is empty, or contains an empty MultiTextureCoordinate node. In all other cases, you know that default texture coordinates are not necessary, because all textures will use one of the coordinates in the texCoord list.

This is an important property, because browsers may want to avoid generating default texture coordinates as it is a time-consuming process (e.g. requires to iterate over vertexes at least twice in case of IndexedFaceSet) and often not necessary (models exported by 3D authoring software typically have all texture coordinates provided in the file).

So we wanted to enable this optimization, and make it easy to detect looking only at texCoord contents. In effect, it doesn't matter what Appearance or material will be used with this geometry node — you can easily avoid most cases when default texture coordinates would be unused just by inspecting the geometry texCoord value.

12.2.4.2 Texture coordinates transformation

Let's define a list of texture transformations for each geometry node like this:

• If the shape uses no Appearance node then this list is empty.
• Otherwise, if the value of Appearance.textureTransform is NULL, then this list is again empty.
• Otherwise, if the value of Appearance.textureTransform is a single node X3DSingleTextureTransformNode, then place this one node in the list.

  Most texture transformation nodes are derived from X3DSingleTextureTransformNode, like TextureTransform and TextureTransform3D. But not MultiTextureTransform.

• Otherwise, the value of Appearance.textureTransform must be MultiTextureTransform. Then use the MultiTextureTransform.textureTransform contents as our list of texture transformations.

Note that we treat a MultiTextureTransform with a single child always the same as using this child directly. This is a general rule in X3D 4.0, see also the MultiTextureTransform specification for details and an example.

If the xxxTextureMapping field is not empty, it must refer to a corresponding X3DSingleTextureTransformNode node within the list of texture transformations. The X3DSingleTextureTransformNode node must have equal mapping value.

If the xxxTextureMapping is an empty string, then the first item on a list of texture transformations is used (regardless of it's mapping value). If the list is empty, no texture transformation is used.

Note: Throughout this section, we treat empty string as a special case for xxxTextureMapping and mapping fields. Such mapping names are allowed (they are even the default) but they do not constitute a "match". It would be error-prone if two empty mapping values would match, as it's easy to use them accidentally, since they are the default field values. Instead, empty xxxTextureMapping just indicates "use the first coordinates / transformations" — this is simplest and most natural.

12.2.5 Coexistence of textures specified in material nodes with the "Appearance.texture" field

In X3D 4.0, models can specify textures using the xxxTexture fields inside the various X3DOneSidedMaterialNode descendants. This allows to control every material parameter by a different texture.

Alternatively, models can also use the mechanism known from X3D 3.x, and provide a texture inside the Appearance.texture field. This is also the only way to use the MultiTexture node (which cannot be placed in xxxTexture fields, as it would make implementation complicated).

The exact behavior of MultiTexture node and Appearance.texture is this:

1. If the Appearance.material is Material, and the Material.diffuseTexture is NULL, then Appearance.texture affects the diffuseParameter for the lighting equation.

   In a way, Appearance.texture performs then the role of Material.diffuseTexture. It can even use MultiTexture to calculate the diffuse parameter by a composition (e.g. addition or multiplication) of other textures.

   The Material.diffuseTextureMapping value doesn't matter in this case.

2. If the Appearance.material is PhysicalMaterial, and the PhysicalMaterial.baseTexture is NULL, then Appearance.texture affects the baseParameter for the lighting equation.

   The PhysicalMaterial.baseTextureMapping value doesn't matter in this case.

3. If the Appearance.material is UnlitMaterial, and the UnlitMaterial.emissiveTexture is NULL, then Appearance.texture affects the emissiveParameter for the lighting equation.

   The UnlitMaterial.emissiveTextureMapping value doesn't matter in this case.

4. Otherwise, if the Appearance.material is NULL, then we behave as if the UnlitMaterial with all fields at default was used. So the Appearance.texture affects the emissiveParameter for the lighting equation, and is used with the unlit lighting model.

Note that when the Appearance.texture is used to calculate one of the parameters described above, the texture coordinates/transformations are determined following the MultiTexture specification. This means that MultiTextureCoordinate and MultiTextureTransform nodes can be used, with the order corresponding to the order of textures inside MultiTexture.texture list. If the Appearance.texture is not MultiTexture then the first set of texture coordinates/transformations are used. See the MultiTextureCoordinate and MultiTextureTransform specification for details.

The 17 Lighting component describes the exact equations to calculate the lighting parameters, consistent with the above description.

X3DAppearanceChildNode : X3DNode {
  SFNode [in,out] metadata NULL [X3DMetadataObject]
}

X3DAppearanceNode : X3DNode {
  SFNode [in,out] metadata NULL [X3DMetadataObject]
}

X3DMaterialNode : X3DAppearanceChildNode {
  SFNode [in,out] metadata NULL [X3DMetadataObject]
}

1. Abstract X3DOneSidedMaterialNode.

   In turn, the X3DOneSidedMaterialNode is a descendant for all non-abstract and non-deprecated material nodes that you shall use in X3D models:

   • Material (Phong lighting model)
   • PhysicalMaterial (physically-based lighting model)
   • UnlitMaterial (trivial lighting model that ignores light sources, for non-realistic rendering and special effects)
2. TwoSidedMaterial (deprecated)

12.3.4 X3DOneSidedMaterialNode

X3DOneSidedMaterialNode : X3DMaterialNode {
  SFColor  [in,out] emissiveColor           0 0 0  [0, 1]
  SFNode   [in,out] emissiveTexture         NULL   [X3DSingleTextureNode]
  SFString [in,out] emissiveTextureMapping  ""

  SFNode   [in,out] metadata                NULL   [X3DMetadataObject]

  SFNode   [in,out] normalTexture           NULL   [X3DTexture2DNode]
  SFString [in,out] normalTextureMapping    ""
  SFFloat  [in,out] normalScale             1      [0, ∞]
}

Editorial note: We consider merging this abstract node with X3DMaterialNode. One one hand, it would simplify the hierarchy. On the other hand, (deprecated) TwoSidedMaterial would be left in a weird state, with fields it doesn't use (like emissiveTexture, normalTexture...). Implementations that still support TwoSidedMaterial would need to "invent" a class similar to "X3DOneSidedMaterialNode" on their own. See here for details.

This is the base node type for material nodes that describe how the shape looks like from one side.

This node defines common properties for a lighting calculation, but independent of the lighting model (Phong, physically-based, unlit).

This node can be used within Appearance.material or Appearance.backMaterial.

The normalTexture field affects normal vectors information (surface curvature) in the following way:

• Each normal encoded in a texture is a 3D vector (normalized direction).

  3D direction of each normal shall be calculated from texture RGB color, using this equation:

  normal.xyz = normalize((textureSample(normalTexture).rgb * vec3(2,2,2) - vec3(1,1,1)) * vec3(normalScale, normalScale, 1))

  That is, assuming normalScale equal 1 (default), the red color component is linearly mapped from [0..1] to [-1..1] range and represents the X axis of the normal vector. Analogously the green component is mapped to Y, and the blue component is mapped to Z.

• The normals are provided in the tangent space.

  In tangent space:

  • The (0,0,1) vector is pointing perfectly outward from a polygon.

    More precisely, the "outward" direction (mapped to (0,0,1) in tangent space) is the direction of the "normal vector" derived from other X3D mechanisms: from the per-vertex or per-face normal vectors (if provided in the Normal node), or calculating the normals automatically (e.g. using IndexedFaceSet.creaseAngle).

  • The vectors (1,0,0) and (0,1,0) in the tangent space indicate the direction where the texture coordinate U and V grows. Naturally, they are adjusted to be always orthogonal to (0,0,1) and each other.

    In the future we may add to the X3D standard a way to provide explicit tangent vectors. In X3D 4.0, the implementation should always calculate tangent and bitangent vectors using a standard algorithm, like the MikkTSpace algorithm.

• Observe that a correct normalmap texture is typically blueish, since most of the normals on a more-or-less smooth surface revolve around (0,0,1), thus the texture colors revolve around (0.5,0.5,1).
• Alpha channel of the normalTexture is ignored by the calculations. X3D browsers can use the alpha channel of the normalTexture to specify heights (from which the normal vectors have been derived). In the current X3D standard version, these heights are not used for anything, although browsers may already use them for browser-specific rendering effects (for example to perform parallax bump mapping or displacement, activated by browser-specific extensions).

The emissiveColor, together with emissiveTexture, allow to model "glowing" objects. This can be useful for displaying unlit (pre-lit) models (where the light energy of the room is computed explicitly), or for displaying scientific data. To display an "unlit" object (whose visible color should not be modified by any light in the scene), author can use UnlitMaterial node.

The emissiveTexture RGB channel is multiplied with the emissiveColor to yield the emissiveParameter in the lighting equations.

The meaning of the alpha channel of the emissiveTexture depends on the X3DOneSidedMaterialNode descendant. It is ignored by Material and PhysicalMaterial. It is used, as the transparency factor, by the UnlitMaterial. Across the specification, the treatment of Material.diffuseTexture, PhysicalMaterial.baseTexture and UnlitMaterial.emissiveTexture is consistent: these "main" textures provide the transparency information for given material. For details, refer to the documentation of each X3DOneSidedMaterialNode descendant.

See the section 12.2.4 Texture mapping specified in material nodes for a description how the texture coordinates and texture coordinate transformations are determined based on the xxxTextureMapping fields of this node.

X3DShapeNode : X3DChildNode, X3DBoundedObject {
  SFNode  [in,out] appearance  NULL     [X3DAppearanceNode]
  SFBool  [in out] bboxDisplay FALSE
  SFNode  [in,out] geometry    NULL     [X3DGeometryNode]
  SFNode  [in,out] metadata    NULL     [X3DMetadataObject]
  SFBool  [in out] visible     TRUE
  SFVec3f []       bboxCenter  0 0 0    (-∞,∞)
  SFVec3f []       bboxSize    -1 -1 -1 [0,∞) or −1 −1 −1
}

12.4.1 AcousticProperties

AcousticProperties : X3DAppearanceChildNode  {
  SFFloat [in,out] absorption 0    [0,1]
  SFFloat [in,out] diffuse    0    [0,1]
  SFNode  [in,out] metadata   NULL [X3DMetadataObject]
  SFFloat [in,out] refraction 0    [0,1]
  SFFloat [in,out] specular   0    [0,1]
}

The AcousticProperties node specifies the interaction of sound waves with the characteristics of objects in the scene. Properties influencing sound propagation include surface-related physical phenomena such as the specular reflection, diffuse reflection, absorption, and refraction coefficients of materials. These coefficient values are expected to fully account for physical and structural characteristics of the associated geometry such as width, height, thickness, shape, softness and/or hardness, and density variations.

The absorption field specifies the sound absorption coefficient of a surface which is the ratio of the sound intensity absorbed or otherwise not reflected by a specific surface that of the initial sound intensity. This characteristic depends on the nature and thickness of the material. Sound energy is partially absorbed when it encounters fibrous or porous materials, panels that have some flexibility, volumes of air that resonate, and openings in room boundaries (e.g. doorways). Moreover, the absorption of sound by a particular shape depends on the angle of incidence and frequency of the sound wave.

The diffuse field describes the diffuse coefficient of sound reflection. This is one of the physical phenomena of sound that occurs when a sound wave strikes a plane surface, and part of the sound energy is reflected back into space in multiple directions.

The refraction field describes the sound refraction coefficient of a medium, which determines the change in propagation direction of a sound wave when it obliquely crosses the boundary between two mediums where its speed is different. These relationships are described by Snell's Law.

The specular field describes the specular coefficient of sound reflection, which is one of the physical phenomena of sound that occurs when a sound wave strikes a plane surface. Part of the sound energy is directly reflected back into space, where the angle of reflection is equal to the angle of incidence.

Appearance : X3DAppearanceNode {
  SFNode [in,out] acousticProperties NULL [AcousticProperties]
  SFNode [in,out] backMaterial       NULL [X3DOneSidedMaterialNode]
  SFNode [in,out] fillProperties     NULL [FillProperties]
  SFNode [in,out] lineProperties     NULL [LineProperties]
  SFNode [in,out] pointProperties    NULL [PointProperties]
  SFNode [in,out] material           NULL [X3DMaterialNode]
  SFNode [in,out] metadata           NULL [X3DMetadataObject]
  MFNode [in,out] shaders            []   [X3DShaderNode]
  SFNode [in,out] texture            NULL [X3DTextureNode]
  SFNode [in,out] textureTransform   NULL [X3DTextureTransformNode]
}

The backMaterial field, if specified, shall contain a Material, PhysicalMaterial or UnlitMaterial node. It is only allowed to define a backMaterial if the material is also defined (not NULL). The node type provided to backMaterial (if any) must match the node type provided to material. This field allows to render back faces with a different material parameters than the front faces. The meaning and all constraints of this field are explained in the section Two-sided materials.

FillProperties : X3DAppearanceChildNode {
  SFBool  [in,out] filled     TRUE
  SFColor [in,out] hatchColor 1 1 1 [0,1]
  SFBool  [in,out] hatched    TRUE
  SFInt32 [in,out] hatchStyle 1     [0,∞)
  SFNode  [in,out] metadata   NULL  [X3DMetadataObject]
}

LineProperties : X3DAppearanceChildNode {
  SFBool  [in,out] applied              TRUE
  SFInt32 [in,out] linetype             1    [1,∞)
  SFFloat [in,out] linewidthScaleFactor 0    (-∞,∞)
  SFNode  [in,out] metadata             NULL [X3DMetadataObject]
}

Material : X3DOneSidedMaterialNode {
  SFFloat  [in,out] ambientIntensity          0.2          [0,1]
  SFNode   [in,out] ambientTexture            NULL         [X3DSingleTextureNode]
  SFString [in,out] ambientTextureMapping     ""

  SFColor  [in,out] diffuseColor              0.8 0.8 0.8  [0,1]
  SFNode   [in,out] diffuseTexture            NULL         [X3DSingleTextureNode]
  SFString [in,out] diffuseTextureMapping     ""

  SFColor  [in,out] emissiveColor             0 0 0        [0,1]
  SFNode   [in,out] emissiveTexture           NULL         [X3DSingleTextureNode]
  SFString [in,out] emissiveTextureMapping    ""

  SFNode   [in,out] metadata                  NULL         [X3DMetadataObject]

  SFNode   [in,out] normalTexture             NULL         [X3DTexture2DNode]
  SFString [in,out] normalTextureMapping      ""
  SFFloat  [in,out] normalScale               1            [0, ∞]

  SFFloat  [in,out] occlusionStrength         1            [0,1]
  SFNode   [in,out] occlusionTexture          NULL         [X3DTexture2DNode]
  SFString [in,out] occlusionTextureMapping   ""

  SFFloat  [in,out] shininess                 0.2          [0,1]
  SFNode   [in,out] shininessTexture          NULL         [X3DSingleTextureNode]
  SFString [in,out] shininessTextureMapping   ""

  SFColor  [in,out] specularColor             0 0 0        [0,1]
  SFNode   [in,out] specularTexture           NULL         [X3DSingleTextureNode]
  SFString [in,out] specularTextureMapping    ""

  SFFloat  [in,out] transparency              0            [0,1]
}

The Material node specifies surface material properties for associated geometry nodes. It indicates that a surface is using Phong lighting model. 17 Lighting component contains a detailed description of the X3D lighting model equations.

The material parameters are specified as scalars or RGB colors in the X3D file. All of the SFFloat and SFColor fields in the Material node range from 0.0 to 1.0.

Moreover every material parameter can be adjusted using a texture. This allows to vary this parameter across the surface. The information sampled from the texture is always multiplied by the simple scalar/color fields.

Examples of texture usage:

• Texture assigned to the diffuseTexture controls the most intuitive "visible color of the object". This is the most often used texture.
• Texture assigned to the specularTexture allows the surface to be partially shiny (white values in the texture) and partially matte (black values in the texture).

The fields in the Material node determine how light reflects off an object to create color:

1. The ambientIntensity and ambientTexture fields specify how much ambient light from light sources this surface shall reflect. Ambient light is omnidirectional and depends only on the number of light sources, not their positions with respect to the surface.

   Ambient parameter is calculated as ambientIntensity × diffuseColor × textureSample(ambientTexture).rgb.

2. The diffuseColor and diffuseTexture fields reflect all X3D light sources depending on the angle of the surface with respect to the light source. The more directly the surface faces the light, the more diffuse light reflects.
3. The emissiveColor and emissiveTexture fields model "glowing" or "unlit" objects. See X3DOneSidedMaterialNode for the description of these fields.
4. The specularColor, specularTexture, shininess and shininessTexture fields determine the specular highlights (e.g., the shiny spots on an apple).

   When the angle from the light to the surface is close to the angle from the surface to the viewer, the specularColor × textureSample(specularTexture).rgb is added to the diffuse and ambient color calculations.

   Lower shininess values produce soft glows, while higher values result in sharper, smaller highlights. Shininess is calculated as shininess × textureSample(shininessTexture).a.

5. The transparency field (together with alpha channel of the diffuseTexture) specifies how "clear" an object is, with 1.0 being completely transparent, and 0.0 completely opaque.

   The transparency determines the opacity as opacity = 1.0 - transparency. This is then multiplied by the alpha channel of diffuseTexture to determine the final alpha of the rendered pixel.

The RGB channels of diffuseTexture, specularTexture and emissiveTexture are multiplied by the corresponding diffuseColor, specularColor, emissiveColor before being used in the current lighting calculation. The alpha channel of a diffuseTexture is multiplied by the material opacity (which equals just 1.0 - transparency). The alpha channels contents of specularTexture and emissiveTexture are ignored.

The shininessTexture alpha channel contains values multiplied with the shininess factor of the Material node. The RGB channels contents of the shininessTexture are ignored.

It is expected, and advised, that authors reuse the same texture node for specularTexture and shininessTexture. The specular data is deliberately contained in different channels (RGB) than the shininess data (Alpha).

The optional occlusionTexture can be used to indicate areas of indirect lighting, typically called ambient occlusion. Only the Red channel of the texture is used for the computation, the other channels are ignored. Higher values indicate areas that should receive full indirect lighting and lower values indicate no indirect lighting. The occlusionStrength determines how much does the occlusion texture affect the final result.

See the section 12.2.4 Texture mapping specified in material nodes for a description how the texture coordinates and texture coordinate transformations are determined based on the xxxTextureMapping fields of this node.

12.4.6 PhysicalMaterial

PhysicalMaterial : X3DOneSidedMaterialNode {
  SFColor  [in,out] baseColor                       1 1 1  [0,1]
  SFNode   [in,out] baseTexture                     NULL   [X3DSingleTextureNode]
  SFString [in,out] baseTextureMapping              ""

  SFFloat  [in,out] metallic                        1      [0,1]
  SFNode   [in,out] metallicRoughnessTexture        NULL   [X3DSingleTextureNode]
  SFString [in,out] metallicRoughnessTextureMapping ""

  SFColor  [in,out] emissiveColor                   0 0 0  [0,1]
  SFNode   [in,out] emissiveTexture                 NULL   [X3DSingleTextureNode]
  SFString [in,out] emissiveTextureMapping          ""

  SFNode   [in,out] metadata                        NULL   [X3DMetadataObject]

  SFNode   [in,out] normalTexture                   NULL   [X3DTexture2DNode]
  SFString [in,out] normalTextureMapping            ""
  SFFloat  [in,out] normalScale                     1      [0, ∞]

  SFFloat  [in,out] occlusionStrength               1      [0,1]
  SFNode   [in,out] occlusionTexture                NULL   [X3DSingleTextureNode]
  SFString [in,out] occlusionTextureMapping         ""

  SFFloat  [in,out] roughness                       1      [0,1]

  SFFloat  [in,out] transparency                    0      [0,1]
}

The PhysicalMaterial node specifies surface material properties for associated geometry nodes. It indicates that a physical lighting model should be used for the computation. 17 Lighting component contains a detailed description of the X3D lighting model equations.

The physical lighting equation, as an input, relies on the following parameters:

• baseParameter (RGB color) is, in simple cases, a multiplication of baseTexture RGB channel (if such texture was specified) with the baseColor.

  In other words, it is calculated at every pixel as baseColor × textureSample(baseTexture).rgb.

  Note: This interpretation is true in most cases, but in general it is a simplification of what actually happens. The texture may also come from Appearance.texture, and it can even be MultiTexture in which case it is not necessarily multiplied. See the 17.2.2.6 Physical lighting model for the exact specification how the baseParameter is calculated in every possible case.

• metallicParameter is a multiplication of metallic with the Blue texture channel of metallicRoughnessTexture (if such texture was specified).

  In other words, it is calculated at every pixel as metallic × textureSample(metallicRoughnessTexture).b.

• roughnessParameter is a multiplication of roughness with the Green texture channel of metallicRoughnessTexture (if such texture was specified).

  In other words, it is calculated at every pixel as roughness × textureSample(metallicRoughnessTexture).g.

When calculating metallicParameter and roughnessParameter terms, the Red and Alpha channels of the metallicRoughnessTexture are ignored. It is possible to use the same texture for metallicRoughnessTexture and occlusionTexture, as they deliberately look at different channels, so all the information can be contained in one RGB texture.

The final alpha, used for blending or alpha-testing, is calculated as baseTexture alpha channel multiplied with the opacity (1.0 - transparency). This is consistent with the behavior of diffuseColor, diffuseTexture and transparency on the Phong Material. If the baseTexture was not specified, it is also possible to use the Application.texture. See the 17.2.2.6 Physical lighting model for the exact specification, and the 12.2.5 Coexistence of textures specified in material nodes with the "Appearance.texture" field for a description how Appearance.texture is used.

Moreover the PhysicalMaterial defines the emissiveColor and optional emissiveTexture. The resulting emissiveParameter term is simply added to the pixel color, this behavior is consistent for all X3D materials.

The optional occlusionTexture can be used to indicate areas of indirect lighting, typically called ambient occlusion. Only the Red channel of the texture is used for the computation, the other channels are ignored. Higher values indicate areas that should receive full indirect lighting and lower values indicate no indirect lighting. The occlusionStrength determines how much does the occlusion texture affect the final result.

Physical interpretation of the material parameters:

Note: The physical material properties of X3D are deliberately consistent with the glTF 2.0 material definition. Effectively, converting between (in both directions) between X3D PhysicalMaterial and glTF 2.0 material definitions is trivial.

The description of the parameter meaning below follows very closely the glTF specification.

The baseParameter color has two different interpretations depending on the value of metallicParameter. When the material is a metal, the baseParameter color is the specific measured reflectance value at normal incidence (F₀). For a non-metal the baseParameter color represents the reflected diffuse color of the material. In this model it is not possible to specify a F₀ value for non-metals, and a linear value of 4% (0.04) is used.

The following equations show how to calculate bidirectional reflectance distribution function (BRDF) inputs (c_diff, F₀, α) from the metallic-roughness material properties.

const dielectricSpecular = rgb(0.04, 0.04, 0.04)
const black = rgb(0, 0, 0)
cdiff = lerp(baseParameter * (1 - dielectricSpecular.r), black, metallicParameter)
F0 = lerp(dieletricSpecular, baseParameter, metallicParameter)
α = roughnessParameter ^ 2

See the section 12.2.4 Texture mapping specified in material nodes for a description how the texture coordinates and texture coordinate transformations are determined based on the xxxTextureMapping fields of this node.

12.4.7 PointProperties

PointProperties : X3DAppearanceChildNode {
  SFFloat  [in,out] pointSizeScaleFactor  1 [1,∞)
  SFFloat  [in,out] pointSizeMinValue     1 [0,∞)
  SFFloat  [in,out] pointSizeMaxValue     1 [0,∞)
  SFVec3f  [in,out] attenuation           1 0 0 [0,∞)
  SFString [in,out] colorMode             "TEXTURE_AND_POINT_COLOR" ["POINT_COLOR" | "TEXTURE_COLOR" | "TEXTURE_AND_POINT_COLOR"]
  SFNode   [in,out] metadata              NULL [X3DMetadataObject]
}

The PointProperties node specifies additional properties to be applied to all point geometry. The colour of the line is specified by the associated Material node or X3DColorNode color values.

pointSizeScaleFactor is a value determining the nominal point size before modification by the sizing modifications, as determined by the pointSizeMinValue, pointSizeMaxValue, and attenuation values discussed below. The nominal rendered point size is a browser-dependent minimum renderable point size.

pointSizeMinValue is minimum allowed scaling factor on nominal browser point scaling. pointSizeMaxValue is maximum allowed scaling factor on nominal browser point scaling. The provided value for pointSizeMinValue must be less than or equal to value for pointSizeMaxValue.

The attenuation field defines a depth perception effect in a point cloud rendering by making points close to the viewer appear larger. The modification of point size depending on distance from the view occurs in two steps, starting with the nominal point size as determined by the pointSizeScaleFactor field. The attenuation field defines three parameters a, b, and c from the components of a single SFVec3f value:

a = attenuation[0]
b = attenuation[1]
c = attenuation[2]

Together these parameters define an attenuation factor 1/(a + b×r + c×r2) where r is the distance from the observer position (current viewpoint) to each point. The nominal point size is multiplied by the attenuation factor and then clipped to a minimum value of pointSizeMinValue × the minimum renderable point size, then clipped to a maximum size of pointSizeMaxValue × minimum renderable point size.

When a X3DTextureNode is defined in the same Appearance instance as PointProperties node, the points of a PointSet shall be displayed as point sprites using the given texture(s). The colorMode field has a blending effect on the rendering of point sprites. A value of:

• POINT_COLOR shall display the RGB channels of the color instance defined in X3DMaterialNode or X3DColorNode, and the A channel of the texture if any. If no color is associated to the point, the default RGB color (0, 0, 0) shall be used.
• TEXTURE_COLOR shall display the original texture with its RGBA channels and regardless to the X3DMaterialNode or X3DColorNode which might be associated to the point set.
• TEXTURE_AND_POINT_COLOR shall display the RGBA channels of a texture added to the RGB channels of the color defined in X3DMaterialNode or X3DColorNode node, and the A channel of the texture if any. If no color is associated to the point, the result shall be exactly the same as TEXTURE_COLOR.

If no X3DTextureNode is defined in the same Appearance instance as PointProperties, points of the PointSet shall be displayed anti-aliased and using their associated colors.

TODO reference/bibliography International register of items for markertype.

Shape : X3DShapeNode {
  SFNode  [in,out] appearance  NULL     [X3DAppearanceNode]
  SFBool  [in out] bboxDisplay FALSE
  SFNode  [in,out] geometry    NULL     [X3DGeometryNode]
  SFNode  [in,out] metadata    NULL     [X3DMetadataObject]
  SFBool  [in out] visible     TRUE
  SFVec3f []       bboxCenter  0 0 0    (-∞,∞)
  SFVec3f []       bboxSize    -1 -1 -1 [0,∞) or −1 −1 −1
}

TwoSidedMaterial : X3DMaterialNode {
  SFFloat [in,out] ambientIntensity     0.2         [0,1]
  SFFloat [in,out] backAmbientIntensity 0.2         [0,1]
  SFColor [in,out] backDiffuseColor     0.8 0.8 0.8 [0,1]
  SFColor [in,out] backEmissiveColor    0 0 0       [0,1]
  SFFloat [in,out] backShininess        0.2         [0,1]
  SFColor [in,out] backSpecularColor    0 0 0       [0,1]
  SFFloat [in,out] backTransparency     0           [0,1]
  SFColor [in,out] diffuseColor         0.8 0.8 0.8 [0,1]
  SFColor [in,out] emissiveColor        0 0 0       [0,1]
  SFNode  [in,out] metadata             NULL        [X3DMetadataObject]
  SFFloat [in,out] shininess            0.2         [0,1]
  SFBool  [in,out] separateBackColor    FALSE
  SFColor [in,out] specularColor        0 0 0       [0,1]
  SFFloat [in,out] transparency         0           [0,1]
}

12.4.10 UnlitMaterial

UnlitMaterial : X3DOneSidedMaterialNode {
  SFColor  [in,out] emissiveColor                   1 1 1  [0,1]
  SFNode   [in,out] emissiveTexture                 NULL   [X3DSingleTextureNode]
  SFString [in,out] emissiveTextureMapping          ""
  SFNode   [in,out] metadata                        NULL   [X3DMetadataObject]
  SFNode   [in,out] normalTexture                   NULL   [X3DTexture2DNode]
  SFString [in,out] normalTextureMapping            ""
  SFFloat  [in,out] normalScale                     1      [0, ∞]
  SFFloat  [in,out] transparency                    0      [0,1]
}

Material that is unaffected by light sources. Suitable to create various non-realistic effects, when the colors are defined explicitly and are not affected by the placement of the shape relative to the lights or camera.

The output color and opacity, called emissiveParameter by the lighting equations, are determined like this:

1. Use the emissiveColor field value as the emissiveParameter.rgb. Use the 1.0 - transparency as the emissiveParameter.a.
2. If shape is using Color node then the information from Color node overrides the emissiveParameter.rgb. If shape is using ColorRGBA node then the information from ColorRGBA overrides both the emissiveParameter.rgb and the emissiveParameter.a.

   Note: This is consistent with how Color or ColorRGBA override diffuseColor and transparency in case of Material.

3. If the emissiveTexture is not NULL, then it multiplies (component-wise) the emissiveParameter.rgb (multiplied by the texture RGB channels) and emissiveParameter.a (multiplied by the texture alpha channel).

   If the emissiveTexture is NULL, but Appearance.texture field is not NULL, then the same logic is applied to the Appearance.texture texture: it multiplies emissiveParameter.rgb and emissiveParameter.a. See 12.2.5 Coexistence of textures specified in material nodes with the "Appearance.texture" field for a description how is the Appearance.texture field used.

Note about default values: This node inherits the emissiveColor field from the X3DOneSidedMaterialNode ancestor, but the default value of this field changes: only for UnlitMaterial, the default emissiveColor is 1 1 1 (white), instead of 0 0 0 (black, default of X3DOneSidedMaterialNode.emissiveColor).

Implementation hint: Normal vectors information is not useful for the calculation of unlit material. Implementations can ignore the normal vectors provided in the geometry node (per-face or per-vertex) and in the normalTexture field. Implementations are encouraged to optimize this case, and not send unneeded normals data to GPU, and not calculate implicit normal vectors (normally derived from creaseAngle and ccw fields). However, there is an exception to this optimization: if the shape is using TextureCoordinateGenerator with some modes (CAMERASPACENORMAL, CAMERASPACEREFLECTIONVECTOR) then the shader code may need access to normals anyway.

See the section 12.2.4 Texture mapping specified in material nodes for a description how the texture coordinates and texture coordinate transformations are determined based on the xxxTextureMapping fields of this node.
