Schema definition -renderStyles

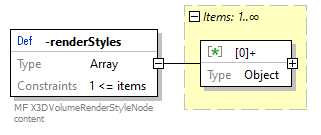

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4449.png
location C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
schema details
Description  MF X3DVolumeRenderStyleNode content
type Array
array constraints
Min Items  1
array items
[0]+  Schema
used by IsoSurfaceVolumeData / -renderStyle
SegmentedVolumeData / -renderStyle
source code "-renderStyles": {
    "description": "MF X3DVolumeRenderStyleNode content",
    "type": "array",
    "minItems": 1,
    "items": {
        "type": "object",
        "properties": {
            "BlendedVolumeStyle": {
                "$ref": "#/definitions/BlendedVolumeStyle"
            },
            "BoundaryEnhancementVolumeStyle": {
                "$ref": "#/definitions/BoundaryEnhancementVolumeStyle"
            },
            "CartoonVolumeStyle": {
                "$ref": "#/definitions/CartoonVolumeStyle"
            },
            "ComposedVolumeStyle": {
                "$ref": "#/definitions/ComposedVolumeStyle"
            },
            "EdgeEnhancementVolumeStyle": {
                "$ref": "#/definitions/EdgeEnhancementVolumeStyle"
            },
            "OpacityMapVolumeStyle": {
                "$ref": "#/definitions/OpacityMapVolumeStyle"
            },
            "ProjectionVolumeStyle": {
                "$ref": "#/definitions/ProjectionVolumeStyle"
            },
            "ShadedVolumeStyle": {
                "$ref": "#/definitions/ShadedVolumeStyle"
            },
            "SilhouetteEnhancementVolumeStyle": {
                "$ref": "#/definitions/SilhouetteEnhancementVolumeStyle"
            },
            "ToneMappedVolumeStyle": {
                "$ref": "#/definitions/ToneMappedVolumeStyle"
            },
            "ProtoInstance": {
                "$ref": "#/definitions/ProtoInstance"
            }
        },
        "additionalProperties": false
    }
}

Array item wildcard -renderStyles > array items [0]+ / Schema

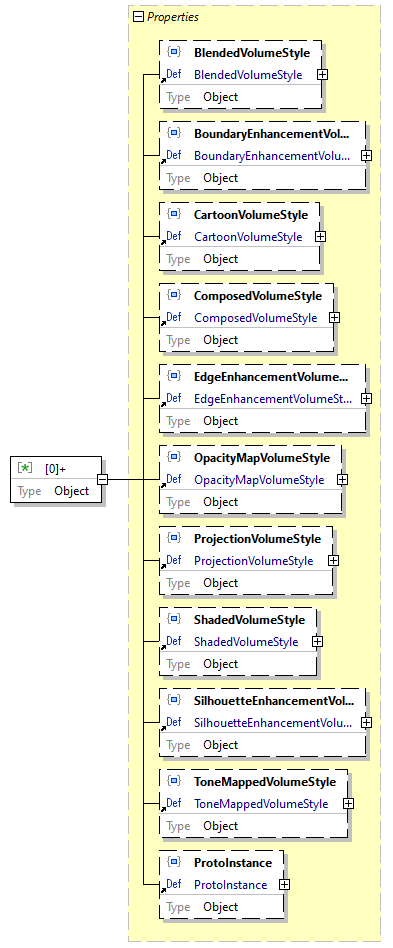

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4450.png
type Object
properties
Name   Occurrence
BlendedVolumeStyle   Optional
BoundaryEnhancementVolumeStyle   Optional
CartoonVolumeStyle   Optional
ComposedVolumeStyle   Optional
EdgeEnhancementVolumeStyle   Optional
OpacityMapVolumeStyle   Optional
ProjectionVolumeStyle   Optional
ShadedVolumeStyle   Optional
SilhouetteEnhancementVolumeStyle   Optional
ToneMappedVolumeStyle   Optional
ProtoInstance   Optional
source code {
    "type": "object",
    "properties": {
        "BlendedVolumeStyle": {
            "$ref": "#/definitions/BlendedVolumeStyle"
        },
        "BoundaryEnhancementVolumeStyle": {
            "$ref": "#/definitions/BoundaryEnhancementVolumeStyle"
        },
        "CartoonVolumeStyle": {
            "$ref": "#/definitions/CartoonVolumeStyle"
        },
        "ComposedVolumeStyle": {
            "$ref": "#/definitions/ComposedVolumeStyle"
        },
        "EdgeEnhancementVolumeStyle": {
            "$ref": "#/definitions/EdgeEnhancementVolumeStyle"
        },
        "OpacityMapVolumeStyle": {
            "$ref": "#/definitions/OpacityMapVolumeStyle"
        },
        "ProjectionVolumeStyle": {
            "$ref": "#/definitions/ProjectionVolumeStyle"
        },
        "ShadedVolumeStyle": {
            "$ref": "#/definitions/ShadedVolumeStyle"
        },
        "SilhouetteEnhancementVolumeStyle": {
            "$ref": "#/definitions/SilhouetteEnhancementVolumeStyle"
        },
        "ToneMappedVolumeStyle": {
            "$ref": "#/definitions/ToneMappedVolumeStyle"
        },
        "ProtoInstance": {
            "$ref": "#/definitions/ProtoInstance"
        }
    },
    "additionalProperties": false
}

Property -renderStyles > array items [0]+ / Schema / BlendedVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4451.png
property details
Occurrence  Optional
reference BlendedVolumeStyle
source code "BlendedVolumeStyle": {
    "$ref": "#/definitions/BlendedVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / BoundaryEnhancementVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4452.png
property details
Occurrence  Optional
reference BoundaryEnhancementVolumeStyle
source code "BoundaryEnhancementVolumeStyle": {
    "$ref": "#/definitions/BoundaryEnhancementVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / CartoonVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4453.png
property details
Occurrence  Optional
reference CartoonVolumeStyle
source code "CartoonVolumeStyle": {
    "$ref": "#/definitions/CartoonVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / ComposedVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4454.png
property details
Occurrence  Optional
reference ComposedVolumeStyle
source code "ComposedVolumeStyle": {
    "$ref": "#/definitions/ComposedVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / EdgeEnhancementVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4455.png
property details
Occurrence  Optional
reference EdgeEnhancementVolumeStyle
source code "EdgeEnhancementVolumeStyle": {
    "$ref": "#/definitions/EdgeEnhancementVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / OpacityMapVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4456.png
property details
Occurrence  Optional
reference OpacityMapVolumeStyle
source code "OpacityMapVolumeStyle": {
    "$ref": "#/definitions/OpacityMapVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / ProjectionVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4457.png
property details
Occurrence  Optional
reference ProjectionVolumeStyle
source code "ProjectionVolumeStyle": {
    "$ref": "#/definitions/ProjectionVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / ShadedVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4458.png
property details
Occurrence  Optional
reference ShadedVolumeStyle
source code "ShadedVolumeStyle": {
    "$ref": "#/definitions/ShadedVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / SilhouetteEnhancementVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4459.png
property details
Occurrence  Optional
reference SilhouetteEnhancementVolumeStyle
source code "SilhouetteEnhancementVolumeStyle": {
    "$ref": "#/definitions/SilhouetteEnhancementVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / ToneMappedVolumeStyle
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4460.png
property details
Occurrence  Optional
reference ToneMappedVolumeStyle
source code "ToneMappedVolumeStyle": {
    "$ref": "#/definitions/ToneMappedVolumeStyle"
}

Property -renderStyles > array items [0]+ / Schema / ProtoInstance
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p4461.png
property details
Occurrence  Optional
reference ProtoInstance
source code "ProtoInstance": {
    "$ref": "#/definitions/ProtoInstance"
}
