Schema definition Arc2D

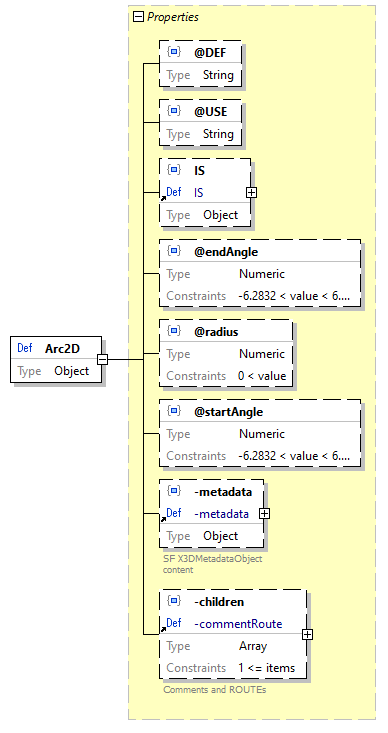

diagram
location	C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type	Object
properties	Name    Occurrence @DEF    Optional @USE    Optional IS    Optional @endAngle    Optional @radius    Optional @startAngle    Optional -metadata    Optional -children    Optional
used by	-allNodes > array items [0]+ / Schema / Arc2D -geometry / Arc2D
source code	"Arc2D": {     "type": "object",     "properties": {         "@DEF": {             "type": "string"         },         "@USE": {             "type": "string"         },         "IS": {             "$ref": "#/definitions/IS"         },         "@endAngle": {             "type": "number",             "exclusiveMinimum": -6.2832,             "exclusiveMaximum": 6.2832,             "default": 1.570796         },         "@radius": {             "type": "number",             "exclusiveMinimum": 0,             "default": 1         },         "@startAngle": {             "type": "number",             "exclusiveMinimum": -6.2832,             "exclusiveMaximum": 6.2832,             "default": 0         },         "-metadata": {             "$ref": "#/definitions/-metadata"         },         "-children": {             "$ref": "#/definitions/-commentRoute"         }     },     "additionalProperties": false }

Property Arc2D / @DEF

diagram
property details	Occurrence   Optional
type	String
source code	"@DEF": {     "type": "string" }

Property Arc2D / @USE

diagram
property details	Occurrence   Optional
type	String
source code	"@USE": {     "type": "string" }

Property Arc2D / IS

diagram
property details	Occurrence   Optional
reference	IS
source code	"IS": {     "$ref": "#/definitions/IS" }

Property Arc2D / @endAngle

diagram
property details	Occurrence   Optional
schema details	Default   1.570796
type	Numeric
numeric constraints	Minimum   -6.2832 Excl. Min   true Maximum   6.2832 Excl. Max   true
source code	"@endAngle": {     "type": "number",     "exclusiveMinimum": -6.2832,     "exclusiveMaximum": 6.2832,     "default": 1.570796 }

Property Arc2D / @radius

diagram
property details	Occurrence   Optional
schema details	Default   1
type	Numeric
numeric constraints	Minimum   0 Excl. Min   true
source code	"@radius": {     "type": "number",     "exclusiveMinimum": 0,     "default": 1 }

Property Arc2D / @startAngle

diagram
property details	Occurrence   Optional
schema details	Default   0
type	Numeric
numeric constraints	Minimum   -6.2832 Excl. Min   true Maximum   6.2832 Excl. Max   true
source code	"@startAngle": {     "type": "number",     "exclusiveMinimum": -6.2832,     "exclusiveMaximum": 6.2832,     "default": 0 }

Property Arc2D / -metadata

diagram
property details	Occurrence   Optional
reference	-metadata
source code	"-metadata": {     "$ref": "#/definitions/-metadata" }

Property Arc2D / -children

diagram
property details	Occurrence   Optional
reference	-commentRoute
source code	"-children": {     "$ref": "#/definitions/-commentRoute" }
