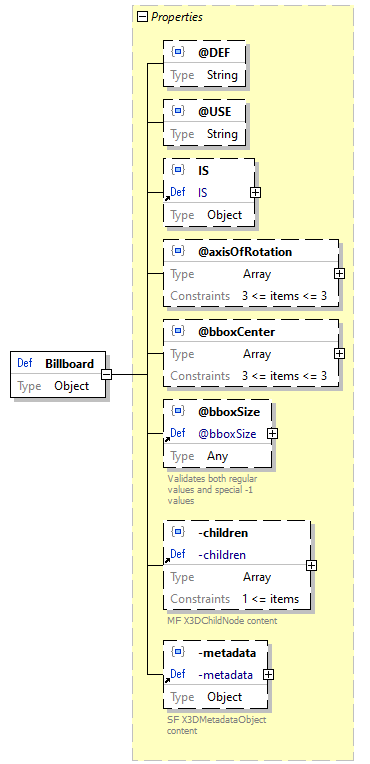

Schema definition Billboard

diagram
location	C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type	Object
properties	Name    Occurrence @DEF    Optional @USE    Optional IS    Optional @axisOfRotation    Optional @bboxCenter    Optional @bboxSize    Optional -children    Optional -metadata    Optional
used by	Scene / -children > array items [0]+ / Schema / Billboard TransformSensor / -targetObject > array items [0]+ / Schema / Billboard -allNodes > array items [0]+ / Schema / Billboard -child / Billboard -children > array items [0]+ / Schema / Billboard -grouping > array items [0]+ / Schema / Billboard -pickTarget > array items [0]+ / Schema / Billboard
source code	"Billboard": {     "type": "object",     "properties": {         "@DEF": {             "type": "string"         },         "@USE": {             "type": "string"         },         "IS": {             "$ref": "#/definitions/IS"         },         "@axisOfRotation": {             "type": "array",             "minItems": 3,             "maxItems": 3,             "items": [                 {                     "type": "number",                     "default": 0                 },                 {                     "type": "number",                     "default": 1                 },                 {                     "type": "number",                     "default": 0                 }             ],             "additionalItems": false         },         "@bboxCenter": {             "type": "array",             "minItems": 3,             "maxItems": 3,             "items": {                 "type": "number",                 "default": 0             }         },         "@bboxSize": {             "$ref": "#/definitions/@bboxSize"         },         "-children": {             "$ref": "#/definitions/-children"         },         "-metadata": {             "$ref": "#/definitions/-metadata"         }     },     "additionalProperties": false }

Property Billboard / @DEF

diagram
property details	Occurrence   Optional
type	String
source code	"@DEF": {     "type": "string" }

Property Billboard / @USE

diagram
property details	Occurrence   Optional
type	String
source code	"@USE": {     "type": "string" }

Property Billboard / IS

diagram
property details	Occurrence   Optional
reference	IS
source code	"IS": {     "$ref": "#/definitions/IS" }

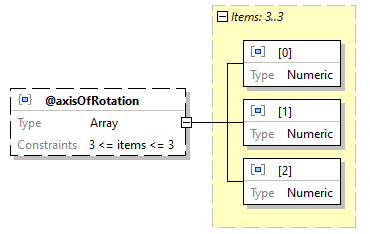

Property Billboard / @axisOfRotation

diagram
property details	Occurrence   Optional
type	Array
array constraints	Min Items   3 Max Items   3
array items	[0]   Schema [1]   Schema [2]   Schema
source code	"@axisOfRotation": {     "type": "array",     "minItems": 3,     "maxItems": 3,     "items": [         {             "type": "number",             "default": 0         },         {             "type": "number",             "default": 1         },         {             "type": "number",             "default": 0         }     ],     "additionalItems": false }

Array item Billboard / @axisOfRotation > array items [0] / Schema

diagram
schema details	Default   0
type	Numeric
source code	{     "type": "number",     "default": 0 }

Array item Billboard / @axisOfRotation > array items [1] / Schema

diagram
schema details	Default   1
type	Numeric
source code	{     "type": "number",     "default": 1 }

Array item Billboard / @axisOfRotation > array items [2] / Schema

diagram
schema details	Default   0
type	Numeric
source code	{     "type": "number",     "default": 0 }

Property Billboard / @bboxCenter

diagram
property details	Occurrence   Optional
type	Array
array constraints	Min Items   3 Max Items   3
array items	[0 - 2]   Schema
source code	"@bboxCenter": {     "type": "array",     "minItems": 3,     "maxItems": 3,     "items": {         "type": "number",         "default": 0     } }

Array item wildcard Billboard / @bboxCenter > array items [0]+ / Schema

diagram
schema details	Default   0
type	Numeric
source code	{     "type": "number",     "default": 0 }

Property Billboard / @bboxSize

diagram
property details	Occurrence   Optional
reference	@bboxSize
source code	"@bboxSize": {     "$ref": "#/definitions/@bboxSize" }

Property Billboard / -children

diagram
property details	Occurrence   Optional
reference	-children
source code	"-children": {     "$ref": "#/definitions/-children" }

Property Billboard / -metadata

diagram
property details	Occurrence   Optional
reference	-metadata
source code	"-metadata": {     "$ref": "#/definitions/-metadata" }
