Schema definition ContourPolyline2D

diagram
location	C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type	Object
properties	Name    Occurrence @DEF    Optional @USE    Optional IS    Optional @controlPoint    Optional -metadata    Optional -children    Optional
used by	Contour2D / -children > array items [0]+ / Schema / ContourPolyline2D -allNodes > array items [0]+ / Schema / ContourPolyline2D -nurbsCurve2D / ContourPolyline2D
source code	"ContourPolyline2D": {     "type": "object",     "properties": {         "@DEF": {             "type": "string"         },         "@USE": {             "type": "string"         },         "IS": {             "$ref": "#/definitions/IS"         },         "@controlPoint": {             "type": "array",             "minItems": 4,             "items": {                 "type": "number"             }         },         "-metadata": {             "$ref": "#/definitions/-metadata"         },         "-children": {             "$ref": "#/definitions/-commentRoute"         }     },     "additionalProperties": false }

Property ContourPolyline2D / @DEF

diagram
property details	Occurrence   Optional
type	String
source code	"@DEF": {     "type": "string" }

Property ContourPolyline2D / @USE

diagram
property details	Occurrence   Optional
type	String
source code	"@USE": {     "type": "string" }

Property ContourPolyline2D / IS

diagram
property details	Occurrence   Optional
reference	IS
source code	"IS": {     "$ref": "#/definitions/IS" }

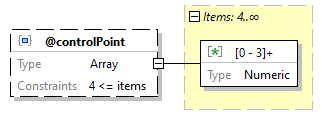

Property ContourPolyline2D / @controlPoint

diagram
property details	Occurrence   Optional
type	Array
array constraints	Min Items   4
array items	[0 - 3]+   Schema
source code	"@controlPoint": {     "type": "array",     "minItems": 4,     "items": {         "type": "number"     } }

Array item wildcard ContourPolyline2D / @controlPoint > array items [0]+ / Schema

diagram
type	Numeric
source code	{     "type": "number" }

Property ContourPolyline2D / -metadata

diagram
property details	Occurrence   Optional
reference	-metadata
source code	"-metadata": {     "$ref": "#/definitions/-metadata" }

Property ContourPolyline2D / -children

diagram
property details	Occurrence   Optional
reference	-commentRoute
source code	"-children": {     "$ref": "#/definitions/-commentRoute" }
