Schema definition TouchSensor

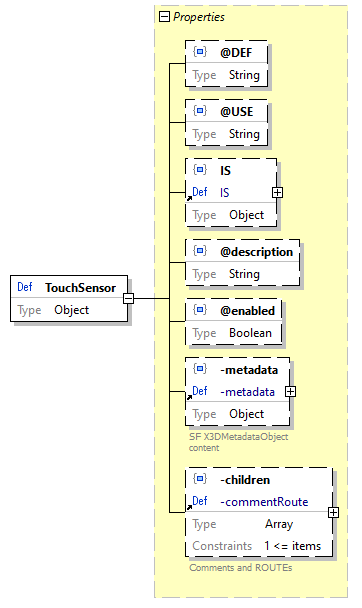

diagram
location	C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type	Object
properties	Name    Occurrence @DEF    Optional @USE    Optional IS    Optional @description    Optional @enabled    Optional -metadata    Optional -children    Optional
used by	Scene / -children > array items [0]+ / Schema / TouchSensor -allNodes > array items [0]+ / Schema / TouchSensor -child / TouchSensor -children > array items [0]+ / Schema / TouchSensor
source code	"TouchSensor": {     "type": "object",     "properties": {         "@DEF": {             "type": "string"         },         "@USE": {             "type": "string"         },         "IS": {             "$ref": "#/definitions/IS"         },         "@description": {             "type": "string"         },         "@enabled": {             "type": "boolean",             "default": true         },         "-metadata": {             "$ref": "#/definitions/-metadata"         },         "-children": {             "$ref": "#/definitions/-commentRoute"         }     },     "additionalProperties": false }

Property TouchSensor / @DEF

diagram
property details	Occurrence   Optional
type	String
source code	"@DEF": {     "type": "string" }

Property TouchSensor / @USE

diagram
property details	Occurrence   Optional
type	String
source code	"@USE": {     "type": "string" }

Property TouchSensor / IS

diagram
property details	Occurrence   Optional
reference	IS
source code	"IS": {     "$ref": "#/definitions/IS" }

Property TouchSensor / @description

diagram
property details	Occurrence   Optional
type	String
source code	"@description": {     "type": "string" }

Property TouchSensor / @enabled

diagram
property details	Occurrence   Optional
schema details	Default   true
type	Boolean
source code	"@enabled": {     "type": "boolean",     "default": true }

Property TouchSensor / -metadata

diagram
property details	Occurrence   Optional
reference	-metadata
source code	"-metadata": {     "$ref": "#/definitions/-metadata" }

Property TouchSensor / -children

diagram
property details	Occurrence   Optional
reference	-commentRoute
source code	"-children": {     "$ref": "#/definitions/-commentRoute" }

JSON Schema documentation generated by XMLSpy JSON Schema Editor http://www.altova.com/xmlspy/json-schema-editor.html
