element MetadataString

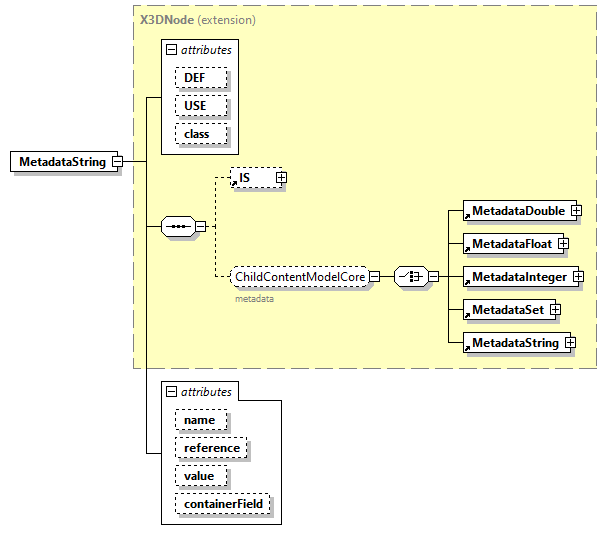

diagram
type	extension of X3DNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  XvlShell group  ChildContentModelCore
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. name   SFString            appinfo name attribute is ordinarily required, unless this is a USE node reference   SFString            value   MFString            containerField   containerFieldChoicesMetadata      metadata      appinfo Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.
annotation	appinfo The metadata provided by this node is contained in the strings of the value field. <xs:attribute name="additionalInterface" type="xs:string" default="X3DMetadataObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="MetadataString">   <xs:annotation>     <xs:appinfo> The metadata provided by this node is contained in the strings of the value field. <xs:attribute name="additionalInterface" type="xs:string" default="X3DMetadataObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/core.html#MetadataString"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNode">         <xs:attribute name="name" type="SFString">           <xs:annotation>             <xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>             <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->             <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>           </xs:annotation>         </xs:attribute>         <xs:attribute name="reference" type="SFString"/>         <xs:attribute name="value" type="MFString"/>         <xs:attribute name="containerField" type="containerFieldChoicesMetadata" default="metadata">           <xs:annotation>             <xs:appinfo>Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute MetadataString/@name

type	SFString
annotation	appinfo name attribute is ordinarily required, unless this is a USE node
source	<xs:attribute name="name" type="SFString">   <xs:annotation>     <xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>     <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->     <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>   </xs:annotation> </xs:attribute>

attribute MetadataString/@reference

type	SFString
source	<xs:attribute name="reference" type="SFString"/>

attribute MetadataString/@value

type	MFString
source	<xs:attribute name="value" type="MFString"/>

attribute MetadataString/@containerField

type	containerFieldChoicesMetadata
properties	default  metadata
facets	Kind  Value  Annotation enumeration  metadata appinfo this node provides metadata information regarding its parent node. enumeration  value appinfo parent node is MetadataSet, this node is providing information as part of a MetadataSet collection.
annotation	appinfo Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.
source	<xs:attribute name="containerField" type="containerFieldChoicesMetadata" default="metadata">   <xs:annotation>     <xs:appinfo>Default containerField='metadata' when providing information about the parent element itself, otherwise apply containerField='value' when this element contains payload metadata inside a parent/ancestor MetadataSet element.</xs:appinfo>   </xs:annotation> </xs:attribute>
