element ProtoDeclare

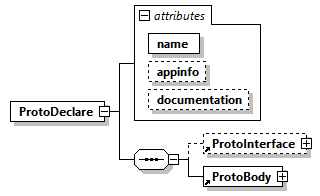

diagram x3d-3.0_diagrams/x3d-3.0_p108.png
type extension of SceneGraphStructureStatement
properties
content complex
children ProtoInterface ProtoBody
used by
group ChildContentModelSceneGraphStructure
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:NMTOKEN  required
appinfo  SFString
documentation  SFString
annotation
appinfo
<xs:element name="ProtoInterface" type="SFNode" default="ProtoInterface"/>
<xs:element name="ProtoBody" type="SFNode" default="ProtoBody"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DChildNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
ProtoDeclare defines new Prototype nodes.  Nested ProtoDeclares and ProtoInstances are allowed by the specification.
source <xs:element name="ProtoDeclare">
  <xs:annotation>
    <xs:appinfo>
      <xs:element name="ProtoInterface" type="SFNode" default="ProtoInterface"/>
      <xs:element name="ProtoBody" type="SFNode" default="ProtoBody"/>
      <xs:attribute name="additionalInterface" type="xs:string" default="X3DChildNode"/>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Core"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
ProtoDeclare defines new Prototype nodes.  Nested ProtoDeclares and ProtoInstances are allowed by the specification.
</xs:appinfo>
    <xs:documentation source="https://www.web3d.org/documents/specifications/19776-1/V3.3/Part01/concepts.html#PrototypeAndFieldDeclarationSyntax"/>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SceneGraphStructureStatement">
        <xs:sequence>
          <xs:element ref="ProtoInterface" minOccurs="0"/>
          <xs:element ref="ProtoBody"/>
        </xs:sequence>
        <xs:attribute name="name" type="xs:NMTOKEN" use="required">
          <xs:annotation>
            <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="appinfo" type="SFString"/>
        <xs:attribute name="documentation" type="SFString"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute ProtoDeclare/@name
type xs:NMTOKEN
properties
use required
source <xs:attribute name="name" type="xs:NMTOKEN" use="required">
  <xs:annotation>
    <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>
  </xs:annotation>
</xs:attribute>

attribute ProtoDeclare/@appinfo
type SFString
source <xs:attribute name="appinfo" type="SFString"/>

attribute ProtoDeclare/@documentation
type SFString
source <xs:attribute name="documentation" type="SFString"/>
