complexType RetrievalMethodType

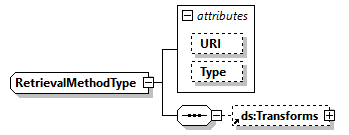

diagram x3d-3.0_diagrams/x3d-3.0_p267.png
namespace http://www.w3.org/2000/09/xmldsig#
children ds:Transforms
used by
element RetrievalMethod
attributes
Name  Type  Use  Default  Fixed  Annotation
URI  xs:anyURI
Type  xs:anyURI  optional
source <xs:complexType name="RetrievalMethodType">

<xs:sequence>

<xs:element ref="ds:Transforms" minOccurs="0"/>

</xs:sequence>

<xs:attribute name="URI" type="anyURI"/>

<xs:attribute name="Type" type="anyURI" use="optional"/>
</xs:complexType>

attribute RetrievalMethodType/@URI
type xs:anyURI
source <xs:attribute name="URI" type="anyURI"/>

attribute RetrievalMethodType/@Type
type xs:anyURI
properties
use optional
source <xs:attribute name="Type" type="anyURI" use="optional"/>
