complexType X3DGeometryNode

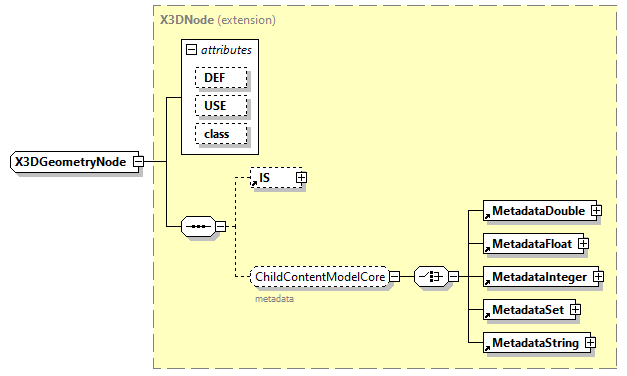

diagram
type	extension of X3DNode
properties	base  X3DNode abstract  true
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  Arc2D ArcClose2D Box Circle2D Cone Cylinder Disk2D ElevationGrid Extrusion GeoElevationGrid IndexedLineSet LineSet PointSet Polyline2D Polypoint2D Rectangle2D Sphere Text TriangleSet2D complexTypes  X3DComposedGeometryNode X3DParametricGeometryNode
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Geometry nodes produce renderable geometry and are contained by a Shape node.
source	<xs:complexType name="X3DGeometryNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Geometry nodes produce renderable geometry and are contained by a Shape node. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#X3DGeometryNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DNode"/>   </xs:complexContent> </xs:complexType>
