complexType X3DTextureTransformNode

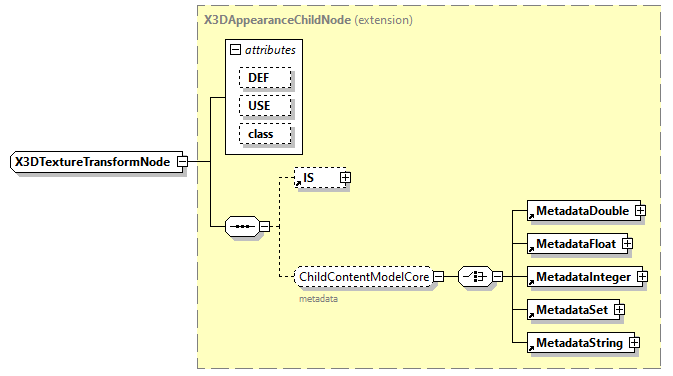

diagram
type	extension of X3DAppearanceChildNode
properties	base  X3DAppearanceChildNode abstract  true
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  MultiTextureTransform TextureTransform
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Base type for all nodes which specify a transformation of texture coordinates.
source	<xs:complexType name="X3DTextureTransformNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Base type for all nodes which specify a transformation of texture coordinates. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#X3DTextureTransformNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DAppearanceChildNode"/>   </xs:complexContent> </xs:complexType>
