element CylinderSensor

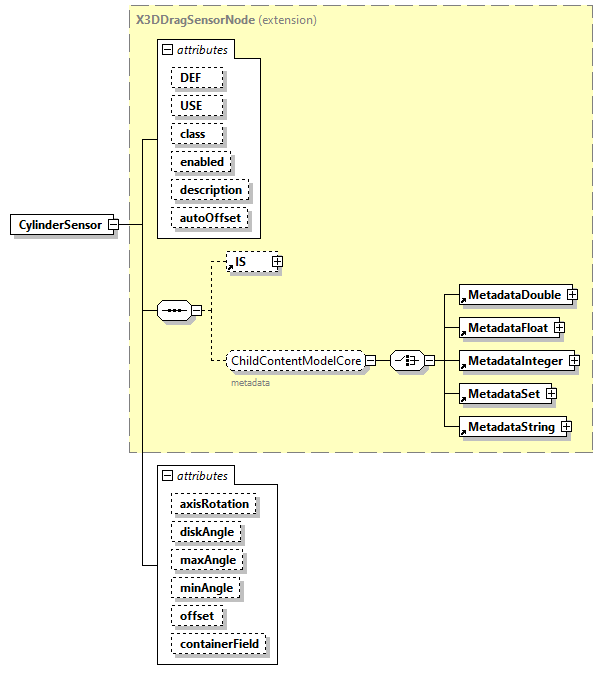

diagram
type	extension of X3DDragSensorNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  ChildContentModelInteractive
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. enabled   SFBool      true      description   SFString            autoOffset   SFBool      true      axisRotation   SFRotation      0 0 1 0      diskAngle   derived by: SFFloat      0.26179167      maxAngle   derived by: SFFloat      -1      minAngle   derived by: SFFloat      0      offset   SFFloat      0      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="rotation_changed" type="SFRotation" fixed="outputOnlyField"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="PointingDeviceSensor"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="CylinderSensor">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="rotation_changed" type="SFRotation" fixed="outputOnlyField"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="PointingDeviceSensor"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/pointingsensor.html#CylinderSensor"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DDragSensorNode">         <xs:attribute name="axisRotation" type="SFRotation" default="0 0 1 0"/>         <xs:attribute name="diskAngle" default="0.26179167">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="1.5708"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="maxAngle" default="-1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="-6.2832"/>               <xs:maxExclusive value="6.2832"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="minAngle" default="0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="-6.2832"/>               <xs:maxExclusive value="6.2832"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="offset" type="SFFloat" default="0"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute CylinderSensor/@axisRotation

type	SFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="axisRotation" type="SFRotation" default="0 0 1 0"/>

attribute CylinderSensor/@diskAngle

type	restriction of SFFloat
properties	default  0.26179167
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1.5708
source	<xs:attribute name="diskAngle" default="0.26179167">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1.5708"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute CylinderSensor/@maxAngle

type	restriction of SFFloat
properties	default  -1
facets	Kind  Value  Annotation minExclusive  -6.2832 maxExclusive  6.2832
source	<xs:attribute name="maxAngle" default="-1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="-6.2832"/>       <xs:maxExclusive value="6.2832"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute CylinderSensor/@minAngle

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minExclusive  -6.2832 maxExclusive  6.2832
source	<xs:attribute name="minAngle" default="0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="-6.2832"/>       <xs:maxExclusive value="6.2832"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute CylinderSensor/@offset

type	SFFloat
properties	default  0
source	<xs:attribute name="offset" type="SFFloat" default="0"/>

attribute CylinderSensor/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
