element FillProperties

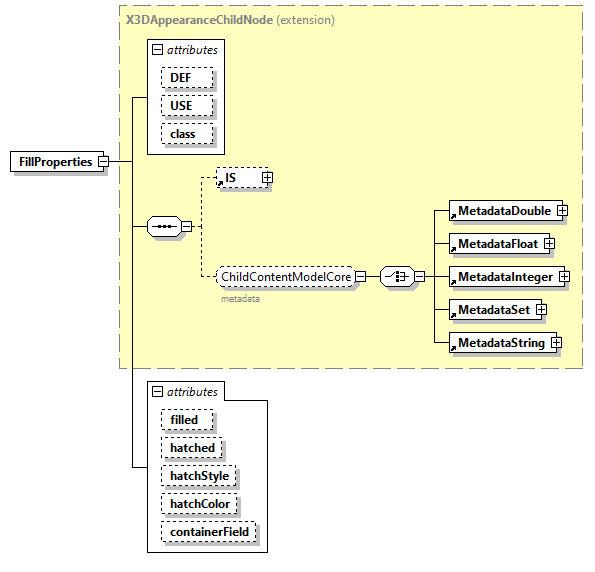

diagram
type	extension of X3DAppearanceChildNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  AppearanceChildContentModelNoProtoInstance
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. filled   SFBool      true      hatched   SFBool      true      hatchStyle   SFInt32      1      hatchColor   SFColor      1 1 1      containerField   xs:NMTOKEN      fillProperties
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source	<xs:element name="FillProperties">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shape.html#FillProperties"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DAppearanceChildNode">         <xs:attribute name="filled" type="SFBool" default="true"/>         <xs:attribute name="hatched" type="SFBool" default="true"/>         <xs:attribute name="hatchStyle" type="SFInt32" default="1"/>         <xs:attribute name="hatchColor" type="SFColor" default="1 1 1"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="fillProperties"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute FillProperties/@filled

type	SFBool
properties	default  true
source	<xs:attribute name="filled" type="SFBool" default="true"/>

attribute FillProperties/@hatched

type	SFBool
properties	default  true
source	<xs:attribute name="hatched" type="SFBool" default="true"/>

attribute FillProperties/@hatchStyle

type	SFInt32
properties	default  1
source	<xs:attribute name="hatchStyle" type="SFInt32" default="1"/>

attribute FillProperties/@hatchColor

type	SFColor
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)*
source	<xs:attribute name="hatchColor" type="SFColor" default="1 1 1"/>

attribute FillProperties/@containerField

type	xs:NMTOKEN
properties	default  fillProperties
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="fillProperties"/>
