element PixelTexture

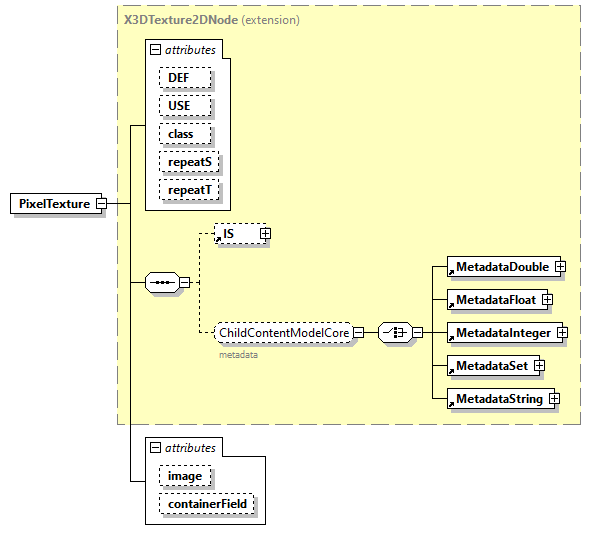

diagram
type	extension of X3DTexture2DNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  ComposedCubeMapTexture ComposedTexture3D MultiTexture groups  AppearanceChildContentModelNoProtoInstance TextureBackgroundChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. repeatS   SFBool      true      repeatT   SFBool      true      image   SFImage      0 0 0      containerField   containerFieldChoicesX3DTexture2DNode      texture
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="PixelTexture">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#PixelTexture"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DTexture2DNode">         <xs:attribute name="image" type="SFImage" default="0 0 0"/>         <xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute PixelTexture/@image

type	SFImage
properties	default  0 0 0
facets	Kind  Value  Annotation minLength  5 whiteSpace  collapse
source	<xs:attribute name="image" type="SFImage" default="0 0 0"/>

attribute PixelTexture/@containerField

type	containerFieldChoicesX3DTexture2DNode
properties	default  texture
facets	Kind  Value  Annotation enumeration  texture appinfo default, parent node is Appearance enumeration  source appinfo parent node is Sound (only valid for MovieTexture) enumeration  back appinfo parent node is ComposedCubeMapTexture enumeration  bottom appinfo parent node is ComposedCubeMapTexture enumeration  front appinfo parent node is ComposedCubeMapTexture enumeration  left appinfo parent node is ComposedCubeMapTexture enumeration  right appinfo parent node is ComposedCubeMapTexture enumeration  top appinfo parent node is ComposedCubeMapTexture enumeration  backTexture appinfo parent node is TextureBackground enumeration  bottomTexture appinfo parent node is TextureBackground enumeration  frontTexture appinfo parent node is TextureBackground enumeration  leftTexture appinfo parent node is TextureBackground enumeration  rightTexture appinfo parent node is TextureBackground enumeration  topTexture appinfo parent node is TextureBackground
source	<xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>
