complexType ReferenceType

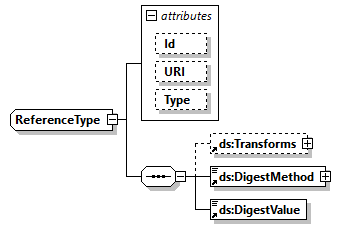

diagram x3d-3.1_diagrams/x3d-3.1_p302.png
namespace http://www.w3.org/2000/09/xmldsig#
children ds:Transforms ds:DigestMethod ds:DigestValue
used by
element Reference
attributes
Name  Type  Use  Default  Fixed  Annotation
Id  xs:ID  optional
URI  xs:anyURI  optional
Type  xs:anyURI  optional
source <xs:complexType name="ReferenceType">

<xs:sequence>

<xs:element ref="ds:Transforms" minOccurs="0"/>

<xs:element ref="ds:DigestMethod"/>

<xs:element ref="ds:DigestValue"/>

</xs:sequence>

<xs:attribute name="Id" type="ID" use="optional"/>

<xs:attribute name="URI" type="anyURI" use="optional"/>

<xs:attribute name="Type" type="anyURI" use="optional"/>
</xs:complexType>

attribute ReferenceType/@Id
type xs:ID
properties
use optional
source <xs:attribute name="Id" type="ID" use="optional"/>

attribute ReferenceType/@URI
type xs:anyURI
properties
use optional
source <xs:attribute name="URI" type="anyURI" use="optional"/>

attribute ReferenceType/@Type
type xs:anyURI
properties
use optional
source <xs:attribute name="Type" type="anyURI" use="optional"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
