element SignalPdu

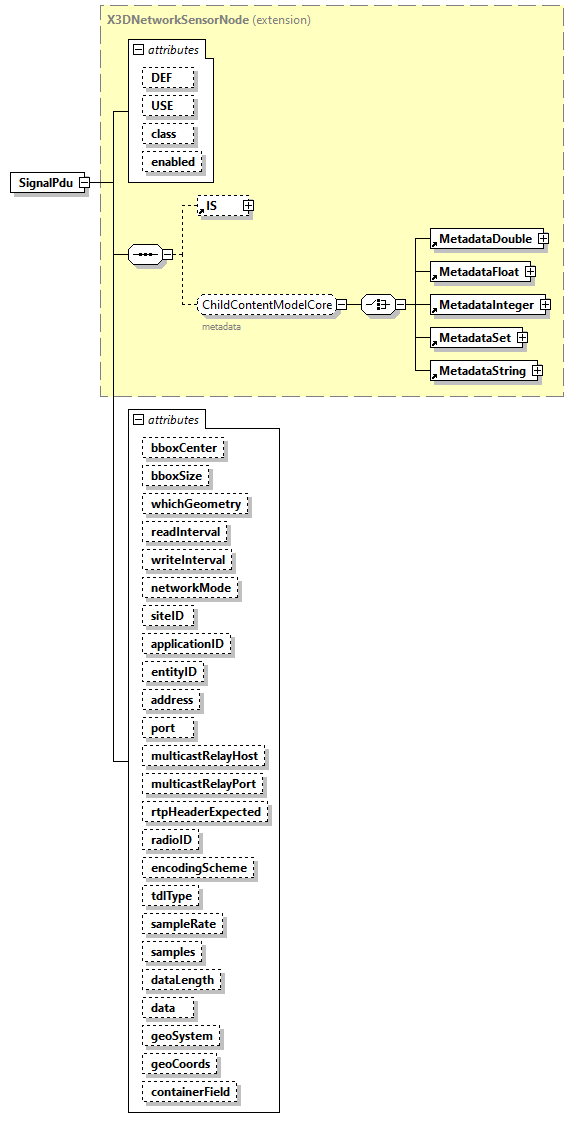

diagram
type	extension of X3DNetworkSensorNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  ChildContentModelDIS
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. enabled   SFBool      true      bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      whichGeometry   SFInt32      1      readInterval   derived by: SFTime      0.1      writeInterval   derived by: SFTime      1.0      networkMode   networkModeChoices      standAlone      siteID   SFInt32      0      applicationID   SFInt32      0      entityID   SFInt32      0      address   SFString      localhost      port   SFInt32      0      multicastRelayHost   SFString            multicastRelayPort   SFInt32      0      rtpHeaderExpected   SFBool      false      radioID   SFInt32      0      encodingScheme   SFInt32      0      tdlType   SFInt32      0      sampleRate   SFInt32      0      samples   SFInt32      0      dataLength   SFInt32      0      data   MFInt32            geoSystem   geoSystemType      "GD" "WE"      geoCoords   SFVec3d      0 0 0      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="isNetworkReader" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="isNetworkWriter" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="isRtpHeaderHeard" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="isStandAlone" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="timestamp" fixed="outputOnlyField"> <!-- type="SFTimeNonNegative" --> <xs:simpleType> <xs:restriction base="SFTime"> <xs:minInclusive value="0"/> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="DIS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="SignalPdu">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="isNetworkReader" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="isNetworkWriter" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="isRtpHeaderHeard" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="isStandAlone" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="timestamp" fixed="outputOnlyField">         <!-- type="SFTimeNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFTime">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="DIS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/dis.html#SignalPdu"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNetworkSensorNode">         <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>         <xs:attribute name="whichGeometry" type="SFInt32" default="1"/>         <xs:attribute name="readInterval" default="0.1">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="writeInterval" default="1.0">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="networkMode" type="networkModeChoices" default="standAlone"/>         <xs:attribute name="siteID" type="SFInt32" default="0"/>         <xs:attribute name="applicationID" type="SFInt32" default="0"/>         <xs:attribute name="entityID" type="SFInt32" default="0"/>         <xs:attribute name="address" type="SFString" default="localhost"/>         <xs:attribute name="port" type="SFInt32" default="0"/>         <xs:attribute name="multicastRelayHost" type="SFString"/>         <xs:attribute name="multicastRelayPort" type="SFInt32" default="0"/>         <xs:attribute name="rtpHeaderExpected" type="SFBool" default="false"/>         <xs:attribute name="radioID" type="SFInt32" default="0"/>         <xs:attribute name="encodingScheme" type="SFInt32" default="0"/>         <xs:attribute name="tdlType" type="SFInt32" default="0"/>         <xs:attribute name="sampleRate" type="SFInt32" default="0"/>         <xs:attribute name="samples" type="SFInt32" default="0"/>         <xs:attribute name="dataLength" type="SFInt32" default="0"/>         <xs:attribute name="data" type="MFInt32"/>         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- bboxDisplay, visible added in X3D version 4.0 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute SignalPdu/@bboxCenter

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute SignalPdu/@bboxSize

type	bboxSizeType
properties	default  -1 -1 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source	<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute SignalPdu/@whichGeometry

type	SFInt32
properties	default  1
source	<xs:attribute name="whichGeometry" type="SFInt32" default="1"/>

attribute SignalPdu/@readInterval

type	restriction of SFTime
properties	default  0.1
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="readInterval" default="0.1">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SignalPdu/@writeInterval

type	restriction of SFTime
properties	default  1.0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="writeInterval" default="1.0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SignalPdu/@networkMode

type	networkModeChoices
properties	default  standAlone
facets	Kind  Value  Annotation enumeration  standAlone appinfo ignore network but still respond to events in local scene enumeration  networkReader appinfo listen to network and read PDU packets at readInterval, act as remotely linked copy of entity enumeration  networkWriter appinfo send PDU packets to network at writeInterval, act as master entity
source	<xs:attribute name="networkMode" type="networkModeChoices" default="standAlone"/>

attribute SignalPdu/@siteID

type	SFInt32
properties	default  0
source	<xs:attribute name="siteID" type="SFInt32" default="0"/>

attribute SignalPdu/@applicationID

type	SFInt32
properties	default  0
source	<xs:attribute name="applicationID" type="SFInt32" default="0"/>

attribute SignalPdu/@entityID

type	SFInt32
properties	default  0
source	<xs:attribute name="entityID" type="SFInt32" default="0"/>

attribute SignalPdu/@address

type	SFString
properties	default  localhost
source	<xs:attribute name="address" type="SFString" default="localhost"/>

attribute SignalPdu/@port

type	SFInt32
properties	default  0
source	<xs:attribute name="port" type="SFInt32" default="0"/>

attribute SignalPdu/@multicastRelayHost

type	SFString
source	<xs:attribute name="multicastRelayHost" type="SFString"/>

attribute SignalPdu/@multicastRelayPort

type	SFInt32
properties	default  0
source	<xs:attribute name="multicastRelayPort" type="SFInt32" default="0"/>

attribute SignalPdu/@rtpHeaderExpected

type	SFBool
properties	default  false
source	<xs:attribute name="rtpHeaderExpected" type="SFBool" default="false"/>

attribute SignalPdu/@radioID

type	SFInt32
properties	default  0
source	<xs:attribute name="radioID" type="SFInt32" default="0"/>

attribute SignalPdu/@encodingScheme

type	SFInt32
properties	default  0
source	<xs:attribute name="encodingScheme" type="SFInt32" default="0"/>

attribute SignalPdu/@tdlType

type	SFInt32
properties	default  0
source	<xs:attribute name="tdlType" type="SFInt32" default="0"/>

attribute SignalPdu/@sampleRate

type	SFInt32
properties	default  0
source	<xs:attribute name="sampleRate" type="SFInt32" default="0"/>

attribute SignalPdu/@samples

type	SFInt32
properties	default  0
source	<xs:attribute name="samples" type="SFInt32" default="0"/>

attribute SignalPdu/@dataLength

type	SFInt32
properties	default  0
source	<xs:attribute name="dataLength" type="SFInt32" default="0"/>

attribute SignalPdu/@data

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source	<xs:attribute name="data" type="MFInt32"/>

attribute SignalPdu/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute SignalPdu/@geoCoords

type	SFVec3d
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>

attribute SignalPdu/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
