complexType SignatureMethodType

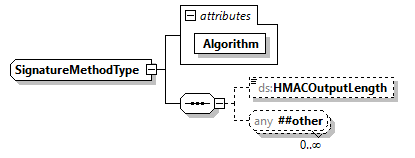

diagram x3d-3.1_diagrams/x3d-3.1_p307.png
namespace http://www.w3.org/2000/09/xmldsig#
properties
mixed true
children ds:HMACOutputLength
used by
element SignatureMethod
attributes
Name  Type  Use  Default  Fixed  Annotation
Algorithm  xs:anyURI  required
source <xs:complexType name="SignatureMethodType" mixed="true">
  <xs:sequence>
    <xs:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    <!-- (0,unbounded) elements from (1,1) external namespace -->
  </xs:sequence>
  <xs:attribute name="Algorithm" type="anyURI" use="required"/>
</xs:complexType>

attribute SignatureMethodType/@Algorithm
type xs:anyURI
properties
use required
source <xs:attribute name="Algorithm" type="anyURI" use="required"/>

element SignatureMethodType/HMACOutputLength
diagram x3d-3.1_diagrams/x3d-3.1_p308.png
namespace http://www.w3.org/2000/09/xmldsig#
type ds:HMACOutputLengthType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>
