complexType X3DSoundSourceNode

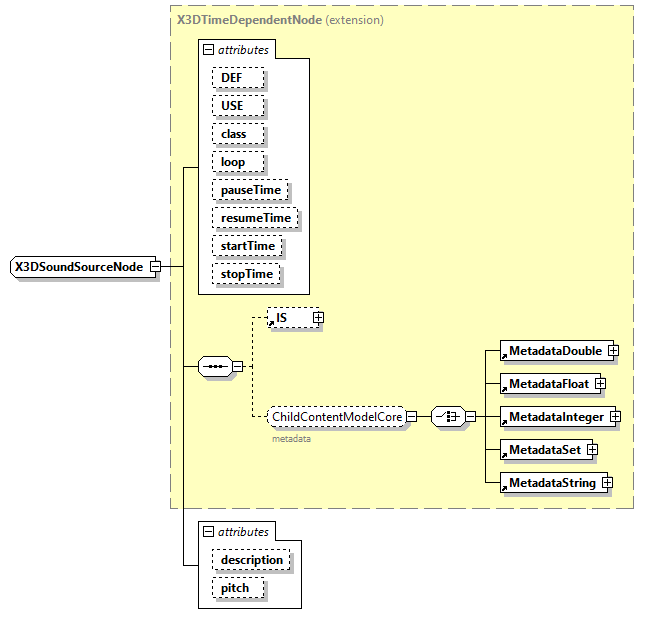

diagram
type	extension of X3DTimeDependentNode
properties	base  X3DTimeDependentNode abstract  true
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  AudioClip MovieTexture
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. loop   SFBool      false      pauseTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> resumeTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> startTime   SFTime      0      stopTime   SFTime      0      description   SFString            pitch   derived by: SFFloat      1.0
annotation	appinfo <xs:attribute name="duration_changed" fixed="outputOnlyField"> <!-- type="SFTimeNonNegative" --> <xs:simpleType> <xs:restriction base="SFTime"> <xs:minInclusive value="-1"/> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Nodes implementing X3DSoundSourceNode are allowed as children of Sound node.
source	<xs:complexType name="X3DSoundSourceNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="duration_changed" fixed="outputOnlyField">         <!-- type="SFTimeNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFTime">             <xs:minInclusive value="-1"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Nodes implementing X3DSoundSourceNode are allowed as children of Sound node. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/sound.html#X3DSoundSourceNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DTimeDependentNode">       <xs:attribute name="description" type="SFString"/>       <xs:attribute name="pitch" default="1.0">         <!-- type="SFFloatNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minExclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DSoundSourceNode/@description

type	SFString
source	<xs:attribute name="description" type="SFString"/>

attribute X3DSoundSourceNode/@pitch

type	restriction of SFFloat
properties	default  1.0
facets	Kind  Value  Annotation minExclusive  0
source	<xs:attribute name="pitch" default="1.0">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>
