element XvlShell

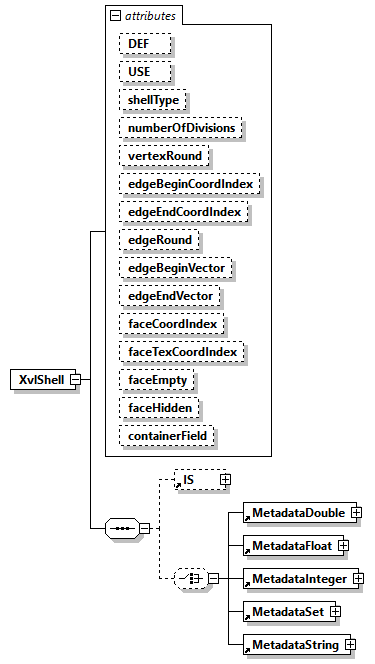

diagram
properties	content  complex mixed  false
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            USE   xs:IDREF            shellType   XvlShell.shellTypes            numberOfDivisions   SFInt32            vertexRound   MFFloat            edgeBeginCoordIndex   MFInt32            edgeEndCoordIndex   MFInt32            edgeRound   MFFloat            edgeBeginVector   MFVec3f            edgeEndVector   MFVec3f            faceCoordIndex   MFInt32            faceTexCoordIndex   MFInt32            faceEmpty   MFBool            faceHidden   MFBool            containerField   xs:NMTOKEN      geometry
source	<xs:element name="XvlShell">   <xs:annotation>     <xs:appinfo/>     <xs:documentation/>   </xs:annotation>   <xs:complexType mixed="false">     <xs:sequence>       <xs:element ref="IS" minOccurs="0"/>       <xs:choice minOccurs="0">         <xs:element ref="MetadataDouble"/>         <xs:element ref="MetadataFloat"/>         <xs:element ref="MetadataInteger"/>         <xs:element ref="MetadataSet"/>         <xs:element ref="MetadataString"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="DEF" type="xs:ID"/>     <xs:attribute name="USE" type="xs:IDREF"/>     <xs:attribute name="shellType" type="XvlShell.shellTypes"/>     <xs:attribute name="numberOfDivisions" type="SFInt32"/>     <xs:attribute name="vertexRound" type="MFFloat"/>     <xs:attribute name="edgeBeginCoordIndex" type="MFInt32"/>     <xs:attribute name="edgeEndCoordIndex" type="MFInt32"/>     <xs:attribute name="edgeRound" type="MFFloat"/>     <xs:attribute name="edgeBeginVector" type="MFVec3f"/>     <xs:attribute name="edgeEndVector" type="MFVec3f"/>     <xs:attribute name="faceCoordIndex" type="MFInt32"/>     <xs:attribute name="faceTexCoordIndex" type="MFInt32"/>     <xs:attribute name="faceEmpty" type="MFBool"/>     <xs:attribute name="faceHidden" type="MFBool"/>     <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>     <!--X3DGeometryNode-->   </xs:complexType> </xs:element>

attribute XvlShell/@DEF

type	xs:ID
source	<xs:attribute name="DEF" type="xs:ID"/>

attribute XvlShell/@USE

type	xs:IDREF
source	<xs:attribute name="USE" type="xs:IDREF"/>

attribute XvlShell/@shellType

type	XvlShell.shellTypes
facets	Kind  Value  Annotation enumeration  POLYGON_MESH enumeration  LATTICE_MESH
source	<xs:attribute name="shellType" type="XvlShell.shellTypes"/>

attribute XvlShell/@numberOfDivisions

type	SFInt32
source	<xs:attribute name="numberOfDivisions" type="SFInt32"/>

attribute XvlShell/@vertexRound

type	MFFloat
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="vertexRound" type="MFFloat"/>

attribute XvlShell/@edgeBeginCoordIndex

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source	<xs:attribute name="edgeBeginCoordIndex" type="MFInt32"/>

attribute XvlShell/@edgeEndCoordIndex

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source	<xs:attribute name="edgeEndCoordIndex" type="MFInt32"/>

attribute XvlShell/@edgeRound

type	MFFloat
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="edgeRound" type="MFFloat"/>

attribute XvlShell/@edgeBeginVector

type	MFVec3f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="edgeBeginVector" type="MFVec3f"/>

attribute XvlShell/@edgeEndVector

type	MFVec3f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="edgeEndVector" type="MFVec3f"/>

attribute XvlShell/@faceCoordIndex

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source	<xs:attribute name="faceCoordIndex" type="MFInt32"/>

attribute XvlShell/@faceTexCoordIndex

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source	<xs:attribute name="faceTexCoordIndex" type="MFInt32"/>

attribute XvlShell/@faceEmpty

type	MFBool
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((true|false)\s*,?\s*)*
source	<xs:attribute name="faceEmpty" type="MFBool"/>

attribute XvlShell/@faceHidden

type	MFBool
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((true|false)\s*,?\s*)*
source	<xs:attribute name="faceHidden" type="MFBool"/>

attribute XvlShell/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
