element Extrusion

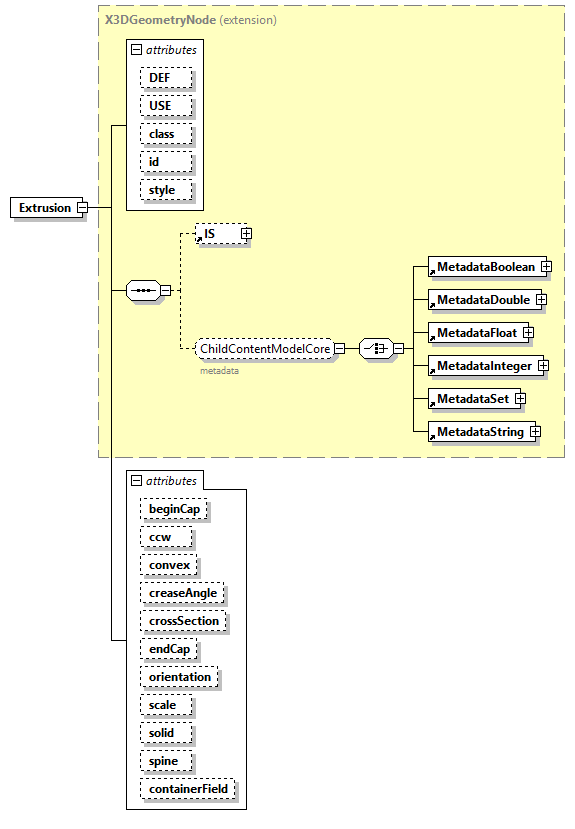

diagram
type	extension of X3DGeometryNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  GeometryContentModelImmersive
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 beginCap   SFBool      true      ccw   SFBool      true      convex   SFBool      true      creaseAngle   derived by: SFFloat      0      crossSection   MFVec2f      1 1 1 -1 -1 -1 -1 1 1 1      endCap   SFBool      true      orientation   MFRotation      0 0 1 0      scale   MFVec2f      1 1      solid   SFBool      true      spine   MFVec3f      0 0 0 0 1 0      containerField   xs:NMTOKEN      geometry
annotation	appinfo <xs:attribute name="beginCap" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:attribute name="ccw" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:attribute name="convex" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:attribute name="creaseAngle" type="SFFloat" default="0" fixed="initializeOnlyField"/> <xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1" fixed="initializeOnlyField"/> <xs:attribute name="endCap" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:attribute name="orientation" type="MFRotation" default="0 0 1 0" fixed="initializeOnlyField"/> <xs:attribute name="scale" type="MFVec2f" default="1 1" fixed="initializeOnlyField"/> <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0" fixed="initializeOnlyField"/> <xs:attribute name="set_crossSection" type="MFVec2f" fixed="inputOnlyField"/> <xs:attribute name="set_orientation" type="MFRotation" fixed="inputOnlyField"/> <xs:attribute name="set_scale" type="MFVec2f" fixed="inputOnlyField"/> <xs:attribute name="set_spine" type="MFVec3f" fixed="inputOnlyField"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry3D"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:element name="Extrusion">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="beginCap" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:attribute name="ccw" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:attribute name="convex" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:attribute name="creaseAngle" type="SFFloat" default="0" fixed="initializeOnlyField"/>       <xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1" fixed="initializeOnlyField"/>       <xs:attribute name="endCap" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:attribute name="orientation" type="MFRotation" default="0 0 1 0" fixed="initializeOnlyField"/>       <xs:attribute name="scale" type="MFVec2f" default="1 1" fixed="initializeOnlyField"/>       <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0" fixed="initializeOnlyField"/>       <xs:attribute name="set_crossSection" type="MFVec2f" fixed="inputOnlyField"/>       <xs:attribute name="set_orientation" type="MFRotation" fixed="inputOnlyField"/>       <xs:attribute name="set_scale" type="MFVec2f" fixed="inputOnlyField"/>       <xs:attribute name="set_spine" type="MFVec3f" fixed="inputOnlyField"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry3D"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/geometry3D.html#Extrusion"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DGeometryNode">         <xs:attribute name="beginCap" type="SFBool" default="true"/>         <xs:attribute name="ccw" type="SFBool" default="true"/>         <xs:attribute name="convex" type="SFBool" default="true"/>         <xs:attribute name="creaseAngle" default="0">           <!-- type="SFFloatNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1"/>         <xs:attribute name="endCap" type="SFBool" default="true"/>         <xs:attribute name="orientation" type="MFRotation" default="0 0 1 0"/>         <xs:attribute name="scale" type="MFVec2f" default="1 1"/>         <xs:attribute name="solid" type="SFBool" default="true"/>         <xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Extrusion/@beginCap

type	SFBool
properties	default  true
source	<xs:attribute name="beginCap" type="SFBool" default="true"/>

attribute Extrusion/@ccw

type	SFBool
properties	default  true
source	<xs:attribute name="ccw" type="SFBool" default="true"/>

attribute Extrusion/@convex

type	SFBool
properties	default  true
source	<xs:attribute name="convex" type="SFBool" default="true"/>

attribute Extrusion/@creaseAngle

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="creaseAngle" default="0">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Extrusion/@crossSection

type	MFVec2f
properties	default  1 1 1 -1 -1 -1 -1 1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1"/>

attribute Extrusion/@endCap

type	SFBool
properties	default  true
source	<xs:attribute name="endCap" type="SFBool" default="true"/>

attribute Extrusion/@orientation

type	MFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="orientation" type="MFRotation" default="0 0 1 0"/>

attribute Extrusion/@scale

type	MFVec2f
properties	default  1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="scale" type="MFVec2f" default="1 1"/>

attribute Extrusion/@solid

type	SFBool
properties	default  true
source	<xs:attribute name="solid" type="SFBool" default="true"/>

attribute Extrusion/@spine

type	MFVec3f
properties	default  0 0 0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0"/>

attribute Extrusion/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
