element FillProperties

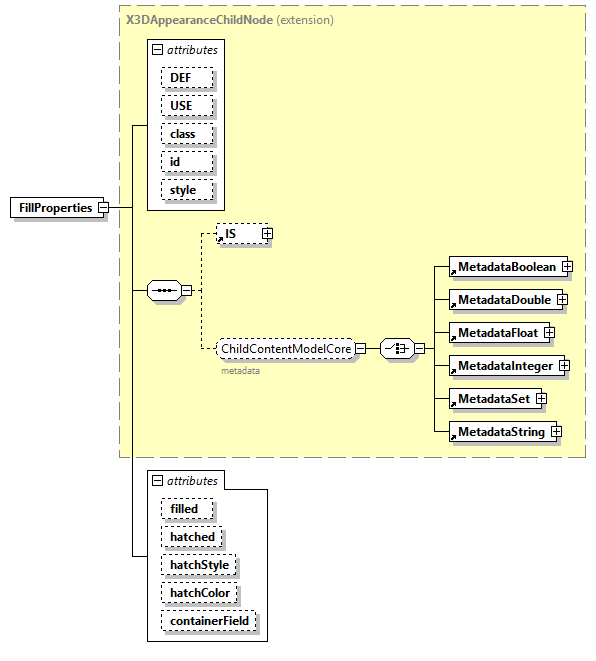

diagram
type	extension of X3DAppearanceChildNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  AppearanceChildContentModelNoProtoInstance
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 filled   SFBool      true      hatched   SFBool      true      hatchStyle   hatchStyleValues      1      hatchColor   SFColor      1 1 1      containerField   xs:NMTOKEN      fillProperties
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source	<xs:element name="FillProperties">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#FillProperties"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DAppearanceChildNode">         <xs:attribute name="filled" type="SFBool" default="true"/>         <xs:attribute name="hatched" type="SFBool" default="true"/>         <xs:attribute name="hatchStyle" type="hatchStyleValues" default="1"/>         <xs:attribute name="hatchColor" type="SFColor" default="1 1 1"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="fillProperties"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute FillProperties/@filled

type	SFBool
properties	default  true
source	<xs:attribute name="filled" type="SFBool" default="true"/>

attribute FillProperties/@hatched

type	SFBool
properties	default  true
source	<xs:attribute name="hatched" type="SFBool" default="true"/>

attribute FillProperties/@hatchStyle

type	hatchStyleValues
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 enumeration  1 appinfo <xs:attribute name="alias" type="xs:string" default="HORIZONTAL"/>                         Horizontal equally spaced parallel lines                     enumeration  2 appinfo <xs:attribute name="alias" type="xs:string" default="VERTICAL"/>                         Vertical equally spaced parallel lines                     enumeration  3 appinfo <xs:attribute name="alias" type="xs:string" default="POSITIVE_SLOPE"/>                         Positive slope equally spaced parallel lines                     enumeration  4 appinfo <xs:attribute name="alias" type="xs:string" default="NEGATIVE_SLOPE"/>                         Negative slope equally spaced parallel lines                     enumeration  5 appinfo <xs:attribute name="alias" type="xs:string" default="HORIZONTAL_VERTICAL_CROSSHATCH"/>                         Horizontal/vertical crosshatch                     enumeration  6 appinfo <xs:attribute name="alias" type="xs:string" default="POSITIVE_NEGATIVE_SLOPE_CROSSHATCH"/>                         Positive slope/negative slope crosshatch                     enumeration  7 appinfo <xs:attribute name="alias" type="xs:string" default="CAST_IRON"/>                         (cast iron or malleable iron and general use for all materials)                     enumeration  8 appinfo <xs:attribute name="alias" type="xs:string" default="STEEL"/>                         (steel)                     enumeration  9 appinfo <xs:attribute name="alias" type="xs:string" default="BRONZE_BRASS_COPPER_COMPOSITIONS"/>                         (bronze, brass, copper, and compositions)                     enumeration  10 appinfo <xs:attribute name="alias" type="xs:string" default="WHITE_METAL_ZINC_LEAD_BABBIT_ALLOYS"/>                         (white metal, zinc, lead, babbit, and alloys)                     enumeration  11 appinfo <xs:attribute name="alias" type="xs:string" default="MAGNESIUM_ALUMINUM_ALLOYS"/>                         (magnesium, aluminum, and aluminum alloys)                     enumeration  12 appinfo <xs:attribute name="alias" type="xs:string" default="RUBBER_PLASTIC_ELECTRICAL_INSULATION"/>                         (rubber, plastic, and electrical insulation)                     enumeration  13 appinfo <xs:attribute name="alias" type="xs:string" default="CORK_FELT_FABRIC_LEATHER_FIBRE"/>                         (cork, felt, fabric, leather, and fibre/fiber)                     enumeration  14 appinfo <xs:attribute name="alias" type="xs:string" default="THERMAL_INSULATION"/>                         (thermal insulation)                     enumeration  15 appinfo <xs:attribute name="alias" type="xs:string" default="TITANIUM"/>                         (titanium and refi-actory material)                     enumeration  16 appinfo <xs:attribute name="alias" type="xs:string" default="MARBLE_SLATE_PORCELAIN_GLASS"/>                         (marble, slate, porcelain, glass, etc.)                     enumeration  17 appinfo <xs:attribute name="alias" type="xs:string" default="EARTH"/>                         (earth)                     enumeration  18 appinfo <xs:attribute name="alias" type="xs:string" default="SAND"/>                         (sand)                     enumeration  19 appinfo <xs:attribute name="alias" type="xs:string" default="REPEATING_DOT"/>                         (repeating dot)
source	<xs:attribute name="hatchStyle" type="hatchStyleValues" default="1"/>

attribute FillProperties/@hatchColor

type	SFColor
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="hatchColor" type="SFColor" default="1 1 1"/>

attribute FillProperties/@containerField

type	xs:NMTOKEN
properties	default  fillProperties
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="fillProperties"/>
