element IndexedLineSet

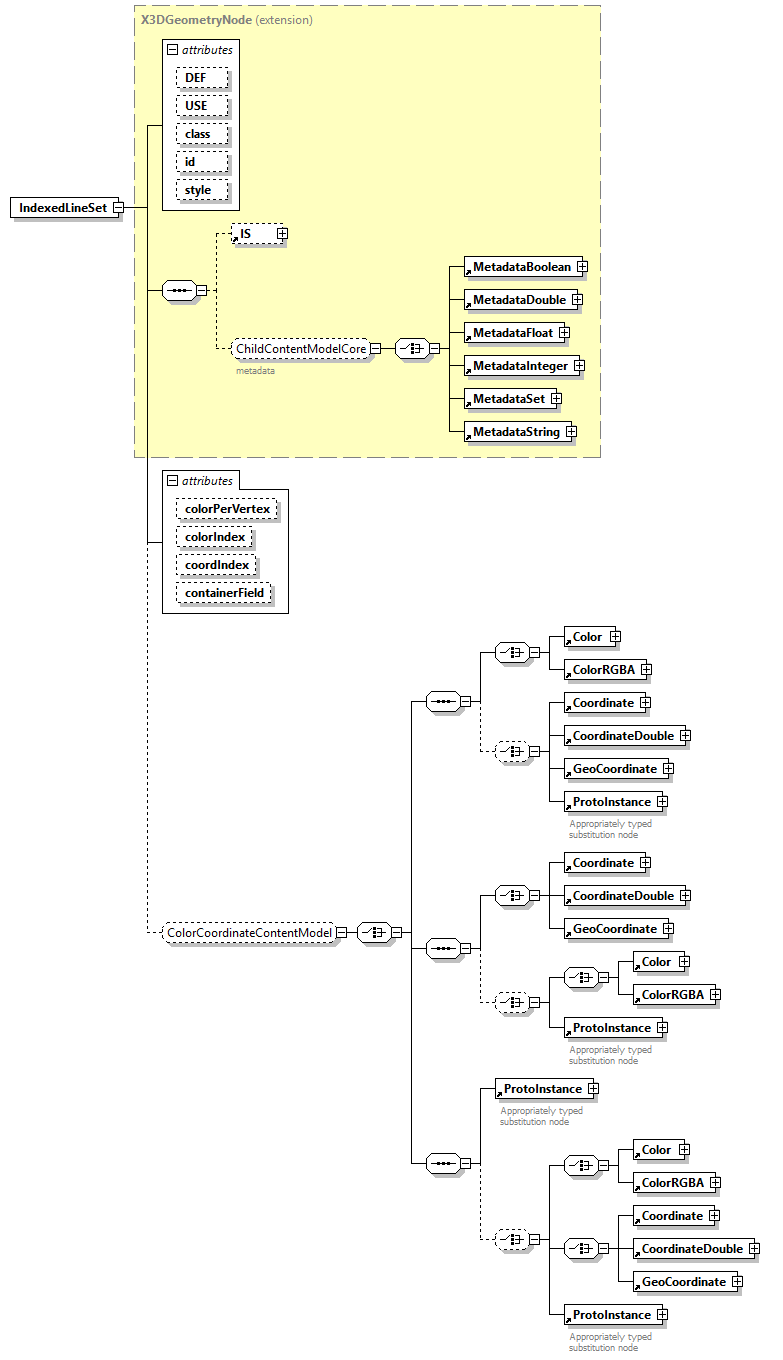

diagram x3d-4.0_diagrams/x3d-4.0_p112.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Color ColorRGBA Coordinate CoordinateDouble GeoCoordinate ProtoInstance
used by
elements HAnimHumanoid LinePickSensor
group GeometryContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

colorPerVertex  SFBool    true
colorIndex  MFInt32
appinfo
<xs:minInclusive value="-1"/>
coordIndex  MFInt32
appinfo
<xs:minInclusive value="-1"/>
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="set_colorIndex" type="MFInt32" fixed="inputOnlyField">
<xs:annotation>
<xs:appinfo>
<xs:minInclusive value="-1"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
</xs:appinfo>
</xs:annotation>
</xs:attribute>
<xs:attribute name="set_coordIndex" type="MFInt32" fixed="inputOnlyField">
<xs:annotation>
<xs:appinfo>
<xs:minInclusive value="-1"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
</xs:appinfo>
</xs:annotation>
</xs:attribute>
<xs:element name="attrib" type="MFNode" fixed="inputOutputField" default="X3DVertexAttributeNode"/>
<xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/>
<xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>
<xs:element name="fogCoord" type="SFNode" fixed="inputOutputField" default="FogCoordinate"/>
<xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="IndexedLineSet">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="set_colorIndex" type="MFInt32" fixed="inputOnlyField">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="set_coordIndex" type="MFInt32" fixed="inputOnlyField">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:element name="attrib" type="MFNode" fixed="inputOutputField" default="X3DVertexAttributeNode"/>

<xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/>

<xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>

<xs:element name="fogCoord" type="SFNode" fixed="inputOutputField" default="FogCoordinate"/>

<xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/rendering.html#IndexedLineSet"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:group ref="ColorCoordinateContentModel" minOccurs="0"/>

<xs:attribute name="colorPerVertex" type="SFBool" default="true"/>

<xs:attribute name="colorIndex" type="MFInt32">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="coordIndex" type="MFInt32">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute IndexedLineSet/@colorPerVertex
type SFBool
properties
default true
source <xs:attribute name="colorPerVertex" type="SFBool" default="true"/>

attribute IndexedLineSet/@colorIndex
type MFInt32
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
annotation
appinfo
<xs:minInclusive value="-1"/>
source <xs:attribute name="colorIndex" type="MFInt32">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute IndexedLineSet/@coordIndex
type MFInt32
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
annotation
appinfo
<xs:minInclusive value="-1"/>
source <xs:attribute name="coordIndex" type="MFInt32">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute IndexedLineSet/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
