element NurbsCurve

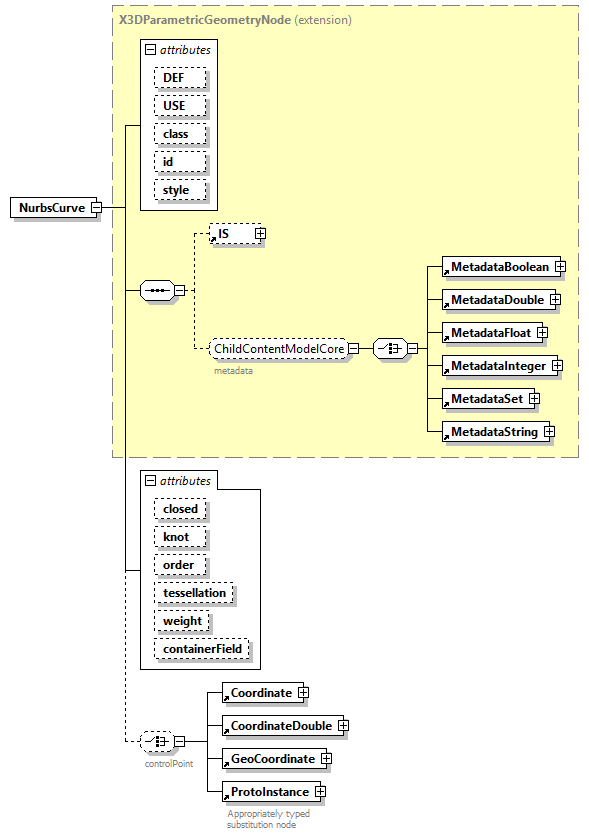

diagram
type	extension of X3DParametricGeometryNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Coordinate CoordinateDouble GeoCoordinate ProtoInstance
used by	element  NurbsSweptSurface group  GeometryContentModelNurbs
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 closed   SFBool      false      knot   MFDouble            order   derived by: SFInt32      3      tessellation   SFInt32      0      weight   MFDouble            appinfo <xs:minExclusive value="0"/> containerField   xs:NMTOKEN      geometry
annotation	appinfo <xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="Coordinate|CoordinateDouble"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="NurbsCurve">   <xs:annotation>     <xs:appinfo>       <xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="Coordinate|CoordinateDouble"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/nurbs.html#NurbsCurve"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DParametricGeometryNode">         <xs:choice minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>controlPoint</xs:documentation>           </xs:annotation>           <xs:element ref="Coordinate"/>           <xs:element ref="CoordinateDouble"/>           <xs:element ref="GeoCoordinate"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="closed" type="SFBool" default="false"/>         <xs:attribute name="knot" type="MFDouble"/>         <xs:attribute name="order" default="3">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="2"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="tessellation" type="SFInt32" default="0"/>         <xs:attribute name="weight" type="MFDouble">           <xs:annotation>             <xs:appinfo>               <xs:minExclusive value="0"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute NurbsCurve/@closed

type	SFBool
properties	default  false
source	<xs:attribute name="closed" type="SFBool" default="false"/>

attribute NurbsCurve/@knot

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="knot" type="MFDouble"/>

attribute NurbsCurve/@order

type	restriction of SFInt32
properties	default  3
facets	Kind  Value  Annotation minInclusive  2
source	<xs:attribute name="order" default="3">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="2"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NurbsCurve/@tessellation

type	SFInt32
properties	default  0
source	<xs:attribute name="tessellation" type="SFInt32" default="0"/>

attribute NurbsCurve/@weight

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minExclusive value="0"/>
source	<xs:attribute name="weight" type="MFDouble">   <xs:annotation>     <xs:appinfo>       <xs:minExclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute NurbsCurve/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
