element NurbsSwungSurface

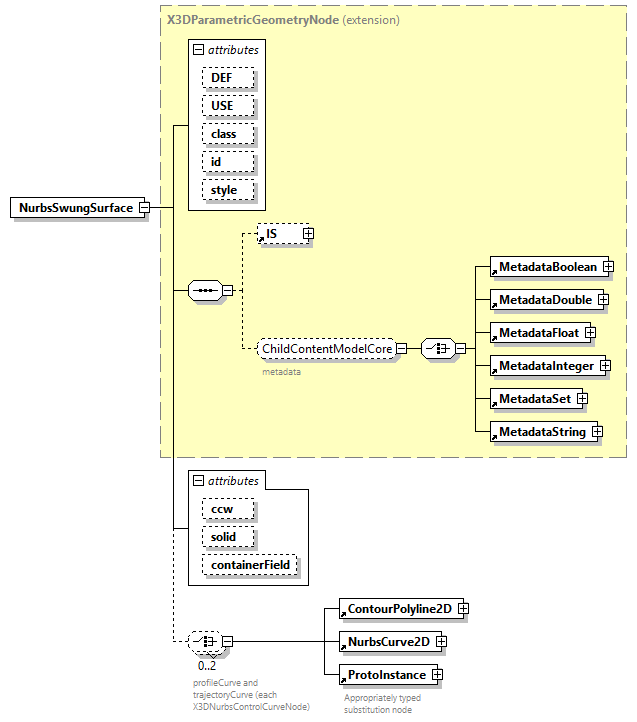

diagram x3d-4.0_diagrams/x3d-4.0_p162.png
type extension of X3DParametricGeometryNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ContourPolyline2D NurbsCurve2D ProtoInstance
used by
elements NurbsSet PickableGroup
group GeometryContentModelNurbs
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

ccw  SFBool    true
solid  SFBool    true
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>
<xs:element name="profileCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>
<xs:element name="trajectoryCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="NurbsSwungSurface">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>

<xs:element name="profileCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>

<xs:element name="trajectoryCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/nurbs.html#NurbsSwungSurface"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DParametricGeometryNode">

<xs:choice minOccurs="0" maxOccurs="2">

<xs:annotation>

<xs:documentation>profileCurve and trajectoryCurve (each X3DNurbsControlCurveNode)</xs:documentation>

</xs:annotation>

<xs:element ref="ContourPolyline2D"/>

<xs:element ref="NurbsCurve2D"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="ccw" type="SFBool" default="true"/>

<xs:attribute name="solid" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute NurbsSwungSurface/@ccw
type SFBool
properties
default true
source <xs:attribute name="ccw" type="SFBool" default="true"/>

attribute NurbsSwungSurface/@solid
type SFBool
properties
default true
source <xs:attribute name="solid" type="SFBool" default="true"/>

attribute NurbsSwungSurface/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
