complexType PGPDataType

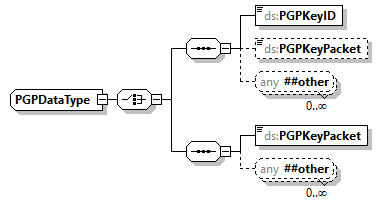

diagram x3d-4.0_diagrams/x3d-4.0_p441.png
namespace http://www.w3.org/2000/09/xmldsig#
children ds:PGPKeyID ds:PGPKeyPacket ds:PGPKeyPacket
used by
element PGPData
source <xs:complexType name="PGPDataType">
  <xs:choice>
    <xs:sequence>
      <xs:element name="PGPKeyID" type="base64Binary"/>
      <xs:element name="PGPKeyPacket" type="base64Binary" minOccurs="0"/>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:sequence>
      <xs:element name="PGPKeyPacket" type="base64Binary"/>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:choice>
</xs:complexType>

element PGPDataType/PGPKeyID
diagram x3d-4.0_diagrams/x3d-4.0_p442.png
namespace http://www.w3.org/2000/09/xmldsig#
type xs:base64Binary
properties
content simple
source <xs:element name="PGPKeyID" type="base64Binary"/>

element PGPDataType/PGPKeyPacket
diagram x3d-4.0_diagrams/x3d-4.0_p443.png
namespace http://www.w3.org/2000/09/xmldsig#
type xs:base64Binary
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="PGPKeyPacket" type="base64Binary" minOccurs="0"/>

element PGPDataType/PGPKeyPacket
diagram x3d-4.0_diagrams/x3d-4.0_p444.png
namespace http://www.w3.org/2000/09/xmldsig#
type xs:base64Binary
properties
content simple
source <xs:element name="PGPKeyPacket" type="base64Binary"/>
