element PackagedShader

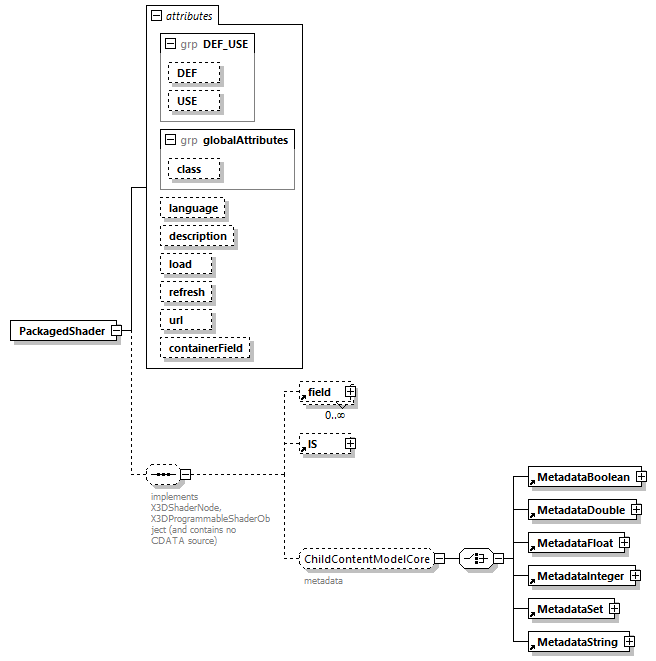

diagram
properties	content  complex
children	field IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	groups  AppearanceChildContentModelNoProtoInstance LoadSensorChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 language   SFString            description   SFString            appinfo added in X3D version 4 load   SFBool      true      autoRefresh   derived by: SFTime      0      autoRefreshTimeLimit   derived by: SFTime      3600      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/> containerField   containerFieldChoicesPackagedShader      shaders
annotation	appinfo <xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/> <xs:element name="field" type="MFNode" default="field"/> <xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/> <!-- language, activate, isSelected, isValid inherited from X3DShaderNode --> <xs:attribute name="language" type="shaderLanguageValues" fixed="initializeOnlyField"/> <xs:attribute name="activate" type="SFBool" fixed="inputOnlyField"/> <xs:attribute name="isSelected" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="isValid" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DShaderNode"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DProgrammableShaderObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 PackagedShader can contain field declarations, but no CDATA section of plain-text source code.
source	<xs:element name="PackagedShader">   <xs:annotation>     <xs:appinfo>       <xs:element name="IS" type="SFNode" fixed="inputOutputField" default="IS"/>       <xs:element name="field" type="MFNode" default="field"/>       <xs:element name="metadata" type="SFNode" fixed="inputOutputField" default="X3DMetadataObject"/>       <!-- language, activate, isSelected, isValid inherited from X3DShaderNode -->       <xs:attribute name="language" type="shaderLanguageValues" fixed="initializeOnlyField"/>       <xs:attribute name="activate" type="SFBool" fixed="inputOnlyField"/>       <xs:attribute name="isSelected" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="isValid" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DShaderNode"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DProgrammableShaderObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 PackagedShader can contain field declarations, but no CDATA section of plain-text source code.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shaders.html#PackagedShader"/>   </xs:annotation>   <xs:complexType>     <xs:sequence minOccurs="0">       <xs:annotation>         <xs:documentation>implements X3DShaderNode, X3DProgrammableShaderObject (and contains no CDATA source)</xs:documentation>       </xs:annotation>       <xs:element ref="field" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="IS" minOccurs="0"/>       <xs:group ref="ChildContentModelCore" minOccurs="0">         <xs:annotation>           <xs:documentation>metadata</xs:documentation>         </xs:annotation>       </xs:group>     </xs:sequence>     <xs:attributeGroup ref="DEF_USE"/>     <xs:attributeGroup ref="globalAttributes"/>     <xs:attribute name="language" type="SFString"/>     <xs:attribute name="description" type="SFString">       <xs:annotation>         <xs:appinfo>added in X3D version 4</xs:appinfo>       </xs:annotation>     </xs:attribute>     <xs:attribute name="load" type="SFBool" default="true"/>     <xs:attribute name="autoRefresh" default="0">       <!-- type="SFTimeNonNegative" -->       <xs:simpleType>         <xs:restriction base="SFTime">           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="autoRefreshTimeLimit" default="3600">       <!-- type="SFTimeNonNegative" -->       <xs:simpleType>         <xs:restriction base="SFTime">           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="url" type="MFString">       <xs:annotation>         <xs:appinfo>           <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>           <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>         </xs:appinfo>       </xs:annotation>     </xs:attribute>     <xs:attribute name="containerField" type="containerFieldChoicesPackagedShader" default="shaders"/>   </xs:complexType> </xs:element>

attribute PackagedShader/@language

type	SFString
source	<xs:attribute name="language" type="SFString"/>

attribute PackagedShader/@description

type	SFString
annotation	appinfo added in X3D version 4
source	<xs:attribute name="description" type="SFString">   <xs:annotation>     <xs:appinfo>added in X3D version 4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute PackagedShader/@load

type	SFBool
properties	default  true
source	<xs:attribute name="load" type="SFBool" default="true"/>

attribute PackagedShader/@autoRefresh

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefresh" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute PackagedShader/@autoRefreshTimeLimit

type	restriction of SFTime
properties	default  3600
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefreshTimeLimit" default="3600">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute PackagedShader/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute PackagedShader/@containerField

type	containerFieldChoicesPackagedShader
properties	default  shaders
facets	Kind  Value  Annotation enumeration  shaders appinfo parent node is an Appearance node enumeration  children appinfo parent node is LoadSensor (formerly watchList in X3D3)
source	<xs:attribute name="containerField" type="containerFieldChoicesPackagedShader" default="shaders"/>
