element PhysicalMaterial

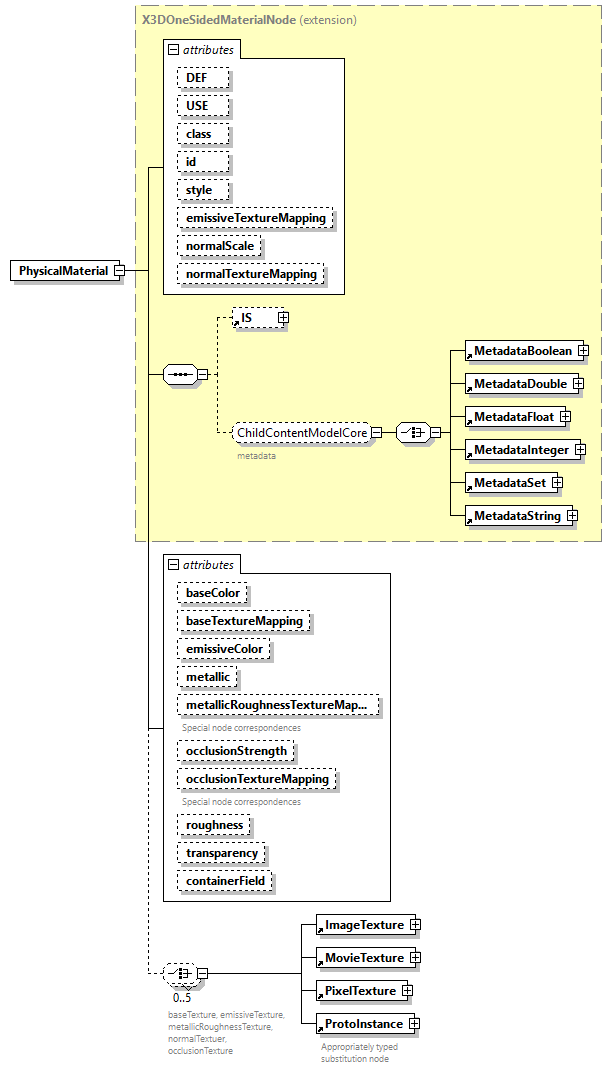

diagram
type	extension of X3DOneSidedMaterialNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture MovieTexture PixelTexture ProtoInstance
used by	group  AppearanceChildContentModelNoProtoInstance
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 emissiveTextureMapping   xs:NMTOKEN            normalScale   derived by: SFFloat      1      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> normalTextureMapping   xs:NMTOKEN            baseColor   SFColor      1 1 1      baseTextureMapping   xs:NMTOKEN            emissiveColor   SFColor      0 0 0      appinfo                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.                             metallic   unitIntervalType      1      metallicRoughnessTextureMapping   xs:NMTOKEN            documentation Special node correspondences occlusionStrength   unitIntervalType      1      occlusionTextureMapping   xs:NMTOKEN            documentation Special node correspondences roughness   unitIntervalType      1      transparency   unitIntervalType      0      containerField   xs:NMTOKEN      material
annotation	appinfo <xs:element name="baseTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="emissiveTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="metallicRoughnessTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="normalTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:element name="occlusionTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="PhysicalMaterial">   <xs:annotation>     <xs:appinfo>       <xs:element name="baseTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="emissiveTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="metallicRoughnessTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="normalTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:element name="occlusionTexture" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#PhysicalMaterial"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DOneSidedMaterialNode">         <xs:choice minOccurs="0" maxOccurs="5">           <xs:annotation>             <xs:documentation>baseTexture, emissiveTexture, metallicRoughnessTexture, normalTextuer, occlusionTexture</xs:documentation>           </xs:annotation>           <!-- TODO strictly one of each field, any order -->           <xs:element ref="ImageTexture"/>           <xs:element ref="MovieTexture"/>           <xs:element ref="PixelTexture"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="baseColor" type="SFColor" default="1 1 1"/>         <xs:attribute name="baseTextureMapping" type="xs:NMTOKEN"/>         <xs:attribute name="emissiveColor" type="SFColor" default="0 0 0">           <xs:annotation>             <xs:appinfo>                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.                             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="metallic" type="unitIntervalType" default="1"/>         <xs:attribute name="metallicRoughnessTextureMapping" type="xs:NMTOKEN">           <xs:annotation>             <xs:documentation>Special node correspondences</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="occlusionStrength" type="unitIntervalType" default="1"/>         <xs:attribute name="occlusionTextureMapping" type="xs:NMTOKEN">           <xs:annotation>             <xs:documentation>Special node correspondences</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="roughness" type="unitIntervalType" default="1"/>         <xs:attribute name="transparency" type="unitIntervalType" default="0"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute PhysicalMaterial/@baseColor

type	SFColor
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="baseColor" type="SFColor" default="1 1 1"/>

attribute PhysicalMaterial/@baseTextureMapping

type	xs:NMTOKEN
source	<xs:attribute name="baseTextureMapping" type="xs:NMTOKEN"/>

attribute PhysicalMaterial/@emissiveColor

type	SFColor
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.
source	<xs:attribute name="emissiveColor" type="SFColor" default="0 0 0">   <xs:annotation>     <xs:appinfo>                                 A Material with emissiveColor not equal to (0,0,0) and diffuseColor equal to (0,0,0) is an unlit material.                             </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute PhysicalMaterial/@metallic

type	unitIntervalType
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="metallic" type="unitIntervalType" default="1"/>

attribute PhysicalMaterial/@metallicRoughnessTextureMapping

type	xs:NMTOKEN
annotation	documentation Special node correspondences
source	<xs:attribute name="metallicRoughnessTextureMapping" type="xs:NMTOKEN">   <xs:annotation>     <xs:documentation>Special node correspondences</xs:documentation>   </xs:annotation> </xs:attribute>

attribute PhysicalMaterial/@occlusionStrength

type	unitIntervalType
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="occlusionStrength" type="unitIntervalType" default="1"/>

attribute PhysicalMaterial/@occlusionTextureMapping

type	xs:NMTOKEN
annotation	documentation Special node correspondences
source	<xs:attribute name="occlusionTextureMapping" type="xs:NMTOKEN">   <xs:annotation>     <xs:documentation>Special node correspondences</xs:documentation>   </xs:annotation> </xs:attribute>

attribute PhysicalMaterial/@roughness

type	unitIntervalType
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="roughness" type="unitIntervalType" default="1"/>

attribute PhysicalMaterial/@transparency

type	unitIntervalType
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="transparency" type="unitIntervalType" default="0"/>

attribute PhysicalMaterial/@containerField

type	xs:NMTOKEN
properties	default  material
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="material"/>
