x3d-4.0 - RigidBodyContentModel

group RigidBodyContentModel

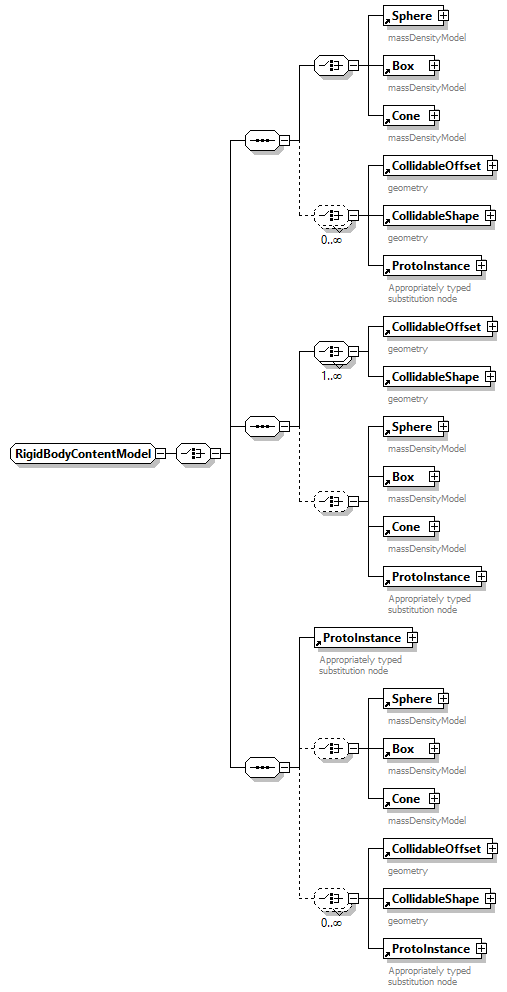

diagram

children

Sphere Box Cone CollidableOffset CollidableShape ProtoInstance

used by

element

RigidBody

annotation

appinfo

RigidBodyContentModel can contain X3DNBodyCollidableNode nodes as a geometry field, plus a Sphere, Box, or Cone as a massDensityModel field.

source

<xs:group name="RigidBodyContentModel">
<xs:annotation>
    <xs:appinfo>
                RigidBodyContentModel can contain X3DNBodyCollidableNode nodes as a geometry field, plus a Sphere, Box, or Cone as a massDensityModel field.
            </xs:appinfo>
    <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/rigidBodyPhysics.html#RigidBody"/>
</xs:annotation>
<xs:choice>
    <xs:sequence>
      <xs:choice>
        <xs:element ref="Sphere">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="Box">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="Cone">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
      <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element ref="CollidableOffset">
          <xs:annotation>
            <xs:documentation>geometry</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="CollidableShape">
          <xs:annotation>
            <xs:documentation>geometry</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="ProtoInstance">
          <xs:annotation>
            <xs:documentation>Appropriately typed substitution node</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:sequence>
    <xs:sequence>
      <xs:choice maxOccurs="unbounded">
        <xs:element ref="CollidableOffset">
          <xs:annotation>
            <xs:documentation>geometry</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="CollidableShape">
          <xs:annotation>
            <xs:documentation>geometry</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
      <xs:choice minOccurs="0">
        <xs:element ref="Sphere">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="Box">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="Cone">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="ProtoInstance">
          <xs:annotation>
            <xs:documentation>Appropriately typed substitution node</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:sequence>
    <xs:sequence>
      <xs:element ref="ProtoInstance">
        <xs:annotation>
          <xs:documentation>Appropriately typed substitution node</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:choice minOccurs="0">
        <xs:element ref="Sphere">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="Box">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="Cone">
          <xs:annotation>
            <xs:documentation>massDensityModel</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
      <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element ref="CollidableOffset">
          <xs:annotation>
            <xs:documentation>geometry</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="CollidableShape">
          <xs:annotation>
            <xs:documentation>geometry</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="ProtoInstance">
          <xs:annotation>
            <xs:documentation>Appropriately typed substitution node</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:sequence>
</xs:choice>
</xs:group>
