element SegmentedVolumeData

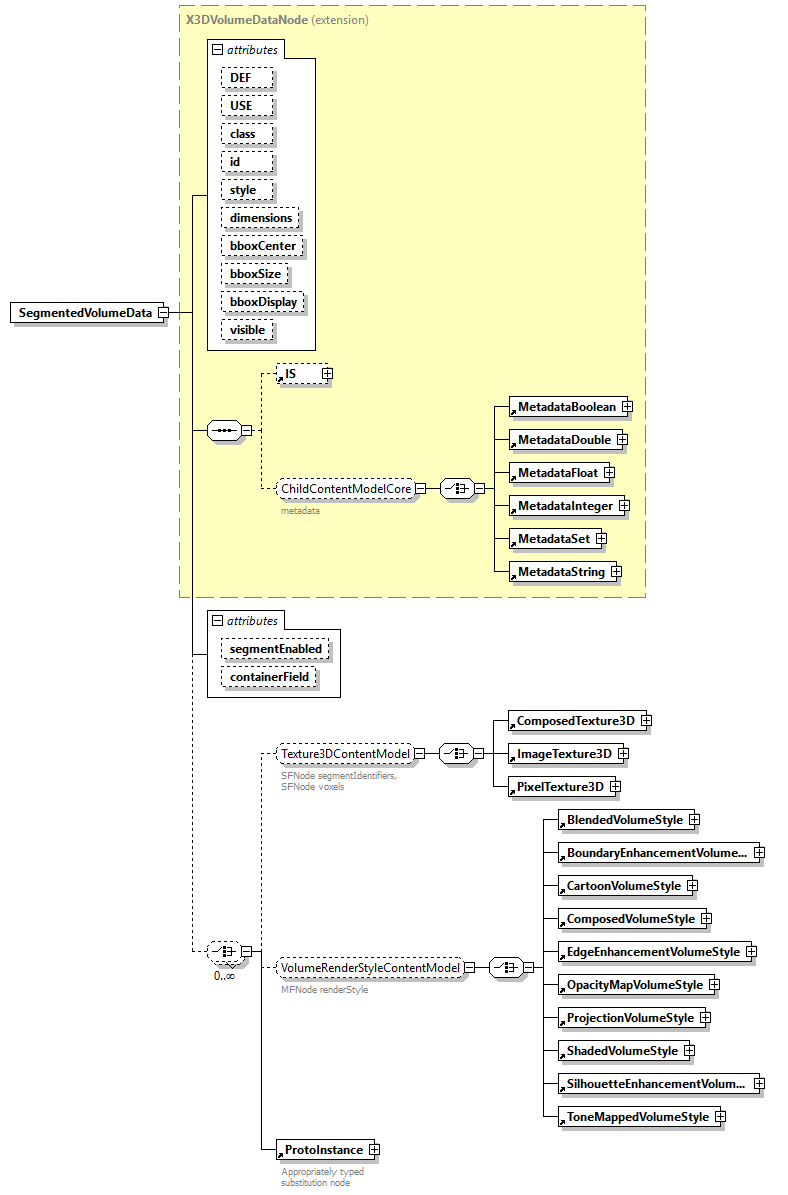

diagram
type	extension of X3DVolumeDataNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ComposedTexture3D ImageTexture3D PixelTexture3D BlendedVolumeStyle BoundaryEnhancementVolumeStyle CartoonVolumeStyle ComposedVolumeStyle EdgeEnhancementVolumeStyle OpacityMapVolumeStyle ProjectionVolumeStyle ShadedVolumeStyle SilhouetteEnhancementVolumeStyle ToneMappedVolumeStyle ProtoInstance
used by	group  ChildContentModelFull
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 dimensions   SFVec3f      1 1 1      appinfo <xs:minExclusive value="0"/> bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      bboxDisplay   SFBool      false      visible   SFBool      true      segmentEnabled   MFBool            containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="renderStyle" type="MFNode" fixed="inputOutputField" default="X3DVolumeRenderStyleNode"/> <xs:element name="segmentIdentifiers" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/> <xs:element name="voxels" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="SegmentedVolumeData">   <xs:annotation>     <xs:appinfo>       <xs:element name="renderStyle" type="MFNode" fixed="inputOutputField" default="X3DVolumeRenderStyleNode"/>       <xs:element name="segmentIdentifiers" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>       <xs:element name="voxels" type="SFNode" fixed="inputOutputField" default="X3DTexture3DNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="VolumeRendering"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/volume.html#SegmentedVolumeData"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DVolumeDataNode">         <xs:choice minOccurs="0" maxOccurs="unbounded">           <xs:group ref="Texture3DContentModel" minOccurs="0">             <xs:annotation>               <xs:documentation>SFNode segmentIdentifiers, SFNode voxels</xs:documentation>             </xs:annotation>           </xs:group>           <xs:group ref="VolumeRenderStyleContentModel" minOccurs="0">             <xs:annotation>               <xs:documentation>MFNode renderStyle</xs:documentation>             </xs:annotation>           </xs:group>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="segmentEnabled" type="MFBool"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute SegmentedVolumeData/@segmentEnabled

type	MFBool
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((true|false)\s*,?\s*)*
source	<xs:attribute name="segmentEnabled" type="MFBool"/>

attribute SegmentedVolumeData/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
