element ShaderPart

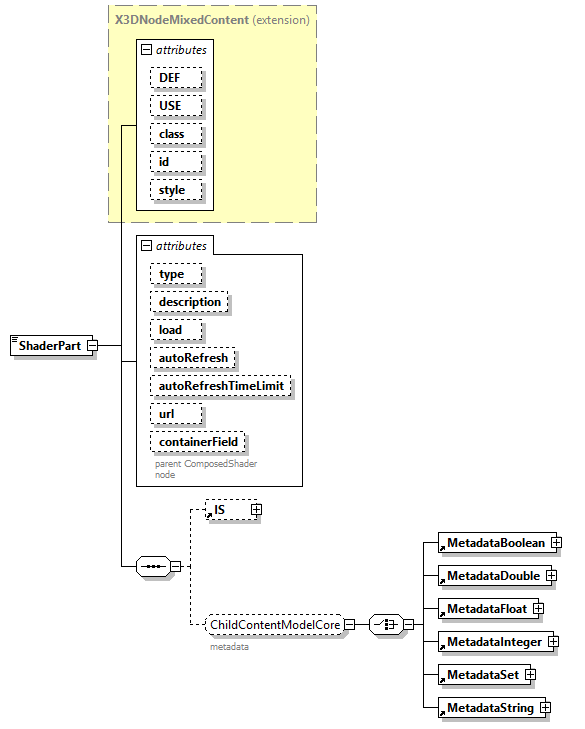

diagram
type	extension of X3DNodeMixedContent
properties	content  complex mixed  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  ComposedShader group  LoadSensorChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 type   xs:NMTOKEN      VERTEX      description   SFString            appinfo added in X3D version 4 load   SFBool      true      autoRefresh   derived by: SFTime      0      autoRefreshTimeLimit   derived by: SFTime      3600      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/> containerField   containerFieldChoicesShaderPart      parts      documentation parent ComposedShader node
annotation	appinfo <!-- optional values, can be extended --> <xs:attribute name="type" type="shaderPartTypeValues"/> <xs:attribute name="sourceCode" type="xs:string" fixed="inputOutputField"> <xs:annotation> <xs:appinfo>Embedded scripting source code can be contained within the parent node as a plain-text CDATA block, without requiring escaping of special characters.</xs:appinfo> </xs:annotation> </xs:attribute> <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 ShaderPart can contain a CDATA section of plain-text source code.
source	<xs:element name="ShaderPart">   <xs:annotation>     <xs:appinfo>       <!-- optional values, can be extended -->       <xs:attribute name="type" type="shaderPartTypeValues"/>       <xs:attribute name="sourceCode" type="xs:string" fixed="inputOutputField">         <xs:annotation>           <xs:appinfo>Embedded scripting source code can be contained within the parent node as a plain-text CDATA block, without requiring escaping of special characters.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 ShaderPart can contain a CDATA section of plain-text source code.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shaders.html#ShaderPart"/>   </xs:annotation>   <xs:complexType mixed="true">     <xs:complexContent>       <xs:extension base="X3DNodeMixedContent">         <xs:sequence>           <xs:element ref="IS" minOccurs="0"/>           <xs:group ref="ChildContentModelCore" minOccurs="0">             <xs:annotation>               <xs:documentation>metadata</xs:documentation>             </xs:annotation>           </xs:group>         </xs:sequence>         <xs:attribute name="type" type="xs:NMTOKEN" default="VERTEX"/>         <xs:attribute name="description" type="SFString">           <xs:annotation>             <xs:appinfo>added in X3D version 4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="load" type="SFBool" default="true"/>         <xs:attribute name="autoRefresh" default="0">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="autoRefreshTimeLimit" default="3600">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="url" type="MFString">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="containerFieldChoicesShaderPart" default="parts">           <xs:annotation>             <xs:documentation>parent ComposedShader node</xs:documentation>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ShaderPart/@type

type	xs:NMTOKEN
properties	default  VERTEX
source	<xs:attribute name="type" type="xs:NMTOKEN" default="VERTEX"/>

attribute ShaderPart/@description

type	SFString
annotation	appinfo added in X3D version 4
source	<xs:attribute name="description" type="SFString">   <xs:annotation>     <xs:appinfo>added in X3D version 4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ShaderPart/@load

type	SFBool
properties	default  true
source	<xs:attribute name="load" type="SFBool" default="true"/>

attribute ShaderPart/@autoRefresh

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefresh" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute ShaderPart/@autoRefreshTimeLimit

type	restriction of SFTime
properties	default  3600
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefreshTimeLimit" default="3600">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute ShaderPart/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ShaderPart/@containerField

type	containerFieldChoicesShaderPart
properties	default  parts
facets	Kind  Value  Annotation enumeration  parts appinfo parent node is ComposedShader node enumeration  children appinfo parent node is LoadSensor (formerly watchList in X3D3)
annotation	documentation parent ComposedShader node
source	<xs:attribute name="containerField" type="containerFieldChoicesShaderPart" default="parts">   <xs:annotation>     <xs:documentation>parent ComposedShader node</xs:documentation>   </xs:annotation> </xs:attribute>
