element TextureCoordinate4D

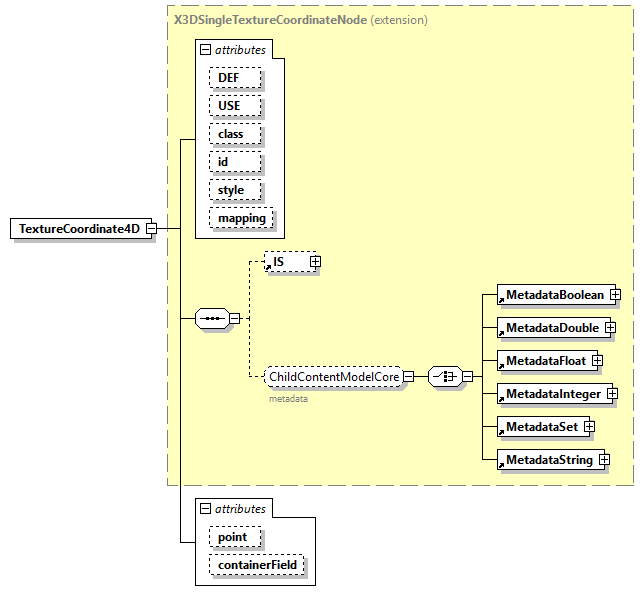

diagram
type	extension of X3DSingleTextureCoordinateNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  ElevationGrid group  ComposedGeometryContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 mapping   xs:NMTOKEN            point   MFVec4f            containerField   xs:NMTOKEN      texCoord
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing3D"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="TextureCoordinate4D">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing3D"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texture3D.html#TextureCoordinate4D"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DSingleTextureCoordinateNode">         <xs:attribute name="point" type="MFVec4f"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="texCoord"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute TextureCoordinate4D/@point

type	MFVec4f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="point" type="MFVec4f"/>

attribute TextureCoordinate4D/@containerField

type	xs:NMTOKEN
properties	default  texCoord
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="texCoord"/>
