element TextureCoordinateGenerator

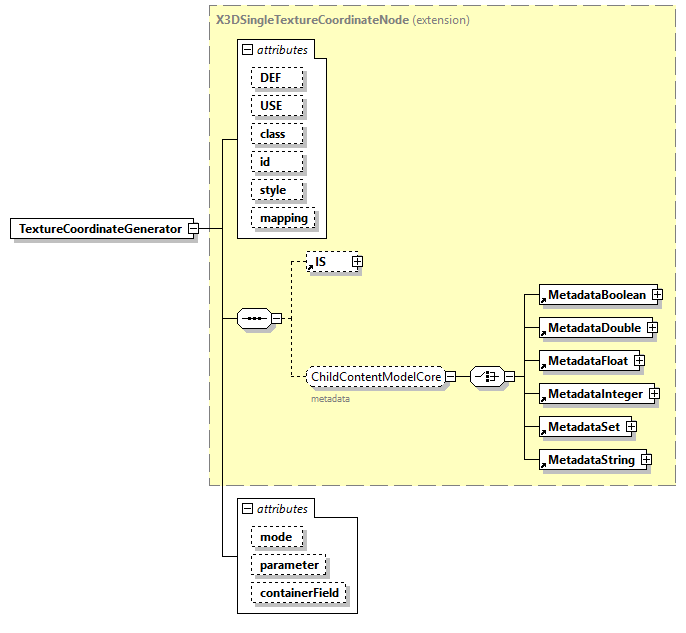

diagram
type	extension of X3DSingleTextureCoordinateNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  ElevationGrid MultiTextureCoordinate NurbsPatchSurface NurbsTrimmedSurface ParticleSystem groups  ColorCoordinateNormalTexCoordContentModel ColorNormalTexCoordContentModel ComposedGeometryContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 mapping   xs:NMTOKEN            mode   textureCoordinateGeneratorModeChoices      SPHERE      parameter   MFFloat            containerField   containerFieldChoicesTextureCoordinate      texCoord
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="TextureCoordinateGenerator">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texturing.html#TextureCoordinateGenerator"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DSingleTextureCoordinateNode">         <xs:attribute name="mode" type="textureCoordinateGeneratorModeChoices" default="SPHERE"/>         <xs:attribute name="parameter" type="MFFloat"/>         <xs:attribute name="containerField" type="containerFieldChoicesTextureCoordinate" default="texCoord"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute TextureCoordinateGenerator/@mode

type	textureCoordinateGeneratorModeChoices
properties	default  SPHERE
facets	Kind  Value  Annotation enumeration  SPHERE appinfo Creates texture coordinates for a spherical environment enumeration  CAMERASPACENORMAL appinfo Use vertex normal, transformed to camera space, as input texture coordinates enumeration  CAMERASPACEPOSITION appinfo Use vertex position, transformed to camera space, as input texture coordinates enumeration  CAMERASPACEREFLECTIONVECTOR appinfo Use reflection vector, transformed to camera space, as input texture coordinates enumeration  SPHERE-LOCAL appinfo Sphere mapping but in local coordinates enumeration  COORD appinfo Use vertex coordinates enumeration  COORD-EYE appinfo Use vertex coordinates transformed to camera space enumeration  NOISE appinfo Apply Perlin solid noise function on vertex coordinates enumeration  NOISE-EYE appinfo Apply Perlin solid noise function on vertex coordinates transformed to camera space enumeration  SPHERE-REFLECT appinfo similar to CAMERASPACEREFLECTIONVECTOR with optional index of refraction enumeration  SPHERE-REFLECT-LOCAL appinfo Similar to SPHERE-REFLECT transformed to camera space
source	<xs:attribute name="mode" type="textureCoordinateGeneratorModeChoices" default="SPHERE"/>

attribute TextureCoordinateGenerator/@parameter

type	MFFloat
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="parameter" type="MFFloat"/>

attribute TextureCoordinateGenerator/@containerField

type	containerFieldChoicesTextureCoordinate
properties	default  texCoord
facets	Kind  Value  Annotation enumeration  texCoord appinfo parent node is a geometry node enumeration  texCoordRamp appinfo parent node is ParticleSystem
source	<xs:attribute name="containerField" type="containerFieldChoicesTextureCoordinate" default="texCoord"/>
