element VolumeEmitter

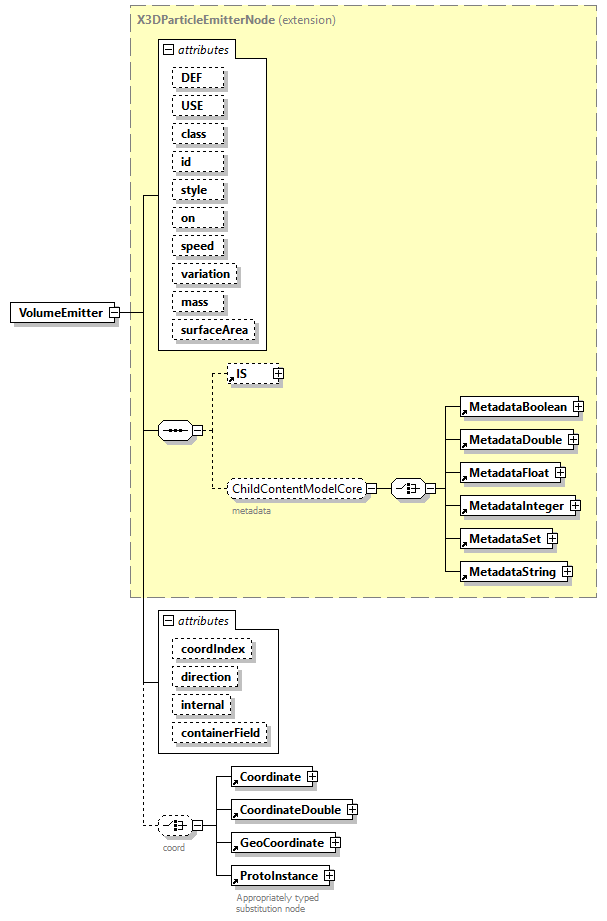

diagram
type	extension of X3DParticleEmitterNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Coordinate CoordinateDouble GeoCoordinate ProtoInstance
used by	element  ParticleSystem
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 on   SFBool      true      speed   derived by: SFFloat      0      variation   derived by: SFFloat      0.25      mass   derived by: SFFloat      0      surfaceArea   derived by: SFFloat      0      coordIndex   MFInt32      -1      appinfo <xs:minInclusive value="-1"/> direction   SFVec3f      0 1 0      appinfo <xs:minInclusive value="-1"/> <xs:maxInclusive value="1"/> internal   SFBool      true      containerField   xs:NMTOKEN      emitter
annotation	appinfo <xs:attribute name="set_coordIndex" type="MFInt32" fixed="inputOnlyField"> <xs:annotation> <xs:appinfo> <xs:minInclusive value="-1"/> </xs:appinfo> </xs:annotation> </xs:attribute> <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="ParticleSystems"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="VolumeEmitter">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="set_coordIndex" type="MFInt32" fixed="inputOnlyField">         <xs:annotation>           <xs:appinfo>             <xs:minInclusive value="-1"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="ParticleSystems"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/particleSystems.html#VolumeEmitter"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DParticleEmitterNode">         <xs:choice minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>coord</xs:documentation>           </xs:annotation>           <xs:element ref="Coordinate"/>           <xs:element ref="CoordinateDouble"/>           <xs:element ref="GeoCoordinate"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="coordIndex" type="MFInt32" default="-1">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="-1"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="direction" type="SFVec3f" default="0 1 0">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="-1"/>               <xs:maxInclusive value="1"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="internal" type="SFBool" default="true"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="emitter"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute VolumeEmitter/@coordIndex

type	MFInt32
properties	default  -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="-1"/>
source	<xs:attribute name="coordIndex" type="MFInt32" default="-1">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="-1"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VolumeEmitter/@direction

type	SFVec3f
properties	default  0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:minInclusive value="-1"/> <xs:maxInclusive value="1"/>
source	<xs:attribute name="direction" type="SFVec3f" default="0 1 0">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="-1"/>       <xs:maxInclusive value="1"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VolumeEmitter/@internal

type	SFBool
properties	default  true
source	<xs:attribute name="internal" type="SFBool" default="true"/>

attribute VolumeEmitter/@containerField

type	xs:NMTOKEN
properties	default  emitter
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="emitter"/>
