complexType X3DSoundProcessingNode

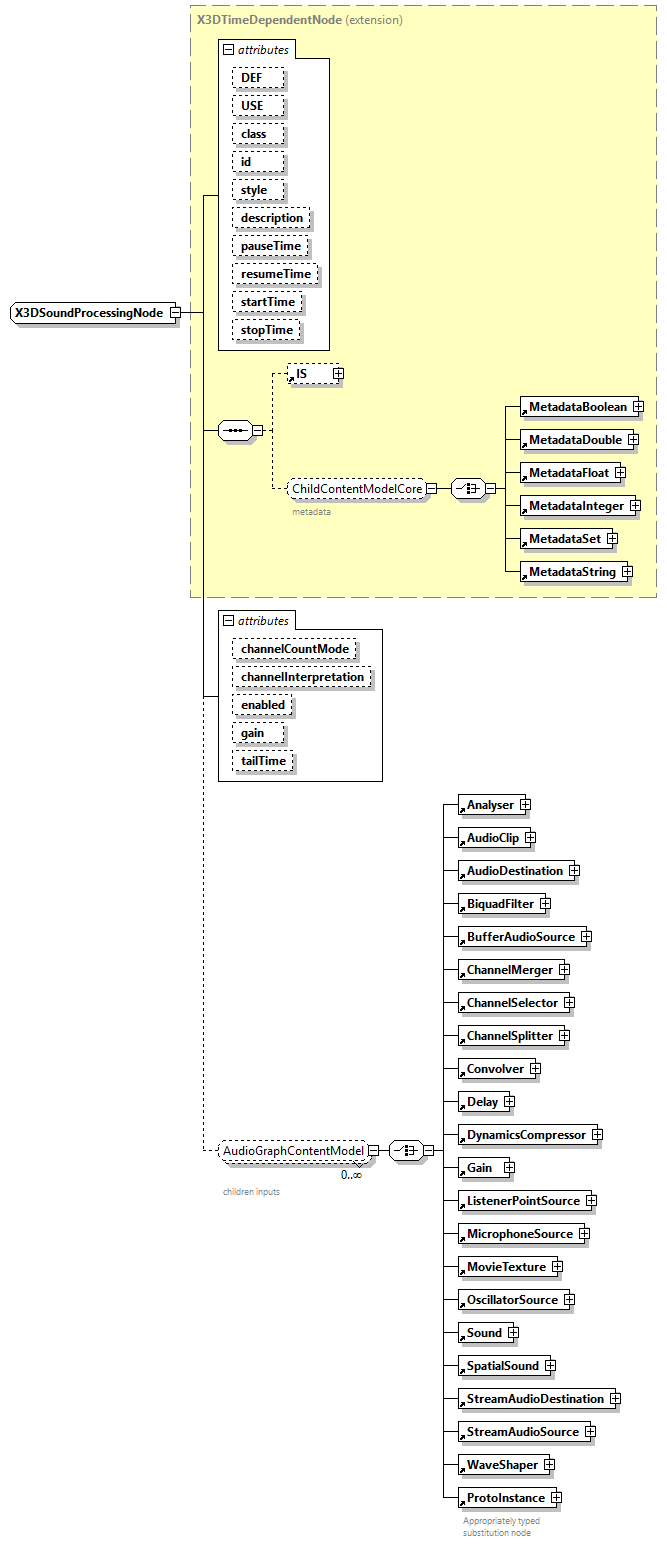

diagram
type	extension of X3DTimeDependentNode
properties	base  X3DTimeDependentNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Analyser AudioClip AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource MovieTexture OscillatorSource Sound SpatialSound StreamAudioDestination StreamAudioSource WaveShaper ProtoInstance
used by	elements  Analyser BiquadFilter Convolver Delay DynamicsCompressor Gain WaveShaper
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            pauseTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> resumeTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> startTime   SFTime      0      stopTime   SFTime      0      channelCountMode   channelCountModeChoices      MAX      channelInterpretation   channelInterpretationChoices      SPEAKERS      enabled   SFBool      true      gain   SFFloat      1      tailTime   derived by: SFTime      0
annotation	appinfo <!-- TODO verify autogeneration of parent definitions for elapsedTime, isActive, isPaused? --> <xs:attribute name="channelCount" type="SFInt32" fixed="outputOnlyField"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DSoundNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                 Base type for all sound processing nodes, which are used to enhance audio with filtering, delaying, changing gain, etc.
source	<xs:complexType name="X3DSoundProcessingNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <!-- TODO verify autogeneration of parent definitions for elapsedTime, isActive, isPaused? -->       <xs:attribute name="channelCount" type="SFInt32" fixed="outputOnlyField"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DSoundNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>                 Base type for all sound processing nodes, which are used to enhance audio with filtering, delaying, changing gain, etc.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/sound.html#X3DSoundProcessingNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DTimeDependentNode">       <xs:group ref="AudioGraphContentModel" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>children inputs</xs:documentation>         </xs:annotation>       </xs:group>       <xs:attribute name="channelCountMode" type="channelCountModeChoices" default="MAX"/>       <xs:attribute name="channelInterpretation" type="channelInterpretationChoices" default="SPEAKERS"/>       <xs:attribute name="enabled" type="SFBool" default="true"/>       <xs:attribute name="gain" type="SFFloat" default="1"/>       <xs:attribute name="tailTime" default="0">         <!-- type="SFTimeNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFTime">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>     </xs:extension>     <!--<xs:attribute name="containerField" type="containerFieldChoicesAudioGraph" default="children"/>-->   </xs:complexContent> </xs:complexType>

attribute X3DSoundProcessingNode/@channelCountMode

type	channelCountModeChoices
properties	default  MAX
facets	Kind  Value  Annotation enumeration  MAX appinfo <xs:attribute name="alias" type="xs:string" default="max"/>                         X3D version of "max" in Web Audio API.                     enumeration  CLAMPED_MAX appinfo <xs:attribute name="alias" type="xs:string" default="clamped-max"/>                         X3D version of "clamped-max" in Web Audio API.                     enumeration  EXPLICIT appinfo <xs:attribute name="alias" type="xs:string" default="explicit"/>                         X3D version of "explicit" in Web Audio API.
source	<xs:attribute name="channelCountMode" type="channelCountModeChoices" default="MAX"/>

attribute X3DSoundProcessingNode/@channelInterpretation

type	channelInterpretationChoices
properties	default  SPEAKERS
facets	Kind  Value  Annotation enumeration  SPEAKERS appinfo                         X3D version of "speakers" in Web Audio API.                     enumeration  DISCRETE appinfo                         X3D version of "discrete" in Web Audio API.
source	<xs:attribute name="channelInterpretation" type="channelInterpretationChoices" default="SPEAKERS"/>

attribute X3DSoundProcessingNode/@enabled

type	SFBool
properties	default  true
source	<xs:attribute name="enabled" type="SFBool" default="true"/>

attribute X3DSoundProcessingNode/@gain

type	SFFloat
properties	default  1
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="gain" type="SFFloat" default="1"/>

attribute X3DSoundProcessingNode/@tailTime

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="tailTime" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>
