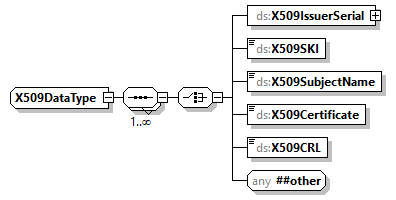

complexType X509DataType
diagram x3d-4.0_diagrams/x3d-4.0_p462.png
namespace http://www.w3.org/2000/09/xmldsig#
children ds:X509IssuerSerial ds:X509SKI ds:X509SubjectName ds:X509Certificate ds:X509CRL
used by
element X509Data
source <xs:complexType name="X509DataType">
  <xs:sequence maxOccurs="unbounded">
    <xs:choice>
      <xs:element name="X509IssuerSerial" type="ds:X509IssuerSerialType"/>
      <xs:element name="X509SKI" type="base64Binary"/>
      <xs:element name="X509SubjectName" type="string"/>
      <xs:element name="X509Certificate" type="base64Binary"/>
      <xs:element name="X509CRL" type="base64Binary"/>
      <xs:any namespace="##other" processContents="lax"/>
    </xs:choice>
  </xs:sequence>
</xs:complexType>

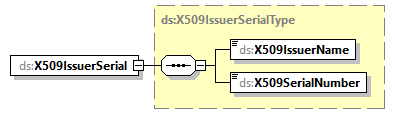

element X509DataType/X509IssuerSerial
diagram x3d-4.0_diagrams/x3d-4.0_p463.png
namespace http://www.w3.org/2000/09/xmldsig#
type ds:X509IssuerSerialType
properties
content complex
children ds:X509IssuerName ds:X509SerialNumber
source <xs:element name="X509IssuerSerial" type="ds:X509IssuerSerialType"/>

element X509DataType/X509SKI
diagram x3d-4.0_diagrams/x3d-4.0_p464.png
namespace http://www.w3.org/2000/09/xmldsig#
type xs:base64Binary
properties
content simple
source <xs:element name="X509SKI" type="base64Binary"/>

element X509DataType/X509SubjectName
diagram x3d-4.0_diagrams/x3d-4.0_p465.png
namespace http://www.w3.org/2000/09/xmldsig#
type xs:string
properties
content simple
source <xs:element name="X509SubjectName" type="string"/>

element X509DataType/X509Certificate
diagram x3d-4.0_diagrams/x3d-4.0_p466.png
namespace http://www.w3.org/2000/09/xmldsig#
type xs:base64Binary
properties
content simple
source <xs:element name="X509Certificate" type="base64Binary"/>

element X509DataType/X509CRL
diagram x3d-4.0_diagrams/x3d-4.0_p467.png
namespace http://www.w3.org/2000/09/xmldsig#
type xs:base64Binary
properties
content simple
source <xs:element name="X509CRL" type="base64Binary"/>
