complexType AbstractOverlayType

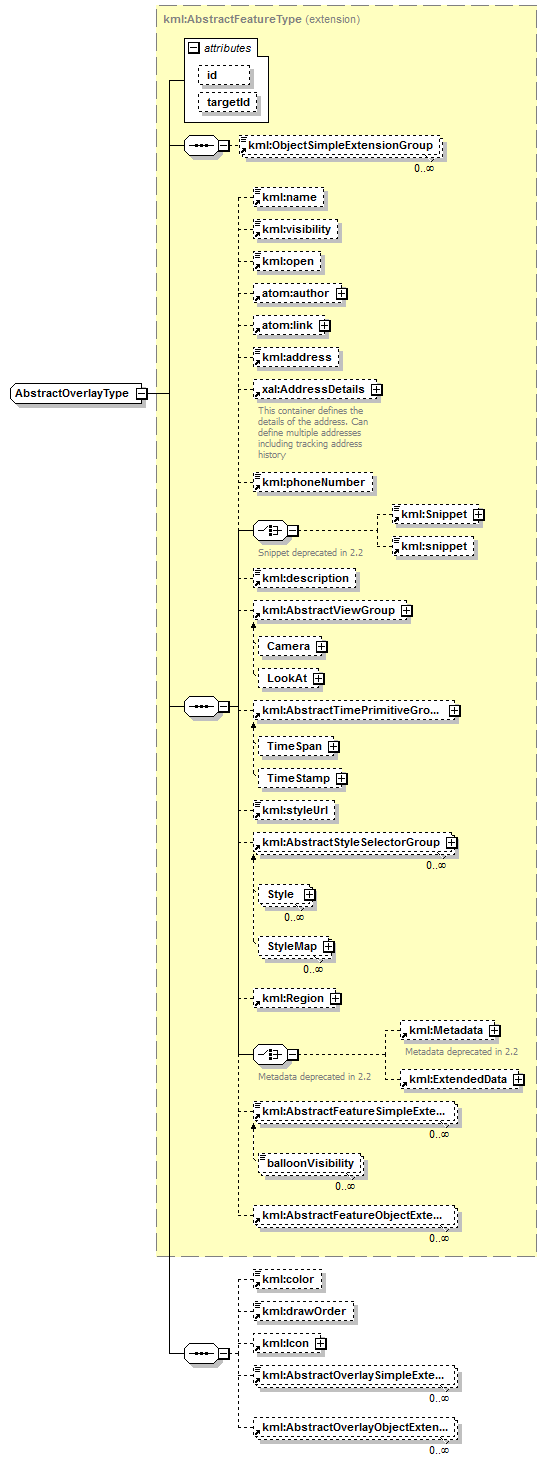

diagram kml22gx_diagrams/kml22gx_p302.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractFeatureType
properties
base kml:AbstractFeatureType
abstract true
children kml:ObjectSimpleExtensionGroup kml:name kml:visibility kml:open atom:author atom:link kml:address AddressDetails kml:phoneNumber kml:Snippet kml:snippet kml:description kml:AbstractViewGroup kml:AbstractTimePrimitiveGroup kml:styleUrl kml:AbstractStyleSelectorGroup kml:Region kml:Metadata kml:ExtendedData kml:AbstractFeatureSimpleExtensionGroup kml:AbstractFeatureObjectExtensionGroup kml:color kml:drawOrder kml:Icon kml:AbstractOverlaySimpleExtensionGroup kml:AbstractOverlayObjectExtensionGroup
used by
element AbstractOverlayGroup
complexTypes GroundOverlayType PhotoOverlayType ScreenOverlayType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="AbstractOverlayType" abstract="true">

<complexContent>

<extension base="kml:AbstractFeatureType">

<sequence>

<element ref="kml:color" minOccurs="0"/>

<element ref="kml:drawOrder" minOccurs="0"/>

<element ref="kml:Icon" minOccurs="0"/>

<element ref="kml:AbstractOverlaySimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:AbstractOverlayObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>
