complexType ScreenOverlayType

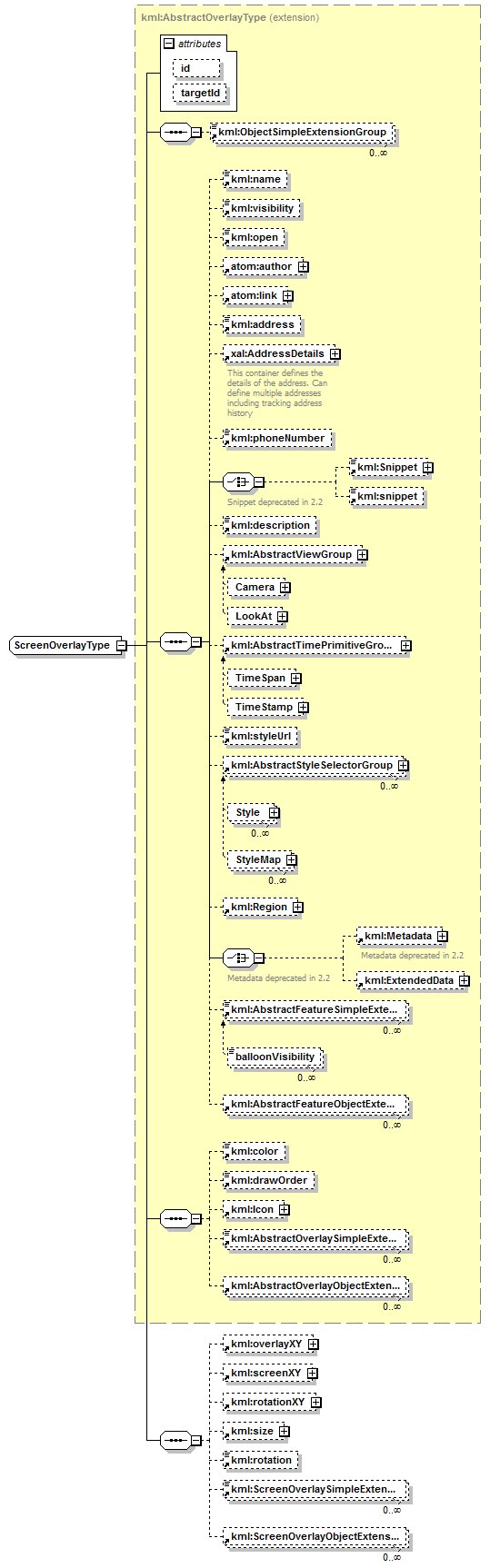

diagram
namespace	http://www.opengis.net/kml/2.2
type	extension of kml:AbstractOverlayType
properties	base  kml:AbstractOverlayType final  #all
children	kml:ObjectSimpleExtensionGroup kml:name kml:visibility kml:open atom:author atom:link kml:address AddressDetails kml:phoneNumber kml:Snippet kml:snippet kml:description kml:AbstractViewGroup kml:AbstractTimePrimitiveGroup kml:styleUrl kml:AbstractStyleSelectorGroup kml:Region kml:Metadata kml:ExtendedData kml:AbstractFeatureSimpleExtensionGroup kml:AbstractFeatureObjectExtensionGroup kml:color kml:drawOrder kml:Icon kml:AbstractOverlaySimpleExtensionGroup kml:AbstractOverlayObjectExtensionGroup kml:overlayXY kml:screenXY kml:rotationXY kml:size kml:rotation kml:ScreenOverlaySimpleExtensionGroup kml:ScreenOverlayObjectExtensionGroup
used by	element  ScreenOverlay
attributes	Name   Type   Use   Default   Fixed   Annotation id   ID   optional         targetId   NCName   optional
source	<complexType name="ScreenOverlayType" final="#all">   <complexContent>     <extension base="kml:AbstractOverlayType">       <sequence>         <element ref="kml:overlayXY" minOccurs="0"/>         <element ref="kml:screenXY" minOccurs="0"/>         <element ref="kml:rotationXY" minOccurs="0"/>         <element ref="kml:size" minOccurs="0"/>         <element ref="kml:rotation" minOccurs="0"/>         <element ref="kml:ScreenOverlaySimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>         <element ref="kml:ScreenOverlayObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>
