element Department

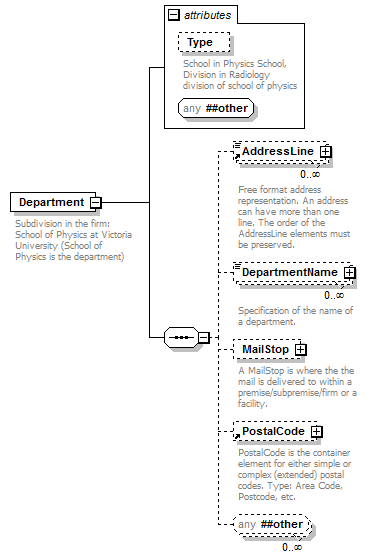

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	content  complex
children	AddressLine DepartmentName MailStop PostalCode
used by	complexTypes  FirmType LargeMailUserType
attributes	Name   Type   Use   Default   Fixed   Annotation Type               documentation School in Physics School, Division in Radiology division of school of physics
annotation	documentation Subdivision in the firm: School of Physics at Victoria University (School of Physics is the department)
source	<element name="Department">   <annotation>     <documentation>Subdivision in the firm: School of Physics at Victoria University (School of Physics is the department)</documentation>   </annotation>   <complexType>     <sequence>       <element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>       <element name="DepartmentName" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Specification of the name of a department.</documentation>         </annotation>         <complexType mixed="true">           <attribute name="Type"/>           <attributeGroup ref="grPostal"/>           <anyAttribute namespace="##other"/>         </complexType>       </element>       <element name="MailStop" type="MailStopType" minOccurs="0">         <annotation>           <documentation>A MailStop is where the the mail is delivered to within a premise/subpremise/firm or a facility.</documentation>         </annotation>       </element>       <element ref="PostalCode" minOccurs="0"/>       <any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>     </sequence>     <attribute name="Type">       <annotation>         <documentation>School in Physics School, Division in Radiology division of school of physics</documentation>       </annotation>     </attribute>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute Department/@Type

annotation	documentation School in Physics School, Division in Radiology division of school of physics
source	<attribute name="Type">   <annotation>     <documentation>School in Physics School, Division in Radiology division of school of physics</documentation>   </annotation> </attribute>

element Department/DepartmentName

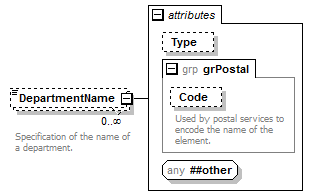

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  unbounded content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Type               Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Specification of the name of a department.
source	<element name="DepartmentName" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Specification of the name of a department.</documentation>   </annotation>   <complexType mixed="true">     <attribute name="Type"/>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute Department/DepartmentName/@Type

source

<attribute name="Type"/>

element Department/MailStop

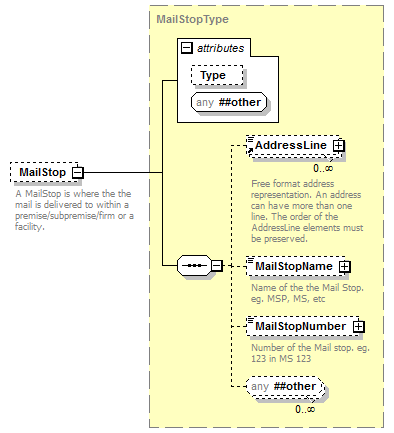

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
type	MailStopType
properties	minOcc  0 maxOcc  1 content  complex
children	AddressLine MailStopName MailStopNumber
attributes	Name   Type   Use   Default   Fixed   Annotation Type
annotation	documentation A MailStop is where the the mail is delivered to within a premise/subpremise/firm or a facility.
source	<element name="MailStop" type="MailStopType" minOccurs="0">   <annotation>     <documentation>A MailStop is where the the mail is delivered to within a premise/subpremise/firm or a facility.</documentation>   </annotation> </element>
