Package Basic.NURBS

Class TrimmedNurbsWithHole

java.lang.Object

Basic.NURBS.TrimmedNurbsWithHole

public class TrimmedNurbsWithHole
extends Object

Scene contains a single NurbsTrimmedSurface node which has two Contour2D child nodes, defining a trimmed outer boundary to the patch and an interior hole in the patch. Scene also contains unit-length line segments defining x-y-z coordinate axes.

Related links: Catalog page TrimmedNurbsWithHole, source TrimmedNurbsWithHole.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	TrimmedNurbsWithHole.x3d
description	Scene contains a single NurbsTrimmedSurface node which has two Contour2D child nodes, defining a trimmed outer boundary to the patch and an interior hole in the patch. Scene also contains unit-length line segments defining x-y-z coordinate axes.
creator	Vincent Marchetti
created	10 February 2012
modified	20 October 2019
subject	NURBS example NurbsTrimmedSurface Contour2D NurbsCurve2D

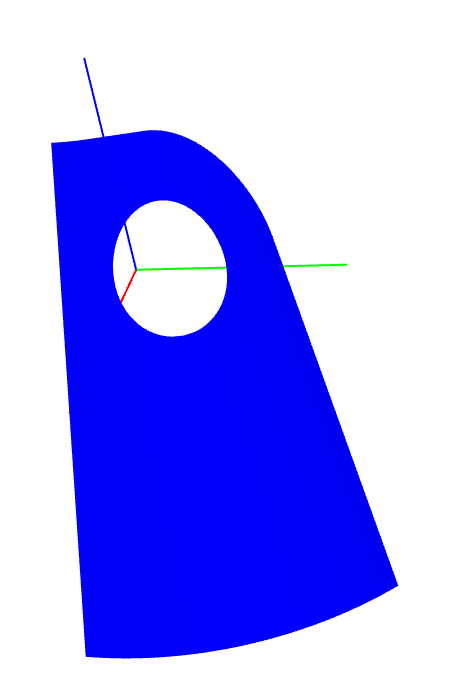

Image	TrimmedNurbsWithHole.jpg

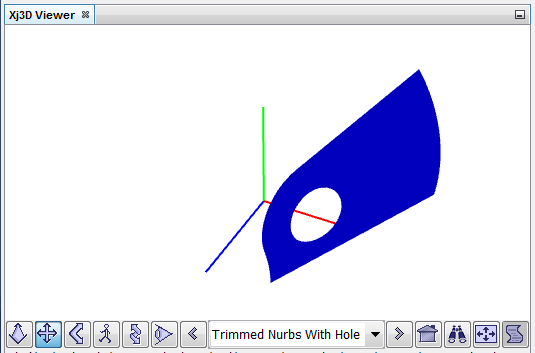

Image	images/TrimmedNurbsWithHoleXj3d.png
reference	originals/trimmed_nurbs_with_hole.x3d
identifier	https://www.web3d.org/x3d/content/examples/Basic/NURBS/TrimmedNurbsWithHole.x3d
generator	Python language scripts using Numpy, SciPy libraries http://numpy.scipy.org
generator	X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license	../license.html
TODO	instantReality Forum Issuehttp://forum.instantreality.org
TODO	BS Contact BitManagement Bug Report: http://www.bitmanagement.de/en/contact

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
TrimmedNurbsWithHole()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

TrimmedNurbsWithHole

public TrimmedNurbsWithHole()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

TrimmedNurbsWithHole model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
