Package ConformanceNist.Appearance.TextureTransform

Class rotation_complex

java.lang.Object
ConformanceNist.Appearance.TextureTransform.rotation_complex
public class rotation_complex extends Object

Test rotation field for ImageTexture mapping to complex geometry. Test browser ability to apply rotations of (left to right) -180, -90, +45, +90 and +180 degrees to an ImageTexture mapped to the faces of complex geometry, mapping with primitive mapping rules. The result is (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet) the first column of geometry should show the VTS logo upside-down and spelling to the left for all faces. The second column of geometry should map the VTS logo with the positive horizontal direction pointing up, and the positive vertical axis pointing left. The third column should map the VTS logo right side up, on a downward 45 degree angle. The fourth column should map the VTS logo vertically downward, with the +T direction to the right. The fifth column should be identical to column #1. Opposite geometry faces should show reversed mapping, and side faces for the IndexedFaceSet should show smeared end pixels of the front and back faces.

Related links: Catalog page rotation_complex, source rotation_complex.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title rotation_complex.x3d

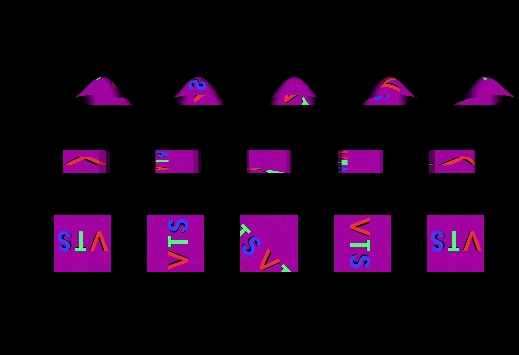

Image rotation_complex-front.jpg

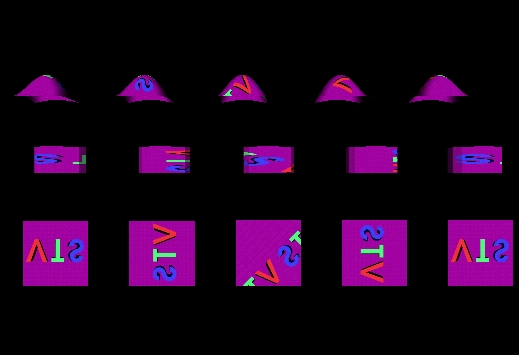

Image rotation_complex-rear.jpg

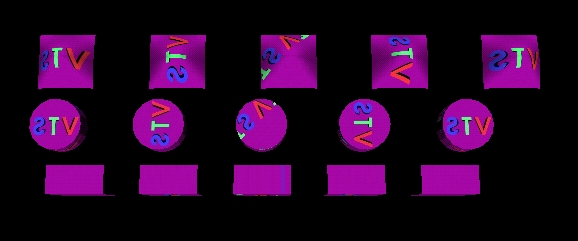

Image rotation_complex-top.jpg

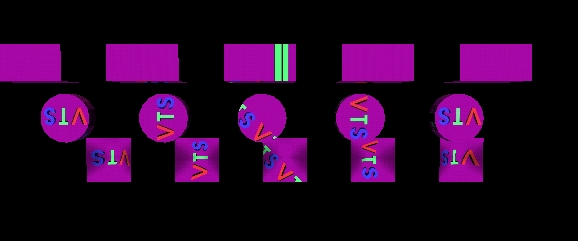

Image rotation_complex-bottom.jpg

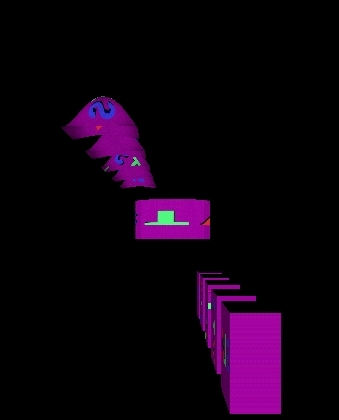

Image rotation_complex-left.jpg

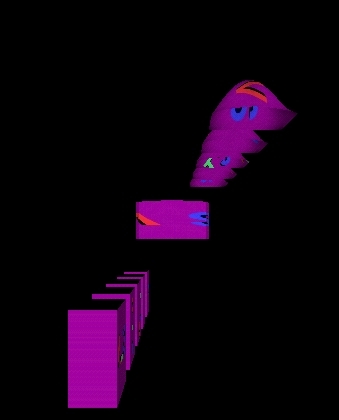

Image rotation_complex-right.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 28 August 2023
description Test rotation field for ImageTexture mapping to complex geometry. Test browser ability to apply rotations of (left to right) -180, -90, +45, +90 and +180 degrees to an ImageTexture mapped to the faces of complex geometry, mapping with primitive mapping rules. The result is (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet) the first column of geometry should show the VTS logo upside-down and spelling to the left for all faces. The second column of geometry should map the VTS logo with the positive horizontal direction pointing up, and the positive vertical axis pointing left. The third column should map the VTS logo right side up, on a downward 45 degree angle. The fourth column should map the VTS logo vertically downward, with the +T direction to the right. The fifth column should be identical to column #1. Opposite geometry faces should show reversed mapping, and side faces for the IndexedFaceSet should show smeared end pixels of the front and back faces.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/rotation_complex.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.
