Package ConformanceNist.Appearance.TextureTransform

Class scale_complex_movietexture

java.lang.Object
ConformanceNist.Appearance.TextureTransform.scale_complex_movietexture
public class scale_complex_movietexture extends Object

Test scale field for MovieTexture mapping to complex geometry. Test browser ability to apply scales of (left to right) -4 -4, -2 -2, 0.4 .9, 2 2, and 4 4 to a MovieTexture mapped to the faces of complex geometry, using the primitive mapping rules. The results are: a 4 X 4 reversed and inverted matrix of VTS logos should appear on the bottom of the ElevationGrid, on the side and bottom end cap of the Extrusion, and on the front of the IndexedFaceSet. The second column should display a reversed and inverted 2 X 2 matrix of VTS logos on the same geometry faces. The third geometry column should map an enlarged V onto the front of these faces. The fourth column should contain an upright 2 X 2 grid of VTS logos on these faces, and the fifth geometry column should contain a 4 X 4 matrix of upright VTS logos on these faces. All opposing faces should have reversed images, and side faces for the IndexedFaceSet should have smeared pixels.

Related links: Catalog page scale_complex_movietexture, source scale_complex_movietexture.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title scale_complex_movietexture.x3d

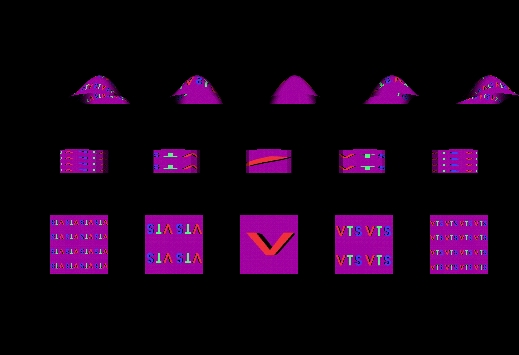

Image scale_complex_movietexture-front.jpg

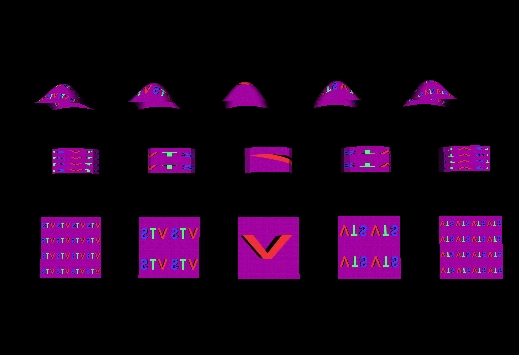

Image scale_complex_movietexture-rear.jpg

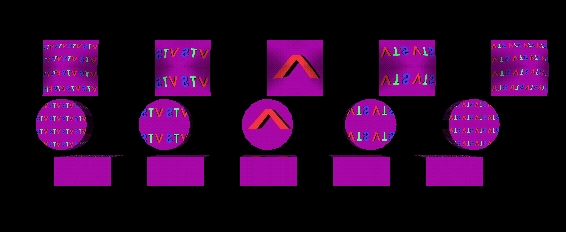

Image scale_complex_movietexture-top.jpg

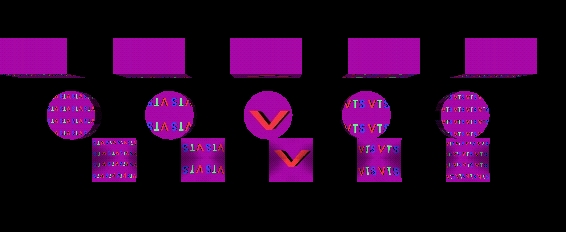

Image scale_complex_movietexture-bottom.jpg

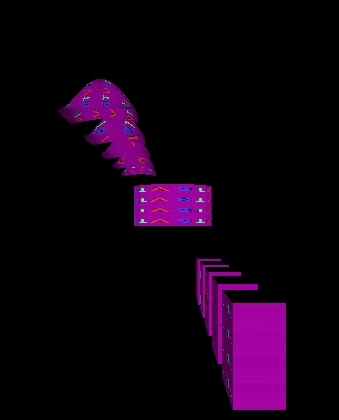

Image scale_complex_movietexture-left.jpg

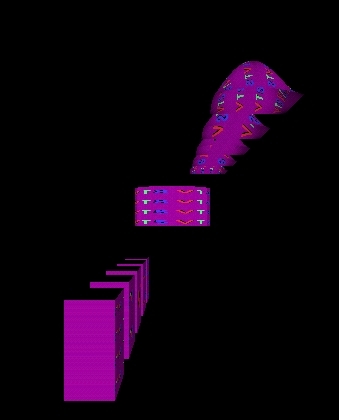

Image scale_complex_movietexture-right.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 28 August 2023
description Test scale field for MovieTexture mapping to complex geometry. Test browser ability to apply scales of (left to right) -4 -4, -2 -2, 0.4 .9, 2 2, and 4 4 to a MovieTexture mapped to the faces of complex geometry, using the primitive mapping rules. The results are: a 4 X 4 reversed and inverted matrix of VTS logos should appear on the bottom of the ElevationGrid, on the side and bottom end cap of the Extrusion, and on the front of the IndexedFaceSet. The second column should display a reversed and inverted 2 X 2 matrix of VTS logos on the same geometry faces. The third geometry column should map an enlarged V onto the front of these faces. The fourth column should contain an upright 2 X 2 grid of VTS logos on these faces, and the fifth geometry column should contain a 4 X 4 matrix of upright VTS logos on these faces. All opposing faces should have reversed images, and side faces for the IndexedFaceSet should have smeared pixels.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/scale_complex_movietexture.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.
