Package ConformanceNist.Lights.PointLight

Class test_red_on_blue

java.lang.Object
ConformanceNist.Lights.PointLight.test_red_on_blue
public class test_red_on_blue extends Object

This test addresses the ability of a browser to apply a red light on a blue object. Four simple geometries are defined on the local coordinate system and the emissive and diffuse color are both set to 0 0 1. A point light is also defined and a red color is associated with it. This light illuminates the objects making them look black. The dot product of the light and object color produce a black appearing object.

Related links: Catalog page test_red_on_blue, source test_red_on_blue.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title test_red_on_blue.x3d

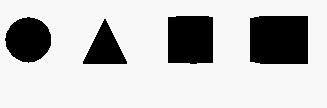

Image test-red-on-blue-front.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 28 August 2023
description This test addresses the ability of a browser to apply a red light on a blue object. Four simple geometries are defined on the local coordinate system and the emissive and diffuse color are both set to 0 0 1. A point light is also defined and a red color is associated with it. This light illuminates the objects making them look black. The dot product of the light and object color produce a black appearing object.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Lights/PointLight/test_red_on_blue.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.
