Class center_primitives

java.lang.Object
ConformanceNist.Appearance.TextureTransform.center_primitives
public class center_primitives extends Object

Test center field for primitive geometry applied with a ImageTexture. Test browser ability to apply a +90 degree (clockwise) rotation center of (left to right) 0 0, 0.33 0.33, -101.66 -101.66, -.5 -.5, 0.66 0.66 and 1 1 to an ImageTexture mapped to the faces of primitive geometry, mapping with the default primitive mapping rules. The result is (for all faces): Column #1 displays the VTS logo centered horizontally and vertically, rotated clockwise 90 degrees on all geometry faces. Column #2 maps the rotated VTS logo centered horizontally, with the logo spelling SVT on all faces.Column #3 maps the VTS logo exactly as was done in column #1. Column #4 maps the rotated VTS logo with the VTS logo centered horizontally, and spelling TSV. Column #5 maps the same as column 1 and column #3.

Related links: Catalog page center_primitives, source center_primitives.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title center_primitives.x3d

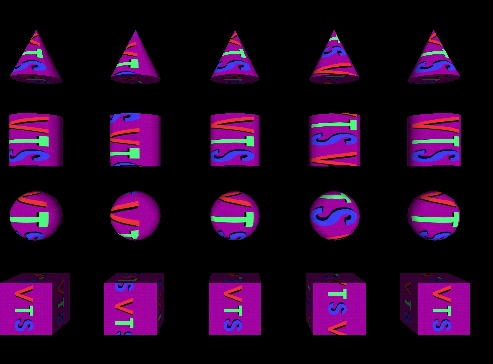

Image center_primitives-front.jpg
Image center_primitives-rear.jpg
Image center_primitives-top.jpg

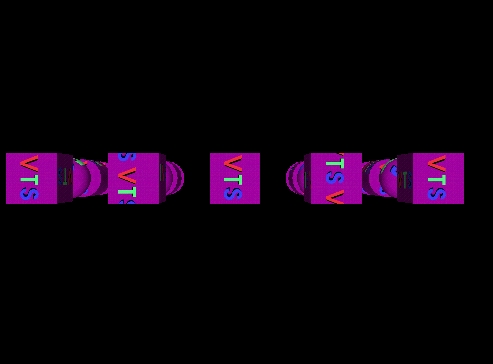

Image center_primitives-bottom.jpg

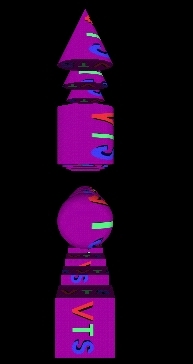

Image center_primitives-left.jpg
Image center_primitives-right.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
creator Michael Kass NIST
translator Don Brutzman
translated 21 January 2001
modified 28 August 2023
description Test center field for primitive geometry applied with a ImageTexture. Test browser ability to apply a +90 degree (clockwise) rotation center of (left to right) 0 0, 0.33 0.33, -101.66 -101.66, -.5 -.5, 0.66 0.66 and 1 1 to an ImageTexture mapped to the faces of primitive geometry, mapping with the default primitive mapping rules. The result is (for all faces): Column #1 displays the VTS logo centered horizontally and vertically, rotated clockwise 90 degrees on all geometry faces. Column #2 maps the rotated VTS logo centered horizontally, with the logo spelling SVT on all faces.Column #3 maps the VTS logo exactly as was done in column #1. Column #4 maps the rotated VTS logo with the VTS logo centered horizontally, and spelling TSV. Column #5 maps the same as column 1 and column #3.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/center_primitives.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

  • Constructor Summary

    Constructors
    Constructor
    Description
    center_primitives()
    Default constructor to create this object.

  • Method Summary

    Modifier and Type
    Method
    Description
    org.web3d.x3d.jsail.Core.X3D
    getX3dModel()
    Provide a shallow copy of the X3D model.
    final void
    initialize()
    Create and initialize the X3D model for this object.
    static void
    main(String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Constructor Details

    • center_primitives

      public center_primitives()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      center_primitives model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
