Class scale_primitives_pixeltexture

java.lang.Object
ConformanceNist.Appearance.TextureTransform.scale_primitives_pixeltexture
public class scale_primitives_pixeltexture extends Object

Test scale field for PixelTexture mapping to primitive geometry.Test browser ability to apply scales of (left to right) -4 -4, -2 -2, .5 .5, 2 2, and 4 4 to a PixelTexture consisting of a square checkerboard of blue (lower left quadrant), yellow (lower right), red (upper right) and green (upper left) mapped to the faces of primitive geometry, mapping with default primitive geometry mapping rules. The result (using the primitive mapping rules) is: 4 X 4 reversed and inverted matrix of reversed and inverted PixelTextures should appear on al1 geometry in the first (far left) column. The second column should display a reversed and inverted 2 X 2 matrix of PixelTextures on all geometry faces. The third geometry column should map a double sized PixelTexture and appear blue on all faces. The fourth column should display a 2 X 2 matrix of right side up pixeltextures, and the fifth column should display a 4 X 4 matrix of right side up pixeltextures.

Related links: Catalog page scale_primitives_pixeltexture, source scale_primitives_pixeltexture.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title scale_primitives_pixeltexture.x3d
Image scale_primitives_pixeltexture-front.jpg

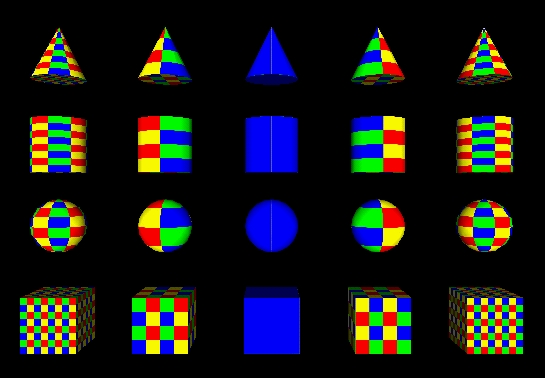

Image scale_primitives_pixeltexture-rear.jpg

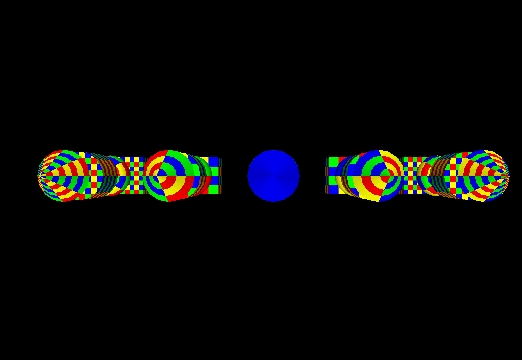

Image scale_primitives_pixeltexture-top.jpg

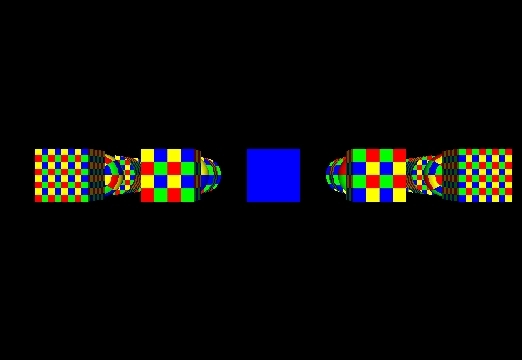

Image scale_primitives_pixeltexture-bottom.jpg

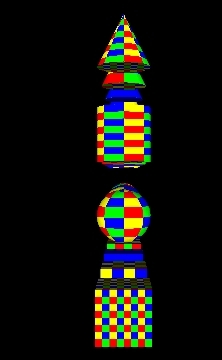

Image scale_primitives_pixeltexture-left.jpg

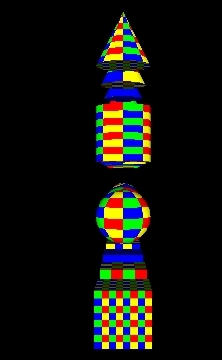

Image scale_primitives_pixeltexture-right.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
creator Michael Kass NIST
translator Don Brutzman
translated 21 January 2001
modified 28 August 2023
description Test scale field for PixelTexture mapping to primitive geometry.Test browser ability to apply scales of (left to right) -4 -4, -2 -2, .5 .5, 2 2, and 4 4 to a PixelTexture consisting of a square checkerboard of blue (lower left quadrant), yellow (lower right), red (upper right) and green (upper left) mapped to the faces of primitive geometry, mapping with default primitive geometry mapping rules. The result (using the primitive mapping rules) is: 4 X 4 reversed and inverted matrix of reversed and inverted PixelTextures should appear on al1 geometry in the first (far left) column. The second column should display a reversed and inverted 2 X 2 matrix of PixelTextures on all geometry faces. The third geometry column should map a double sized PixelTexture and appear blue on all faces. The fourth column should display a 2 X 2 matrix of right side up pixeltextures, and the fifth column should display a 4 X 4 matrix of right side up pixeltextures.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/scale_primitives_pixeltexture.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

  • Constructor Details

    • scale_primitives_pixeltexture

      public scale_primitives_pixeltexture()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      scale_primitives_pixeltexture model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
