Package X3dForAdvancedModeling.Scanning

Class X3dMeshDesignPattern

java.lang.Object

X3dForAdvancedModeling.Scanning.X3dMeshDesignPattern

public class X3dMeshDesignPattern
extends Object

Candidate design pattern for 3D scanner outputs to consistently define the elements of an X3D mesh.

Related links: Catalog page X3dMeshDesignPattern, source X3dMeshDesignPattern.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	X3dMeshDesignPattern.x3d
description	Candidate design pattern for 3D scanner outputs to consistently define the elements of an X3D mesh.
creator	Don Brutzman, Vince Marchetti, Roy Walmsley, Nicholas Polys
created	4 June 2017
modified	13 October 2023
TODO	Upgrade and verify X3D v4.0 XML DTD and Schema to validate
reference	X3dMeshDesignPattern.txt

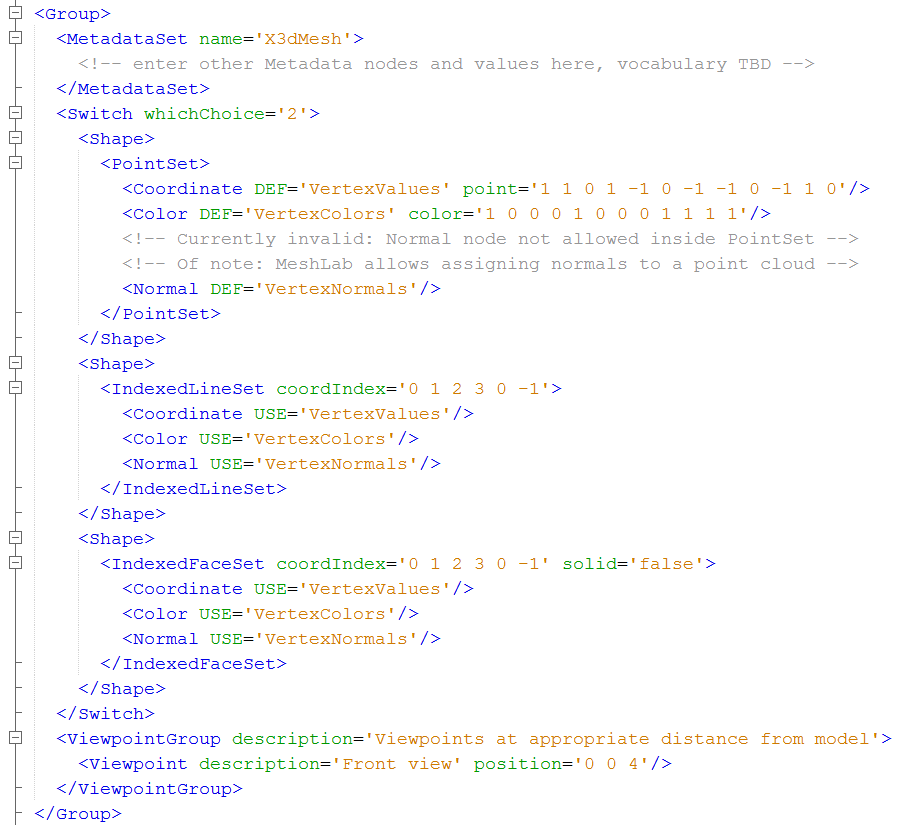

Image	X3dMeshDesignPattern.png
warning	Under development. Note that proposed design pattern for Normal inside PointSet or LineSet/IndexedLineSet is accepted in X3D 4.0 but is not allowed in X3D v3.3.
reference	Web3D 2017 Workshop on 3D Scanning: Use Cases, Workflow and Profile Requirements for X3D
reference	http://web3d2017.web3d.org/program
generator	X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
identifier	https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Scanning/X3dMeshDesignPattern.x3d
license	../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
X3dMeshDesignPattern()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

X3dMeshDesignPattern

public X3dMeshDesignPattern()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

X3dMeshDesignPattern model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
