Package X3dForAdvancedModeling.TextureMapping

Class TextureMapComparisonsCylinder

java.lang.Object

X3dForAdvancedModeling.TextureMapping.TextureMapComparisonsCylinder

public class TextureMapComparisonsCylinder
extends Object

Compare ImageTexture mapping for a variety of geometry nodes. This is an excellent test scene for different X3D browsers.

Related links: Catalog page TextureMapComparisonsCylinder, source TextureMapComparisonsCylinder.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	TextureMapComparisonsCylinder.x3d
description	Compare ImageTexture mapping for a variety of geometry nodes. This is an excellent test scene for different X3D browsers.
creator	Sungmin Kwon and Don Brutzman
created	17 December 2017
modified	21 January 2020
reference	TextureMapTesting.pdf

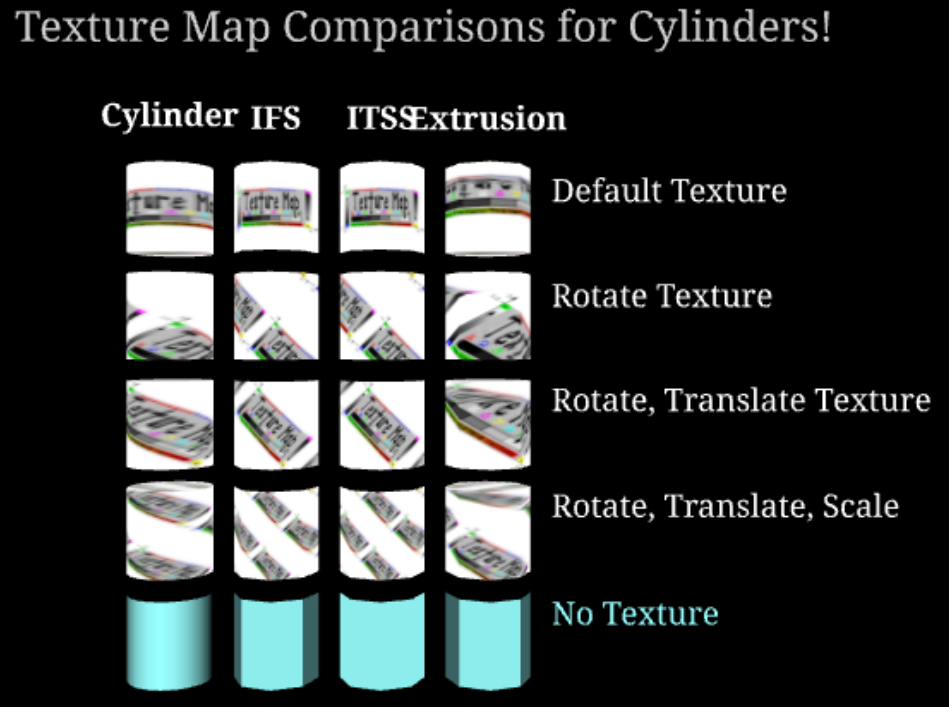

Image	TextureMapComparisonsCylinderX_ITE.png

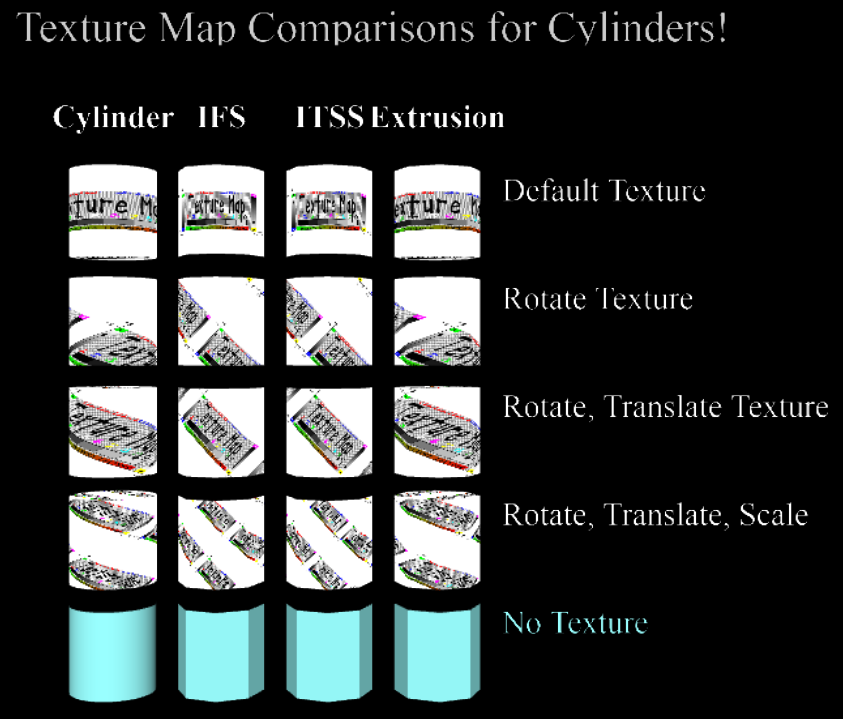

Image	TextureMapComparisonsCylinderX3DOM.png

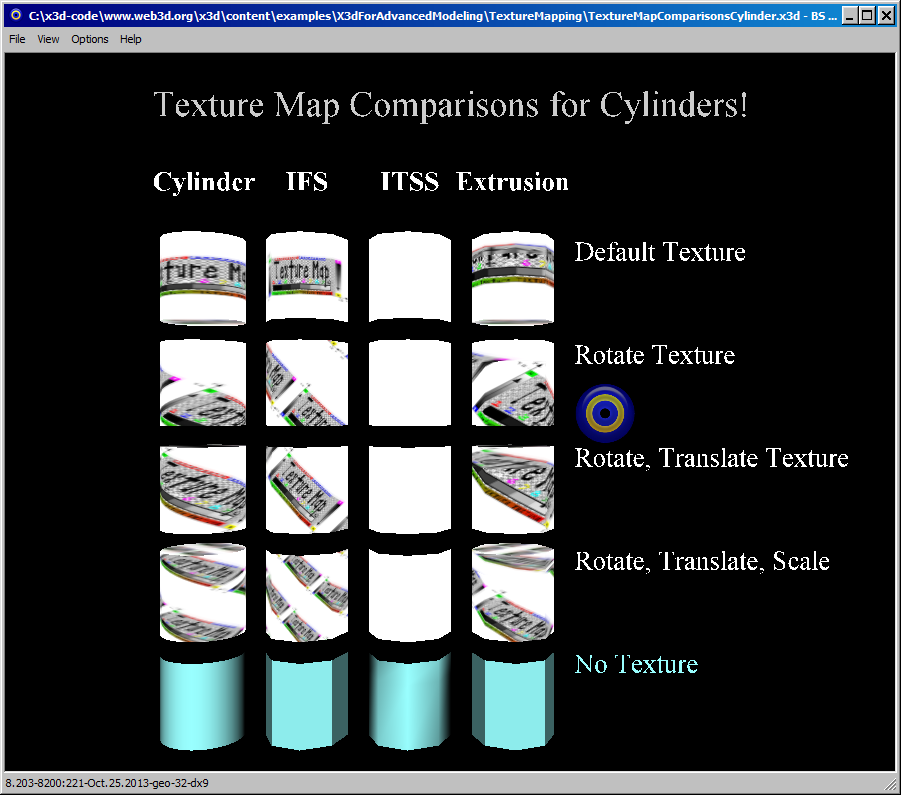

Image	TextureMapComparisonsCylinderBSContact.png

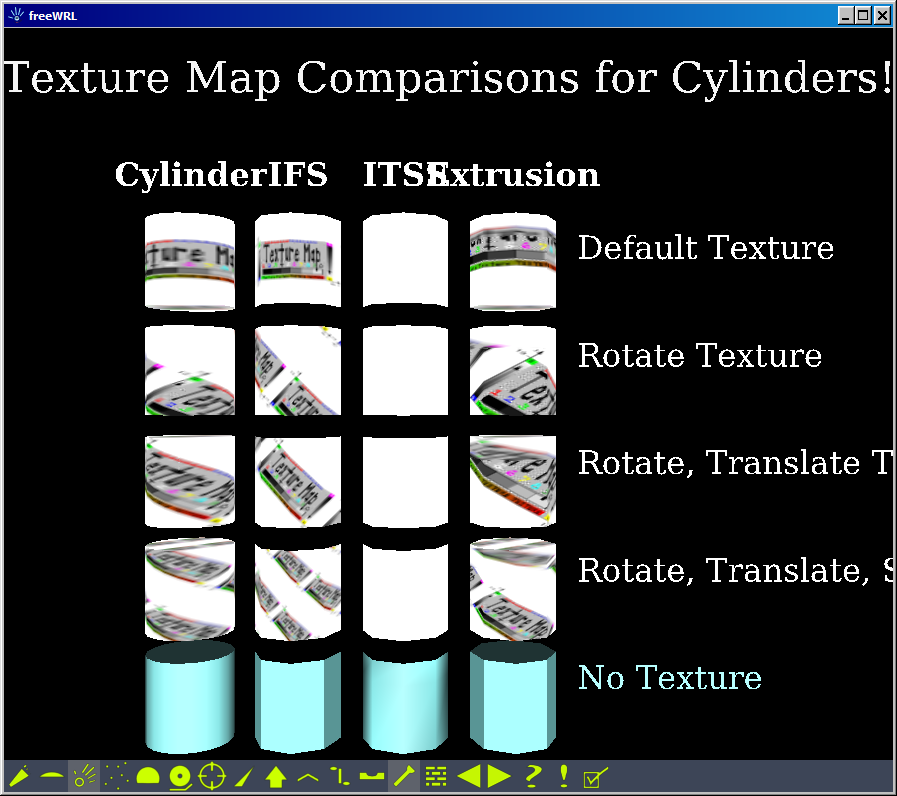

Image	TextureMapComparisonsCylinderFreeWrl.png

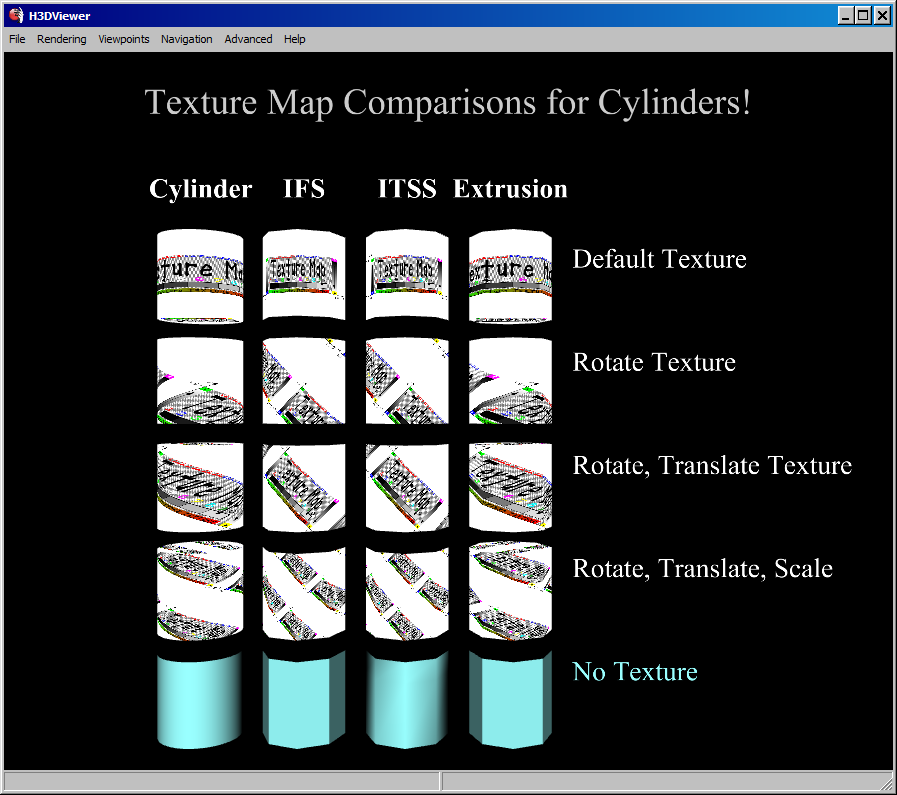

Image	TextureMapComparisonsCylinderH3DViewer.png

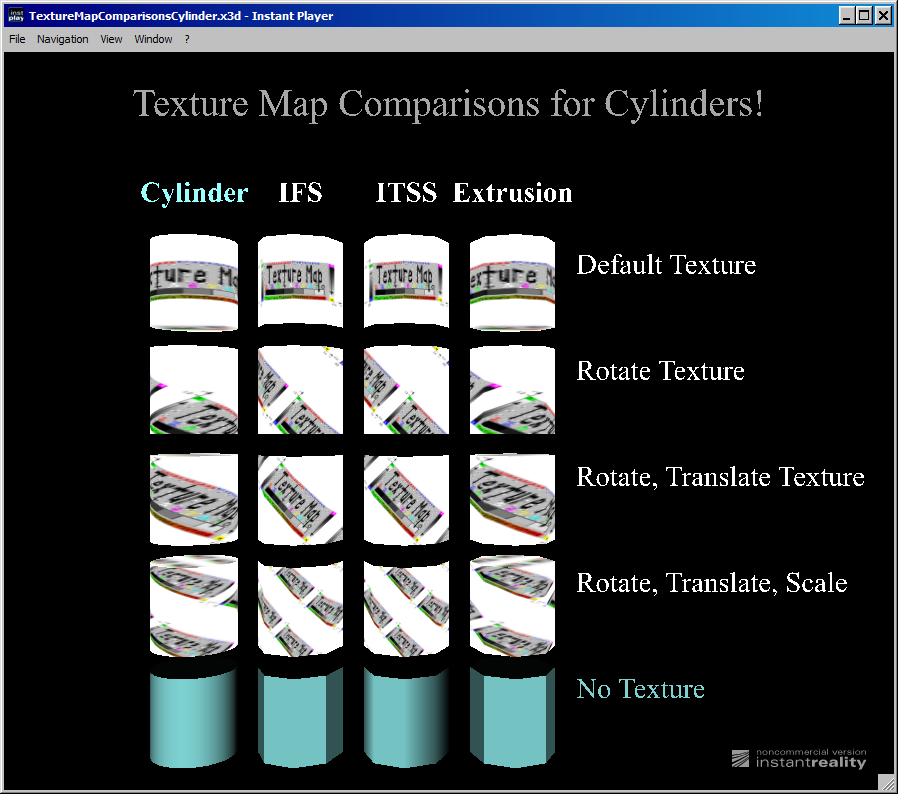

Image	TextureMapComparisonsCylinderInstantReality.png

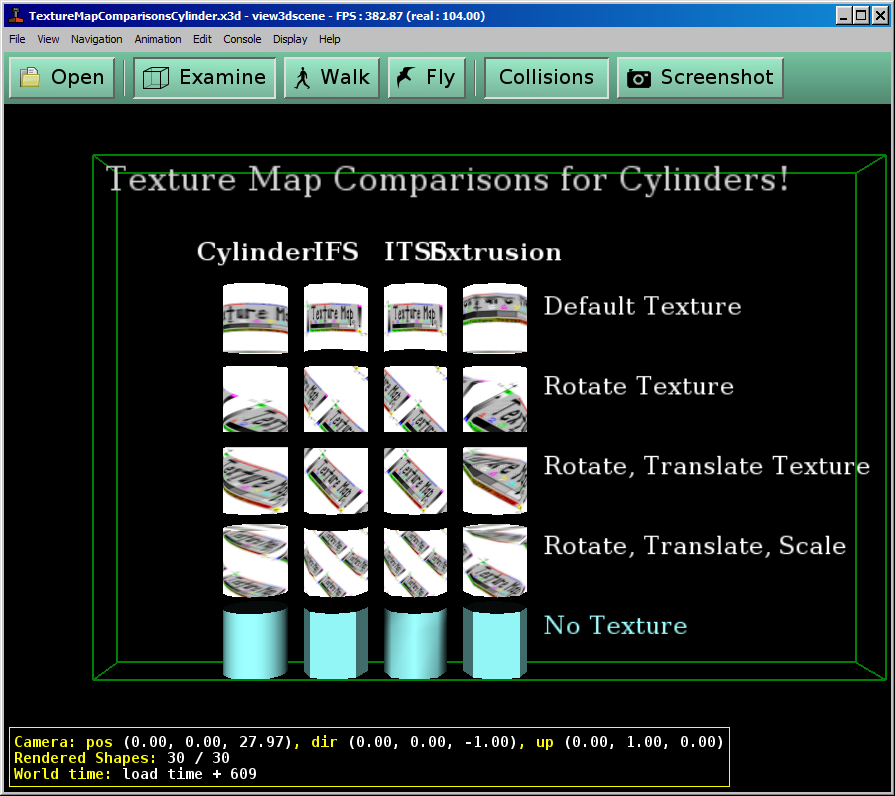

Image	TextureMapComparisonsCylinderView3dScene.png
Image	TextureMapComparisonsCylinderXj3D.png
reference	TextureMapComparisonsRectangle.x3d
reference	https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#Images
specificationSection	X3D Abstract Specification, 18.2.3 Texture coordinates
specificationUrl	https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texturing.html#Texturecoordinates
Image	https://www.web3d.org/documents/specifications/19775-1/V3.3/Images/ImageTexture.gif
identifier	https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/TextureMapping/TextureMapComparisonsCylinder.x3d
generator	X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license	../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
TextureMapComparisonsCylinder()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

TextureMapComparisonsCylinder

public TextureMapComparisonsCylinder()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

TextureMapComparisonsCylinder model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
