element BooleanTrigger

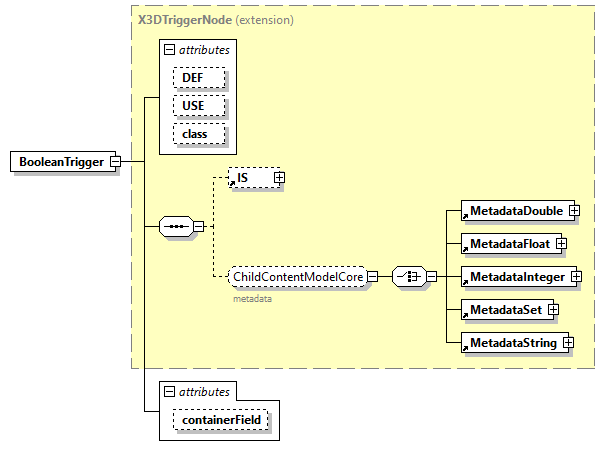

diagram
type	extension of X3DTriggerNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  ChildContentModelInteractive
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="set_triggerTime" type="SFTime" fixed="inputOnlyField"/> <xs:attribute name="triggerTrue" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="EventUtilities"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="BooleanTrigger">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="set_triggerTime" type="SFTime" fixed="inputOnlyField"/>       <xs:attribute name="triggerTrue" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="EventUtilities"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/utils.html#BooleanTrigger"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DTriggerNode">         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute BooleanTrigger/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
